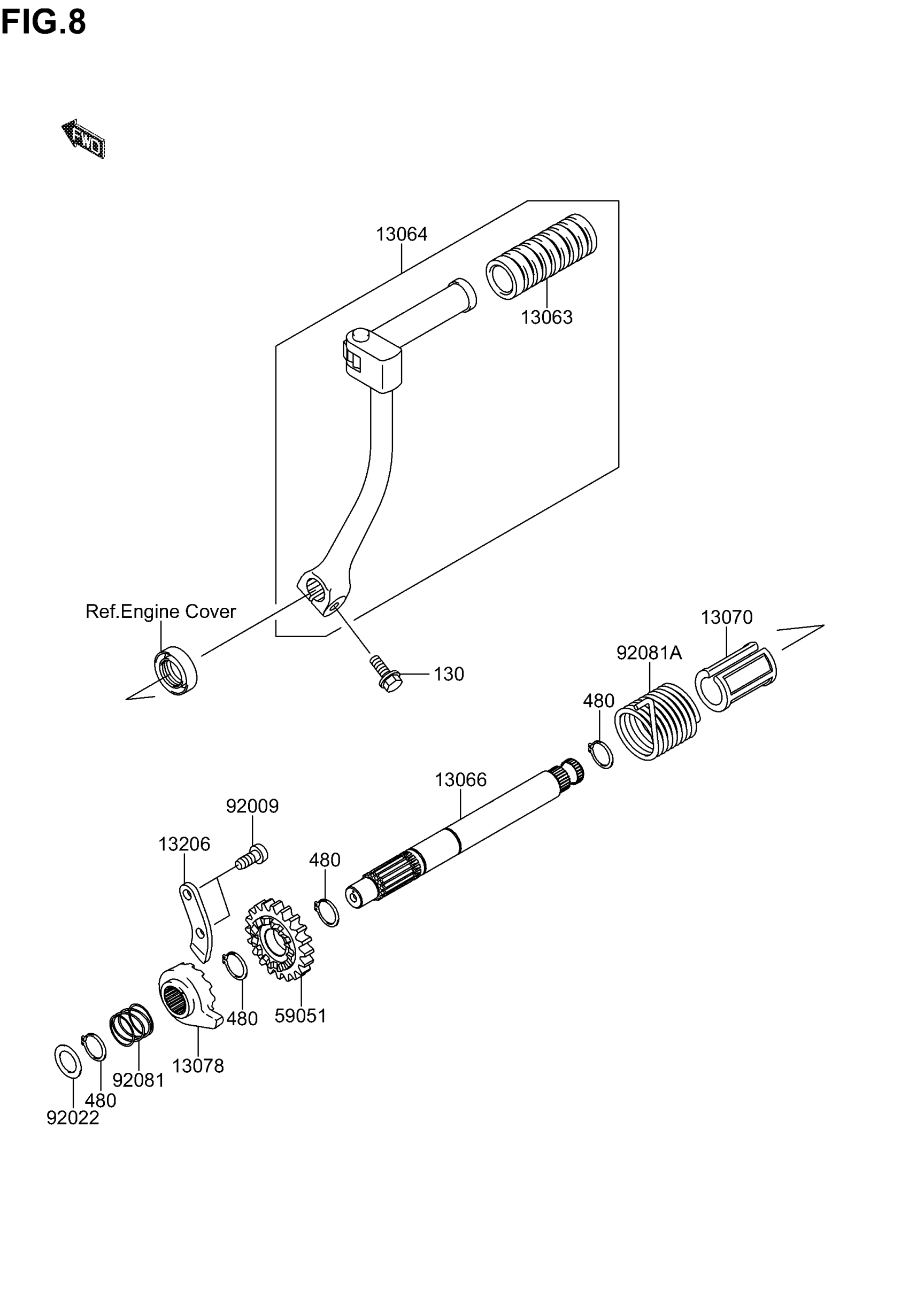

Suzuki DR-Z110 (2005) KICKSTARTER MECHANISM Diagram

#

Description

Price

13063

DAMPER,PEDAL

KK130-63002

$3.87

13064

LEVER-ASSY-KICK

K1306-40012

Unavailable

13066

SHAFT-KICK

K1306-61108

Unavailable

13070

GUIDE,KICK SHAFT

K1307-01035

Unavailable

13078

RATCHET

K1307-81069

Unavailable

13206

GUIDE-KICK

K1320-61006

Unavailable

59051

GEAR-SPUR,KICK STARTER,22T

K5905-11404

$46.53

92009

SCREW,TAPPING

K9200-91104

Unavailable

92022

WASHER,13.2X20X0.5

K9202-21224

Unavailable

92081

SPRING,RATCHET

KK920-81122

Unavailable

92081A

SPRING,KICK STARTER

K9208-11276

Unavailable

130

BOLT-FLANGED

KK130-P0622

Unavailable

480

CIRCLIP-TYPE-C,16MM

KK480-J1600

$1.49
