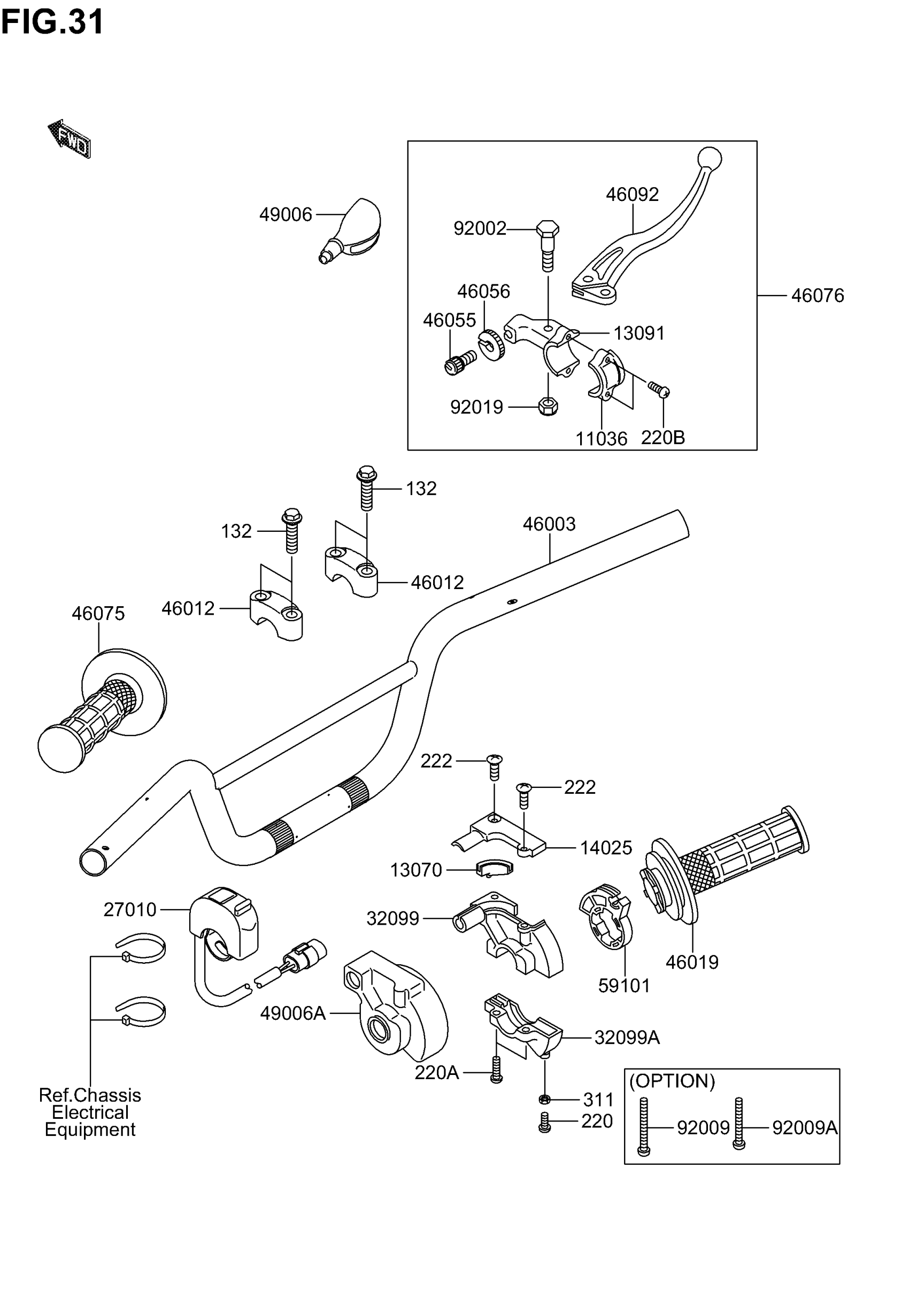

Suzuki DR-Z110 (2005) HANDLEBAR Diagram

BRACKET-A,LEVER This part replaces K1103-61297.

K1105-60036

Unavailable

GUIDE,THROTTLE PEACE

K1307-01117

Unavailable

HOLDER,BRAKE LE This part replaces K1309-11135.

K1328-00354

$18.80

COVER,THROTTLE CASE UPP

K1402-51646

$7.00

SWITCH,ENGINE STOP

K2701-01332

Unavailable

CASE,THROTTLE,U This part replaces K3209-91036.

K3209-90037

$24.78

CASE,THROTTLE,LWR

K3209-91220

Unavailable

HANDLE,BAR This part replaces KK460-03002-3CE.

KK460-03005-6CE

Unavailable

HOLDER-HANDLE,UPP

K4601-21191

Unavailable

GRIP-ASSY,THROTTLE

K4601-91054

$34.58

SCREW,CABLE ADJUST,7MM

KK460-55010

Unavailable

NUT,CABLE ADJUST

KK460-56006

$6.97

GRIP,LH

K4607-51024

Unavailable

LEVER-ASSY-GRIP This part replaces K4607-61107.

K4607-60073

Unavailable

LEVER,GRIP,BRAK This part replaces K4609-21048.

K4609-20590

$16.30

BOOT,LEVER HOLDER

K4900-61017

$15.67

BOOT,THROTTLE CASE

K4900-61097

$14.78

REEL,THROTTLE

K5910-11104

Unavailable

BOLT,LEVER SET

K9200-21150

Unavailable

SCREW,5X47 | OPTION

K9200-91989

Unavailable

SCREW,5X42 | OPTION

K9200-91998

Unavailable

NUT,LOCK,6MM

KK920-19008

$3.22

BOLT-FLANGED-SM This part replaces KK132-G0830.

K132B-A0830

Unavailable

SCREW-PAN-CROS, This part replaces KK220-C0512.

K220A-B0512

Unavailable

SCREW-PAN+- This part replaces KK220-C0518.

K220A-B0518

$1.49

SCREW-PAN-CROS This part replaces KK220-F0514.

K220A-B0514

Unavailable

SCREW-CSK-RD-CROS

KK222-E0412

Unavailable

NUT,HEX This part replaces KK311-C0500.

K311A-B0500

$1.49
