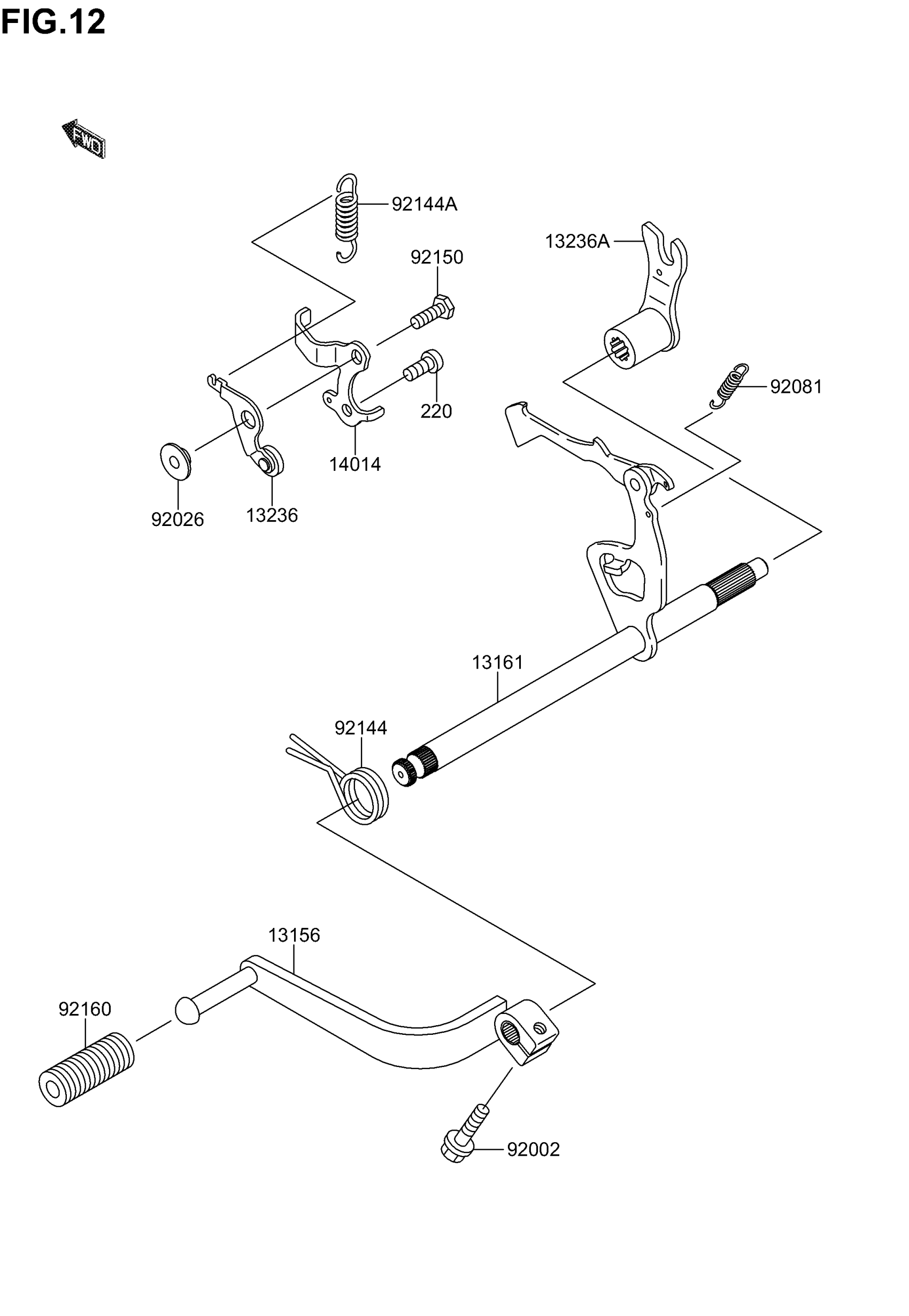

Suzuki DR-Z110 (2005) GEAR CHANGE MECHANISM Diagram

#

Description

Price

13156

LEVER-CHANGE,PEDAL

K1315-60039

$60.77

13161

LEVER-COMP-CHANGE SHAFT

K1316-10019

$81.43

13236

LEVER-COMP,POSITION

K1323-61256

Unavailable

13236A

LEVER-COMP This part replaces K1323-61288.

K1323-60717

Unavailable

14014

PLATE-POSITION

K1401-40010

Unavailable

92002

BOLT,6X20

K9200-21237

Unavailable

92026

SPACER

K9202-61217

Unavailable

92081

SPRING,CHANGE LEVER

KK920-81076

Unavailable

92144

SPRING,CHANGE SHAFT RETURN

K9214-41107

Unavailable

92144A

SPRING

K9214-41590

Unavailable

92150

BOLT,6X14

K9215-01626

Unavailable

92160

DAMPER,CHANGE P This part replaces K9216-01036.

K9216-12382

$3.29

220

SCREW-PAN-CROS, This part replaces KK220-B0614.

K220A-A0614

Unavailable
