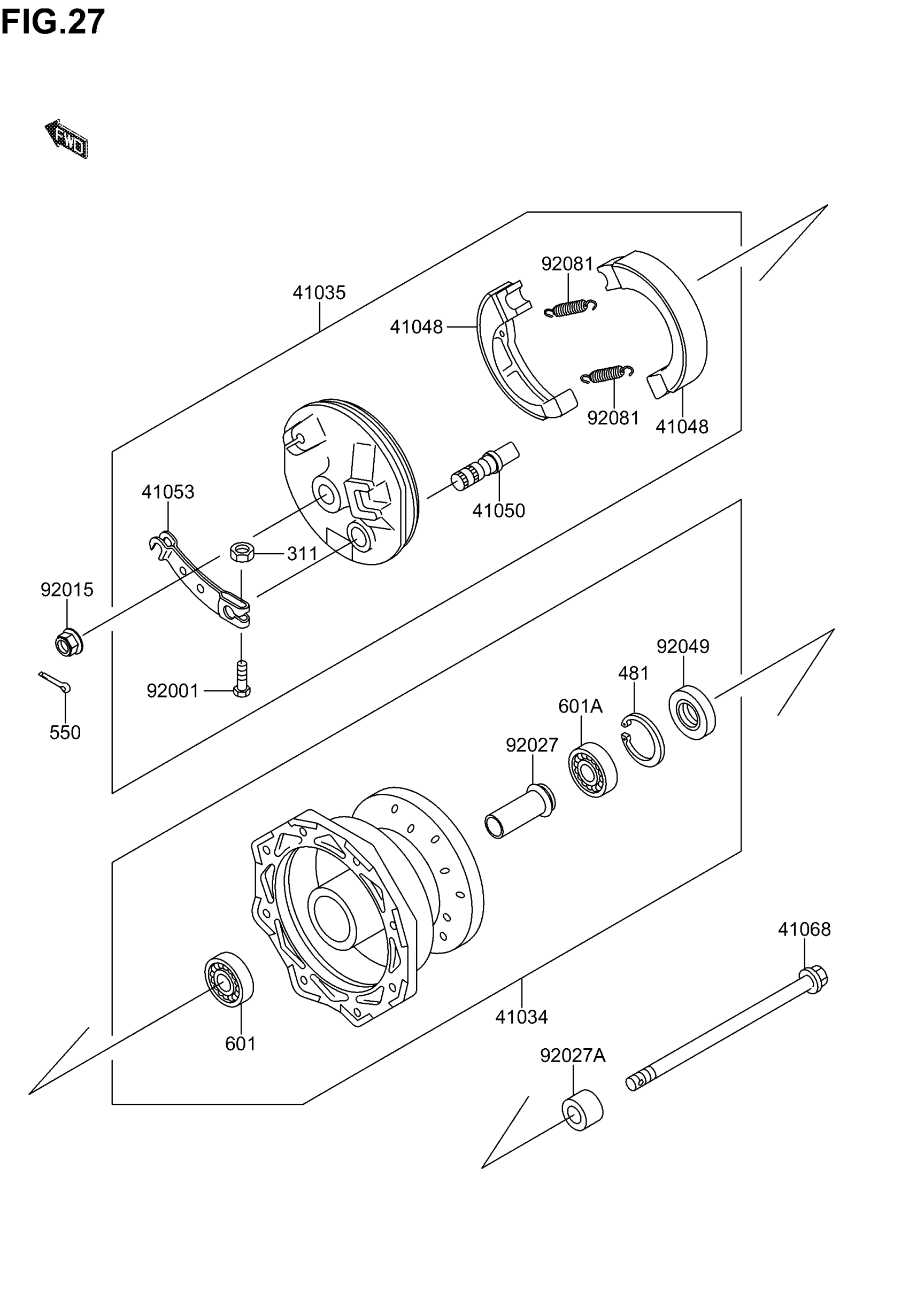

Suzuki DR-Z110 (2005) FRONT HUB Diagram

#

Description

Price

41034

DRUM-ASSY,FRONT BRAKE

K4103-41343

Unavailable

41035

PANEL-ASSY-BRAKE,FR

K4103-51543

Unavailable

41048

SHOE-BRAKE

K4104-81083

$23.75

41050

CAM-BRAKE

K4105-01031

Unavailable

41053

LEVER-BRAKE CAM,FR

K4105-31027

Unavailable

41068

AXLE,FR

K4106-80015

Unavailable

92001

BOLT,5X25

K9200-11695

Unavailable

92015

NUT,LOCK,FLANGE This part replaces K9201-51335.

K9221-00276

$1.78

92027

COLLAR,FRONT DRUM,L=54

K9202-71470

Unavailable

92027A

COLLAR,FRONT AXLE,L=14.5

K9202-71472

Unavailable

92049

SEAL-OIL,DD20357

K9204-91095

Unavailable

92081

SPRING,BRAKE SHOE

K9208-11564

Unavailable

311

NUT-HEX This part replaces KK311-H0500.

K311B-A0500

Unavailable

481

CIRCLIP-TYPE-C,35MM

KK481-J3500

Unavailable

550

PIN-COTTER,2.5X20

KK550-S2520

Unavailable

601

BEARING-BALL,#6200UUC3

KKK60-1B620-0UU

Unavailable

601A

BEARING-BALL,#6300UUC3

KKK60-1B630-0UU

Unavailable
