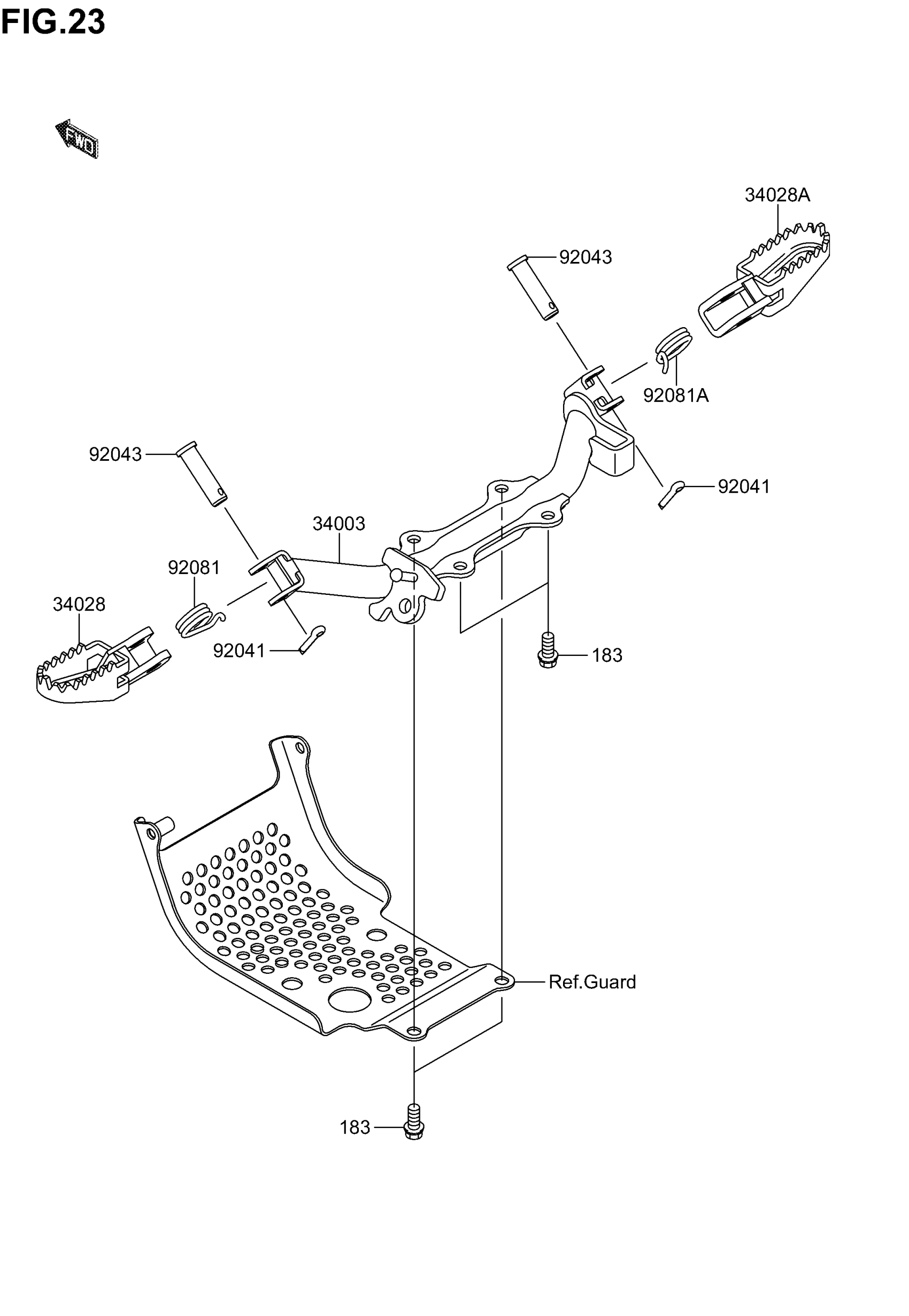

Suzuki DR-Z110 (2005) FOOTREST Diagram

#

Description

Price

34003

HOLDER STEP,M.F This part replaces K3400-31513-466.

K3400-30048-466

Unavailable

34028

STEP,LH

K3402-81237

Unavailable

34028A

STEP,RH

K3402-81238

Unavailable

92041

COTTER,2.5X15

K9204-11051

Unavailable

92043

PIN,8X32

K9204-31143

Unavailable

92081

SPRING,FOOTREST,LH

K9208-11491

Unavailable

92081A

SPRING,FOOTREST,RH

K9208-11543

Unavailable

183

BOLT-UPSET-WS-S This part replaces KK183-H0816.

K183B-A0816

Unavailable
