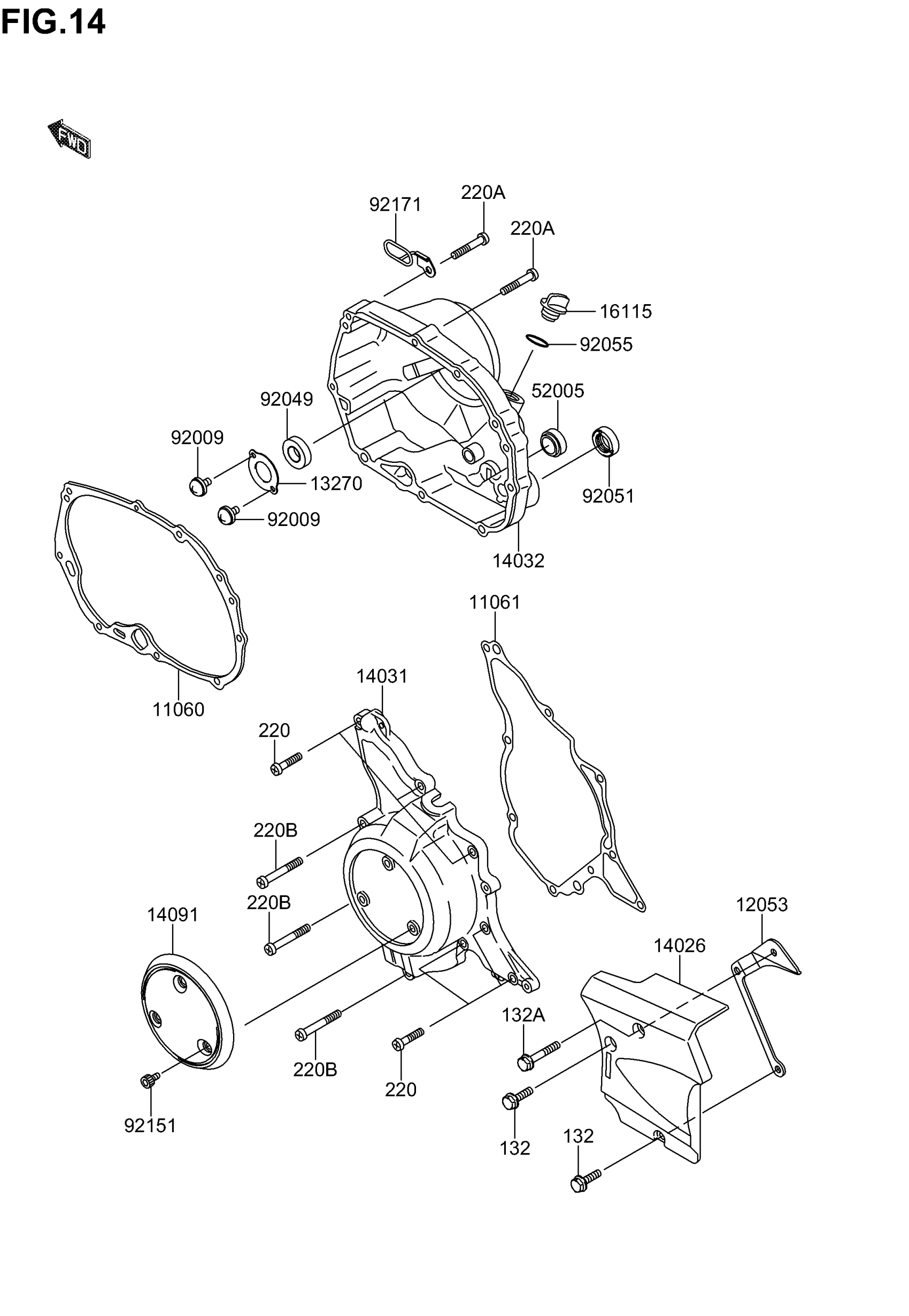

Suzuki DR-Z110 (2005) ENGINE COVER Diagram

GASKET,CLUTCH C This part replaces K1106-01797.

K1106-10289

$5.63

GASKET,GENERATOR

K1106-10125

$4.63

GUIDE-CHAIN,TENSION

K1205-31467

Unavailable

PLATE

K1327-01800

Unavailable

COVER-CHAIN

K1402-61285

$19.52

COVER-GENERATOR

K1403-11342

Unavailable

COVER-CLUTCH,BLACK

KK140-32152-910

Unavailable

COVER,HEAT

K1409-11522

Unavailable

CAP-OIL FILLER

K1611-51068

Unavailable

GAUGE,OIL LEVEL This part replaces K5200-51055.

K5200-50019

$12.07

SCREW

K9200-91745

Unavailable

SEAL-OIL,AC0387E0

K9204-91595

$2.48

SEAL-OIL,TB16267

KK920-51003

$6.88

RING-O,31.7X2.4

KK920-55049

$2.96

BOLT,SOCKET,0.8 This part replaces K9215-11212.

K9215-40789

Unavailable

CLAMP,DRAIN TUBE

K9217-11124

Unavailable

BOLT-FLANGED-SM This part replaces KK132-Y0620.

K132B-D0620

$1.70

BOLT-FLANGED-SM This part replaces KK132-Y0635.

K132B-D0635

Unavailable

SCREW-PAN-CROS This part replaces KK220-X0625.

K220A-D0625

Unavailable

SCREW-PAN-CROS This part replaces KK220-X0635.

K220A-D0635

$1.49

SCREW-PAN-CROS This part replaces KK220-X0645.

K220A-D0645

Unavailable
