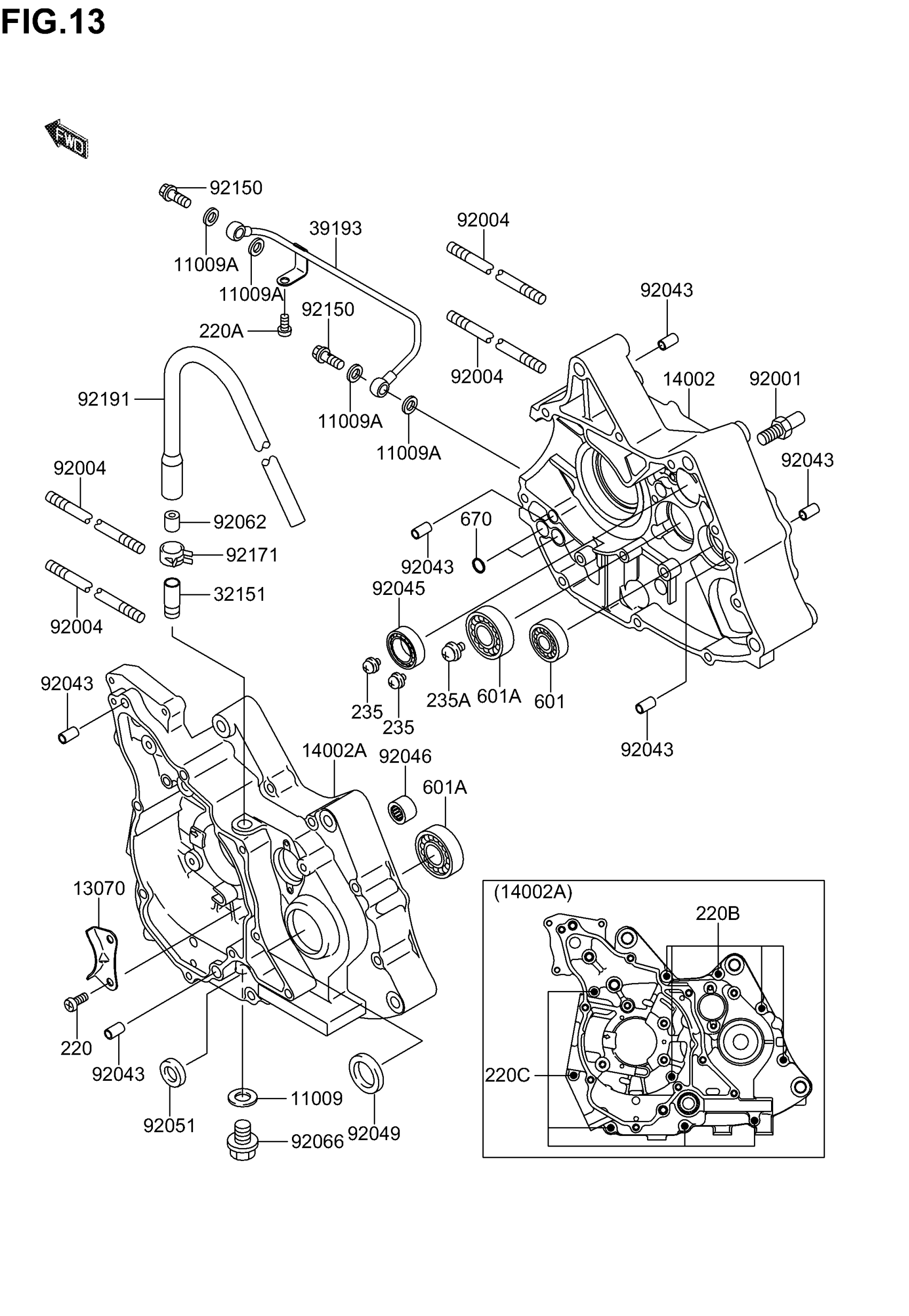

Suzuki DR-Z110 (2005) CRANKCASE Diagram

GASKET,DRAIN PL This part replaces K1100-91332.

K1106-10421

$5.70

GASKET,8.2X14X1.0

K1100-91344

$3.14

GUIDE

K1307-01319

Unavailable

CRANKCASE,RH

K1400-21971

Unavailable

CRANKCASE,LH This part replaces K1400-21973.

K1408-00106

Unavailable

PIPE

K3215-11961

Unavailable

PIPE-OIL

K3919-31042

Unavailable

BOLT,RETURN SPRING

K9200-11455

Unavailable

STUD,8X208

K9200-41281

Unavailable

PIN,6.2X8X14

K9204-31263

$1.78

BEARING-BALL,6804

K9204-51171

$31.87

BEARING-NEEDLE,HK1312

K9204-61148

Unavailable

SEAL-OIL,SC22325

K9204-91048

$6.88

SEAL-OIL,TB13225.5

KK920-51005

Unavailable

NOZZLE,5X11.5X12

K9206-21090

Unavailable

PLUG,OIL DRAIN,12X15

K9206-61174

$4.90

BOLT,BANJO,8X20

K9215-01556

Unavailable

CLAMP

K9217-11055

Unavailable

TUBE,BREATHER

K9219-11724

Unavailable

SCREW-PAN-CROS, This part replaces KK220-B0614.

K220A-A0614

Unavailable

NO DESCRIPTION AVAILABLE This part replaces KK220-X0612.

K220A-D0612

Unavailable

SCREW-PAN-CROS This part replaces KK220-X0650.

K220A-D0650

Unavailable

SCREW-PAN-CROS

KK220-X0675

Unavailable

SCREW-PAN-WP-CROS

KK235-B0510

Unavailable

SCREW-PAN-WP-CROS

KK235-B0614

Unavailable

BEARING-BALL

KK601-A6201

Unavailable

BEARING-BALL,#6203

KK601-A6203

$12.05

O RING,10MM

KK670-B1510

Unavailable
