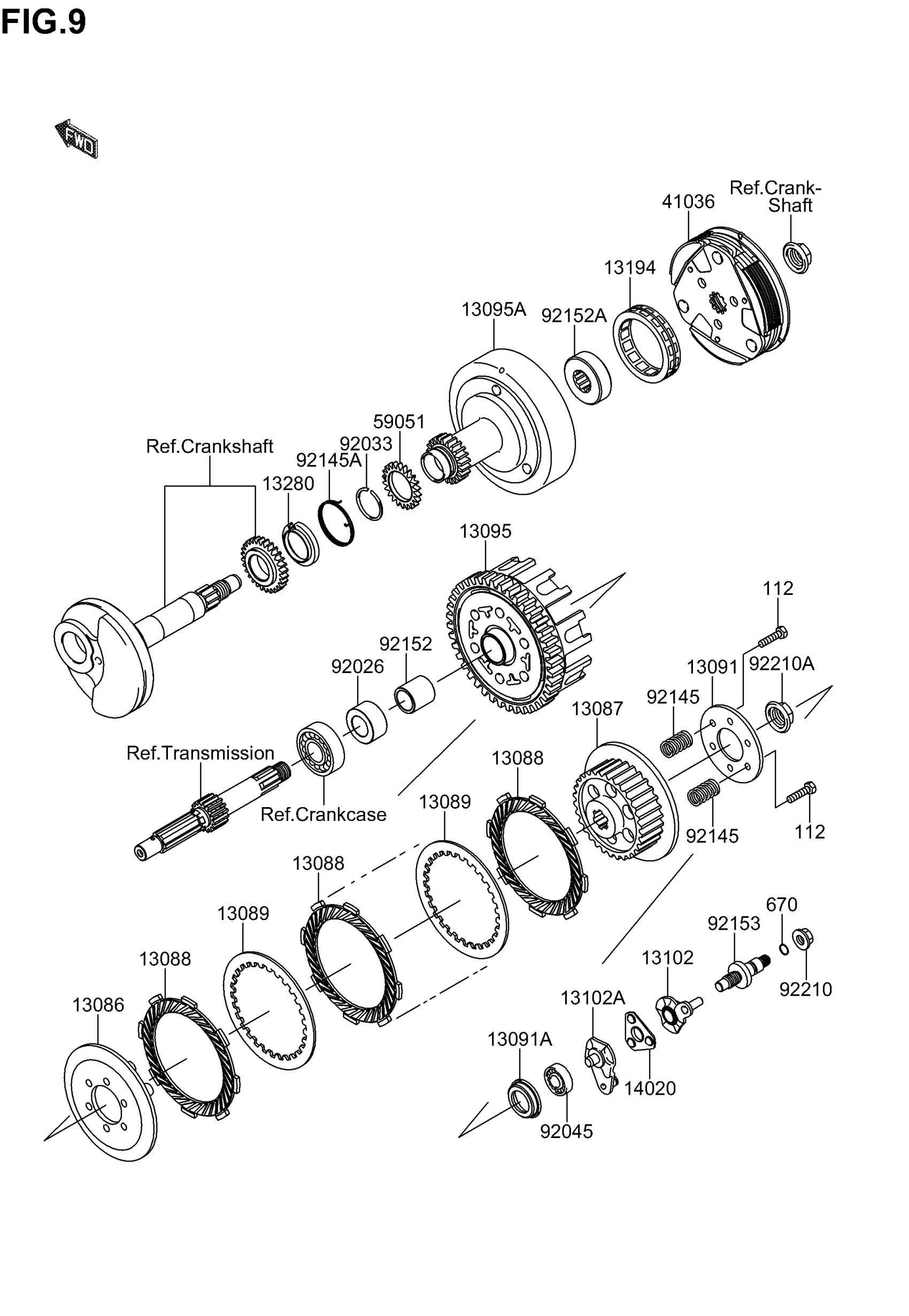

Suzuki DR-Z110 (2005) CLUTCH Diagram
#
Description
Price
13086
WHEEL-CLUTCH
K1308-61065
Unavailable
13087
HUB-CLUTCH
K1308-71151
Unavailable
13088
PLATE-FRICTION
K1308-81142
Unavailable
13089
PLATE-CLUTCH
K1308-91087
Unavailable
13091
HOLDER,CLUTCH
K1309-11782
Unavailable
13091A
HOLDER
K1309-11787
Unavailable
13095
HOUSING-COMP-CLUTCH
K1309-51403
Unavailable
13095A
NO DESCRIPTION AVAILABLE This part replaces K1309-51422.
K1309-50128
Unavailable
13102
RELEASE-COMP-CLUTCH
K1310-21135
Unavailable
13102A
RELEASE-COMP-CLUTCH
K1310-21136
Unavailable
13280
HOLDER,CLUTCH
K1328-01250
Unavailable
14020
RETAINER This part replaces K1402-01100.
K1402-00576
Unavailable
41036
HUB-ASSY,CLUTCH
K4103-61364
Unavailable
59051
GEAR-SPUR,CLUTCH,22T
K5905-11403
Unavailable
92026
SPACER
K9202-61605
Unavailable
92033
RING-SNAP,23.5MM
K9203-31065
Unavailable
92145
SPRING,CLUTCH HUB
K9214-51456
Unavailable
92145A
SPRING,CLUTCH HOLDER
K9214-51457
Unavailable
92152
COLLAR,17X22X22 This part replaces K9215-20113.
K9215-20393
Unavailable
92152A
COLLAR This part replaces K9215-21370.
K9215-20833
Unavailable
92153
BOLT,CLUTCH RELEASE
K9215-30525
Unavailable
92210
NUT,FLANGED,8MM
K9221-00004
Unavailable
92210A
NUT,14MM
K9221-01163
Unavailable
112
BOLT-UPSET This part replaces KK112-G0520.
K112B-A0520
Unavailable
670
O RING,8MM
KK670-B1508
Unavailable
