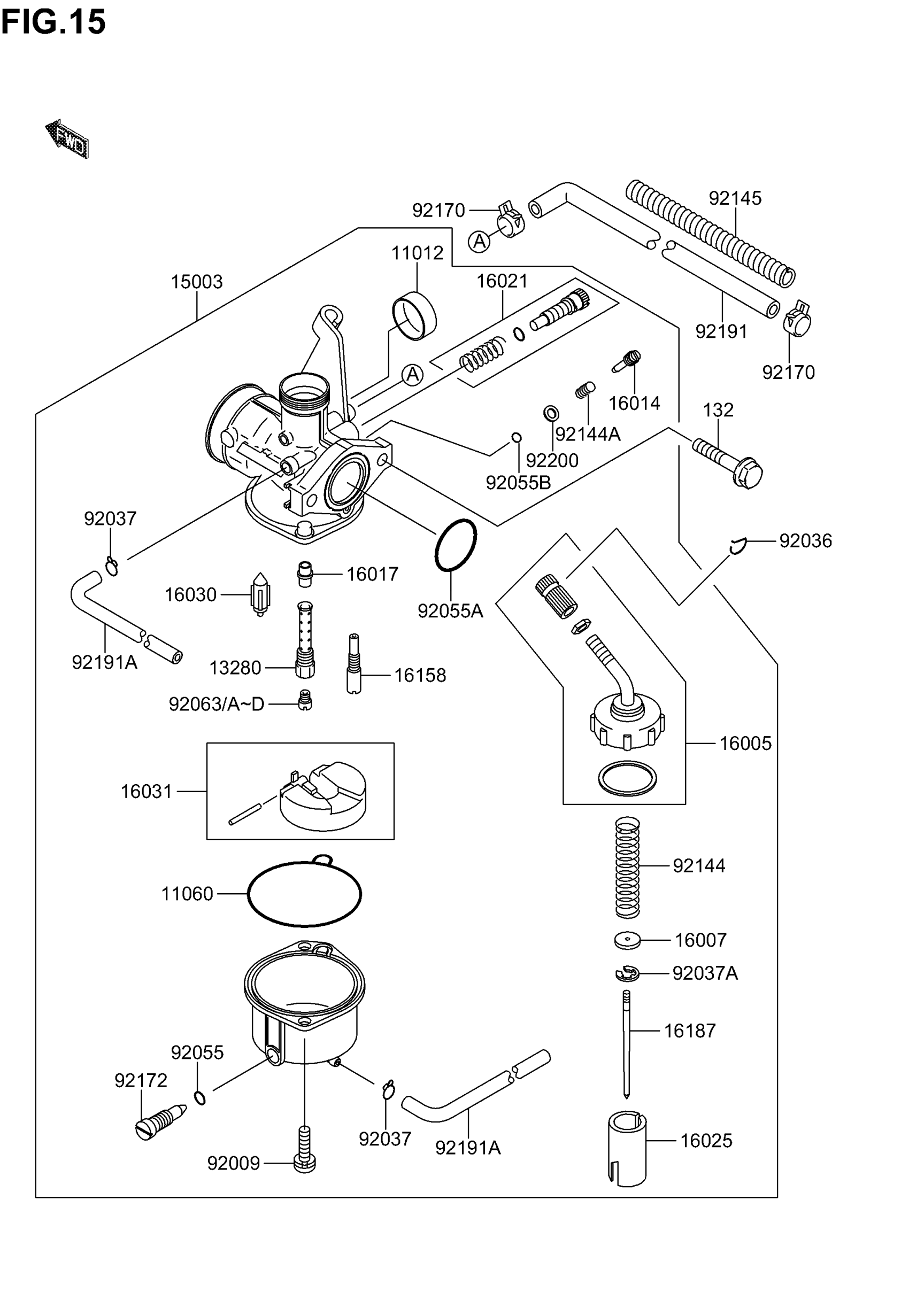

Suzuki DR-Z110 (2005) CARBURETOR Diagram

#

Description
Price

11012

CAP,CHOKE

K1101-21940

Unavailable

11060

GASKET,FLOAT CH This part replaces K1106-01700.

K1106-10874

$14.58

13280

HOLDER,NEEDLE JET

K1328-01092

Unavailable

15003

CARBURETOR-ASSY

K1500-31694

$218.30

16005

TOP-CHAMBER

K1600-51091

Unavailable

16007

SEAT-SPRING

K1600-71103

Unavailable

16014

SCREW-PILOT AIR

K1601-41093

Unavailable

16017

JET-NEEDLE

K1601-71434

Unavailable

16021

SCREW-THROTTLE STOP

K1602-11241

Unavailable

16025

VALVE-THROTTLE,CA3.0

K1602-51209

Unavailable

16030

VALVE,FLOAT This part replaces K1603-01082.

K1603-00009

$50.52

16031

FLOAT

K1603-11088

Unavailable

16158

JET-SLOW

K1615-81063

$12.08

16187

NEEDLE-JET,NCFA

K1618-71228

Unavailable

92009

SCREW

K9200-91750

Unavailable

92036

RING-SNAP

KK920-36018

$3.08

92037

CLAMP,TUBE

K9203-71142

Unavailable

92037A

CLAMP,JET NEEDLE

K9203-71401

Unavailable

92055

RING-O

K9205-51053

$3.75

92055A

RING-O

K9205-51541

$2.23

92055B

RING-O

K9205-51542

Unavailable

92063

JET-MAIN,#85 | OPTION

K9206-31326

Unavailable

92063A

JET-MAIN,#78 | OPTION

K9206-31393

Unavailable

92063B

JET-MAIN,#75 | OPTION

K9206-31395

Unavailable

92063C

JET-MAIN,#80

K9206-31396

Unavailable

92063D

JET-MAIN,#82 | OPTION

K9206-31397

Unavailable

92144

SPRING,THROTTLE

K9214-41875

Unavailable

92144A

SPRING This part replaces K9214-41876.

K9214-50961

Unavailable

92145

SPRING,HOSE PROTECTER

K9214-51481

Unavailable

92170

CLAMP

K9217-01872

$2.48

92172

SCREW,DRAIN

K9217-21057

Unavailable

92191

TUBE,FUEL

K9219-11700

$12.30

92191A

TUBE,3.5X6.5X418

K9219-11735

Unavailable

92200

WASHER

K9220-01270

Unavailable

132

BOLT-FLANGED-SM This part replaces KK132-Y0630.

K132B-D0630

$1.97
