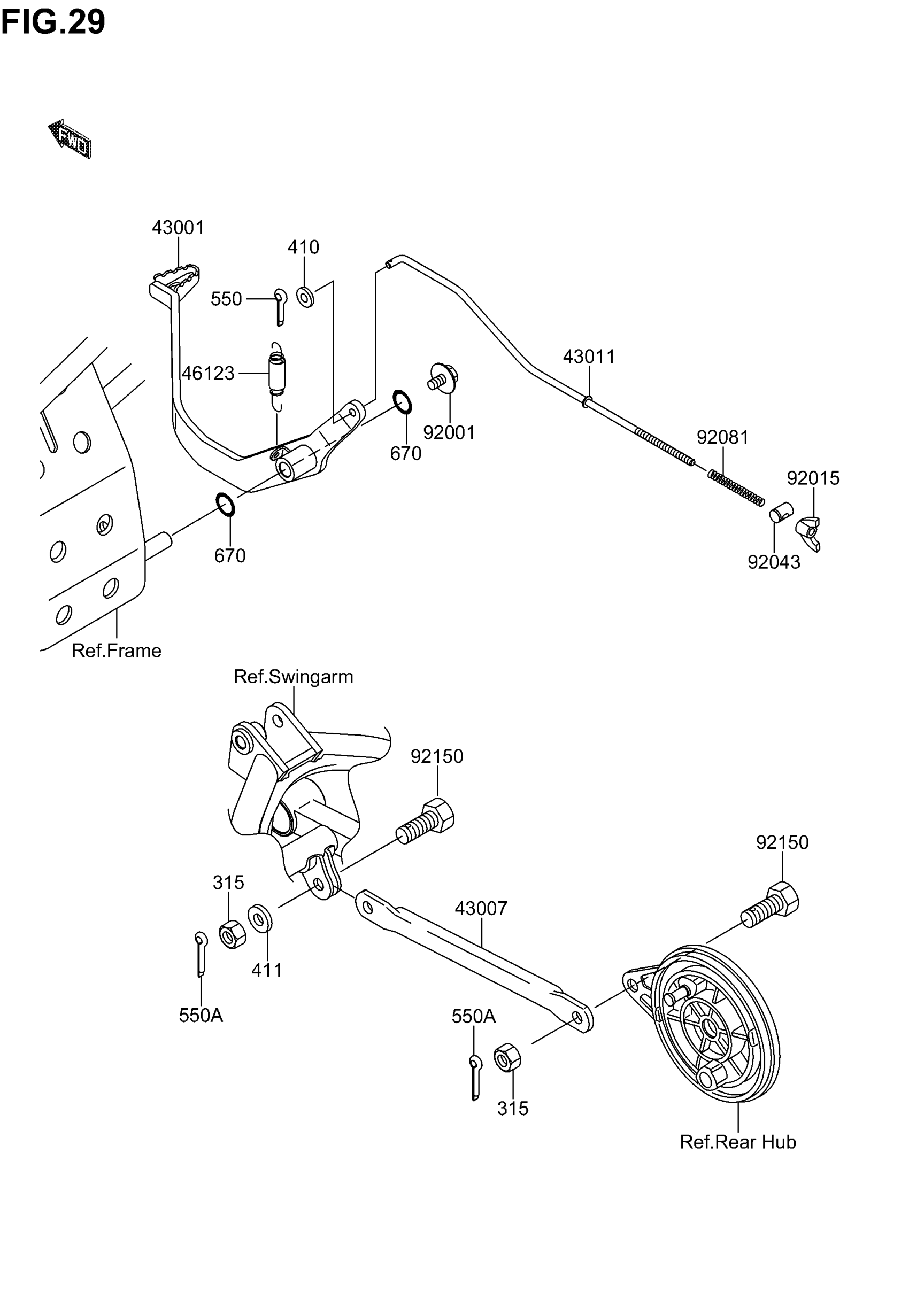

Suzuki DR-Z110 (2005) BRAKE PEDAL Diagram

LEVER-BRAKE,PEDAL

K4300-11445

$58.77

ROD-TORQUE

K4300-71203

Unavailable

ROD-BRAKE

K4301-11186

$17.27

SPRING-COMP,BRAKE PEDAL RETURN

K4612-31060

$5.00

BOLT,FLANGED,6X10

K9200-11034

$8.57

NUT,WING,6MM

K9201-54004

$4.82

PIN,BRAKE ROD This part replaces KK920-43039.

K9204-30147

$4.57

SPRING,BRAKE ROD

K9208-11688

$3.62

BOLT,10X25

K9215-01873

$4.12

NUT-HEX-FINE,10 This part replaces KK315-G1000.

K315B-A1000

$2.08

WASHER This part replaces KK410-B0600.

K410A-A0600

$1.57

NO DESCRIPTION AVAILABLE This part replaces KK411-B1000.

K411A-A1000

Unavailable

PIN-COTTER,2.0X This part replaces KK550-D2015.

K550A-A2015

$1.49

PIN-COTTER,2.0X20

KK550-D2020

Unavailable

O RING,12MM

KK670-B2012

$3.08
