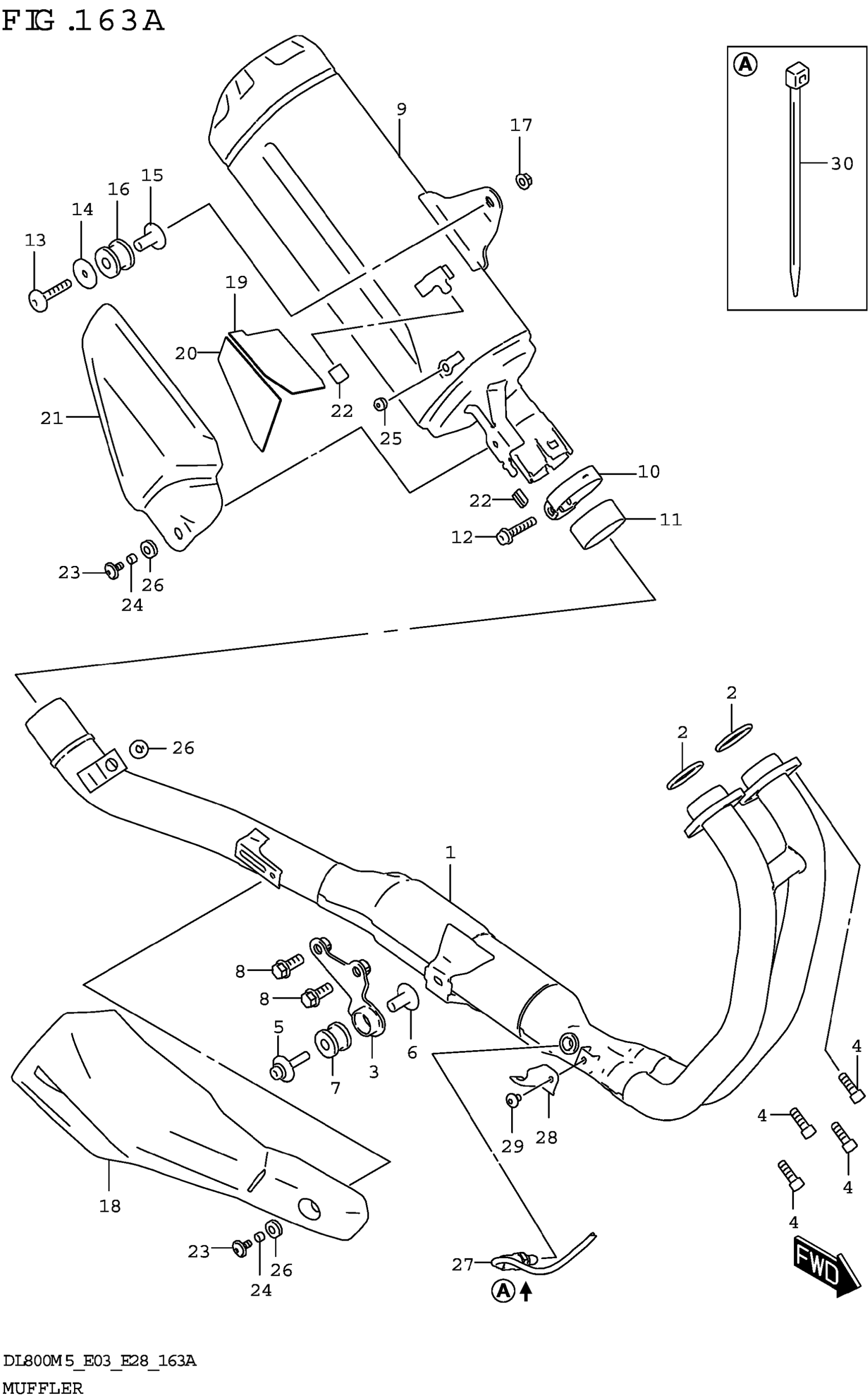

Suzuki DL800RQM5 (2025) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-25LH0

$1,727.28

2

.GASKET,EXHAUST PIPE

14181-04K00

$7.59

3

BRACKET,EXH SPRT

14770-25LG0

$26.27

4

BOLT (8X25)

09106-08178

$2.97

5

BOLT

09116-08176

$7.90

6

SPACER (8.6X12X24.2)

09180-08152

$5.26

7

CUSHION (12X30X24)

09320-12077

$10.78

8

BOLT

01550-1025B

$4.45

9

BODY,MUFFLER

14310-25LG0

$676.03

10

CLAMP,MUFFLER CONNECTOR

14459-47H00

$27.51

11

CONNECTOR,MUFFLER

14771-24F10

$34.65

12

WASHER (8.5X33X1.6)

09160-08162

$2.05

13

BOLT (8X45)

09106-08195

$6.72

14

BOLT (8X40)

09106-08162

$5.17

15

SPACER (8.6X12X24.2)

09180-08152

$5.26

16

CUSHION

09320-12049

$9.63

17

NUT

08316-1008B

$2.65

18

COVER,MUFFLER FR

14761-25LG0

$39.97

19

SHIELD,MUF COV HEAT

14765-25LG0

$3.77

20

SHIELD,MUF COV FR HEAT NO.2

14766-25LG0

$4.15

21

COVER,MUFFLER

14780-25LG0

$125.03

22

GROMMET

14795-10FA0

$5.26

23

SCREW

09139-06240

$3.42

24

SPACER (6.5X9X5.7)

09180-06256

$2.10

25

CUSHION (4X12X8)

09320-04013

$2.00

26

CUSHION (8.4X18X6)

09320-08066

$7.44

27

SENSOR,OXYGEN

18213-25L40

$237.02

28

COVER,OXYGEN SENSOR

14183-25L00

$20.30

29

SCREW (6X10)

09139-06122

$2.80

30

CLAMP (L:145)

09407-14407

$2.80
