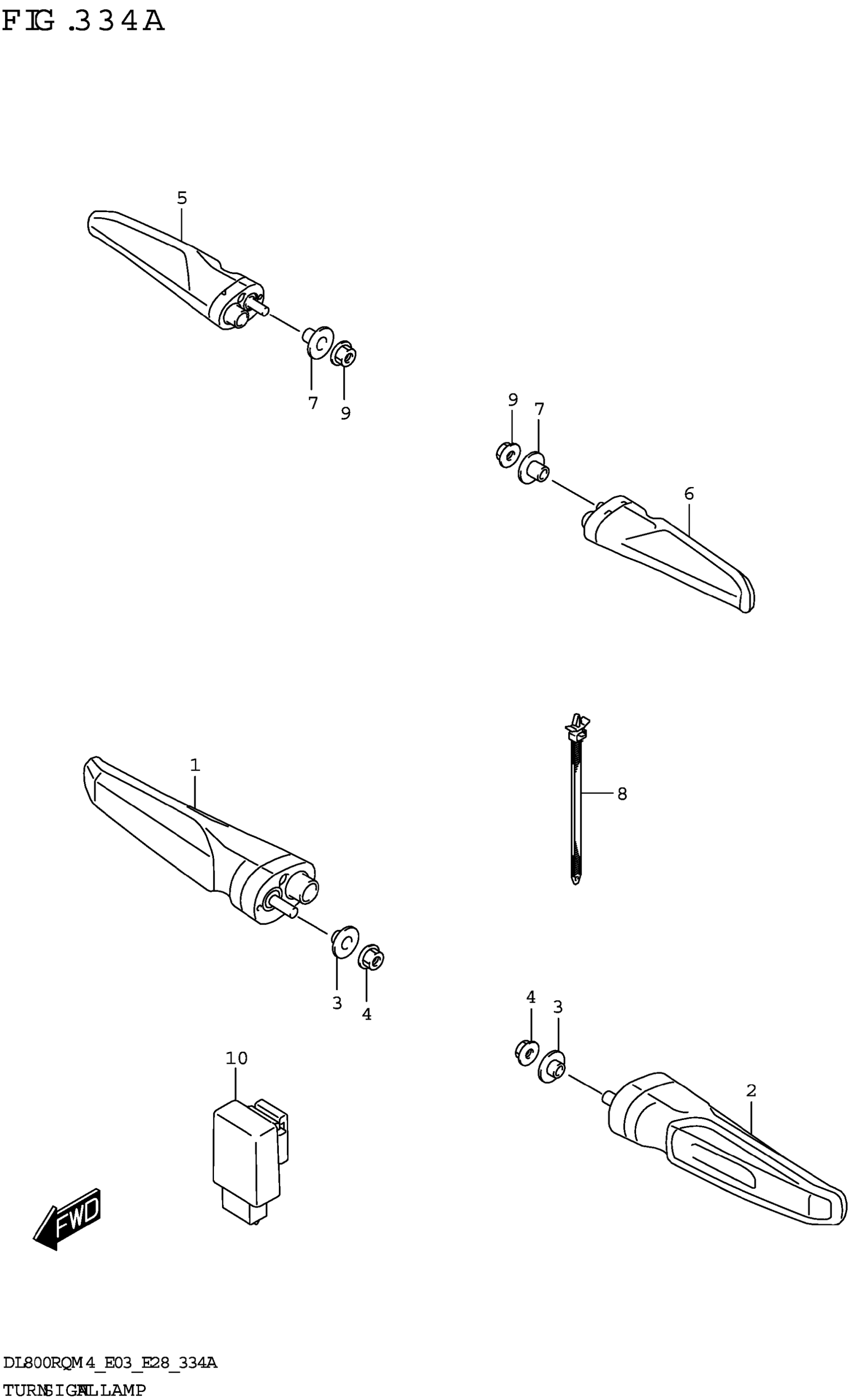

Suzuki DL800RQM4 (2024) TURNSIGNAL LAMP Diagram

#

Description

Price

1

LAMP ASSY,FRONT TURNSIGNAL,R This part replaces 35601-06LD0.

35601-06LD1

$170.67

2

LAMP ASSY,FRONT TURNSIGNAL,L

35602-06LD0

$160.30

3

WASHER

09169-06100

$1.53

4

NUT (6X12)

08316-1006A

$2.19

5

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LE0

$141.23

6

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LE0

$141.23

7

WASHER

09169-06100

$1.53

8

CLAMP (L:90)

09407-11402

$1.81

9

NUT (6X12)

08316-1006A

$2.19

10

RELAY ASSY,TURNSIGNAL This part replaces 38610-06L00.

38610-06L01

$81.55
