Description

Price

1

WHEEL,REAR (BLACK)

64111-25L10-019

$584.90

2

SPACER,RR WHEEL BEARING This part replaces 64731-44G10.

64731-44G00

$51.33

3

.SEAL,OIL (32X52X7)

09285-32004

$7.98

4

ABSORBER,RR HUB SHOCK

64651-47H10

$25.52

5

RING,SPEED SENSOR RR (50T)

64162-04K00

$30.17

6

BEARING

08123-6205B

$25.93

7

BOLT

07130-0512A

$2.19

8

TIRE,REAR (150/70R17M/C 69V)

65110-25L20

$280.30

9

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

10

AXLE,REAR

64711-25L00

$75.23

11

NUT

64721-13K00

$12.61

12

SPACER,FR AXLE,R

54751-41G10

$19.66

13

SPACER,RR AXLE,L

64751-44G00

$35.17

14

RETAINER,RR SPROCKET DRUM

64733-44G00

$29.15

15

WASHER,REAR AXLE

64723-25L00

$8.03

16

DRUM,RR SPROCKET

64610-47H00

$313.78

17

BEARING (32X65X17)

09262-32024

$39.40

18

SEAL,OIL (39X65X7)

09285-39001

$10.62

19

SPROCKET,REAR

64511-25L20

$97.12

20

NUT

08319-3110A

$2.73

21

DISC,REAR BRAKE

69211-06L10

$146.22

22

BOLT (8X21)

09106-08160

$3.57

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

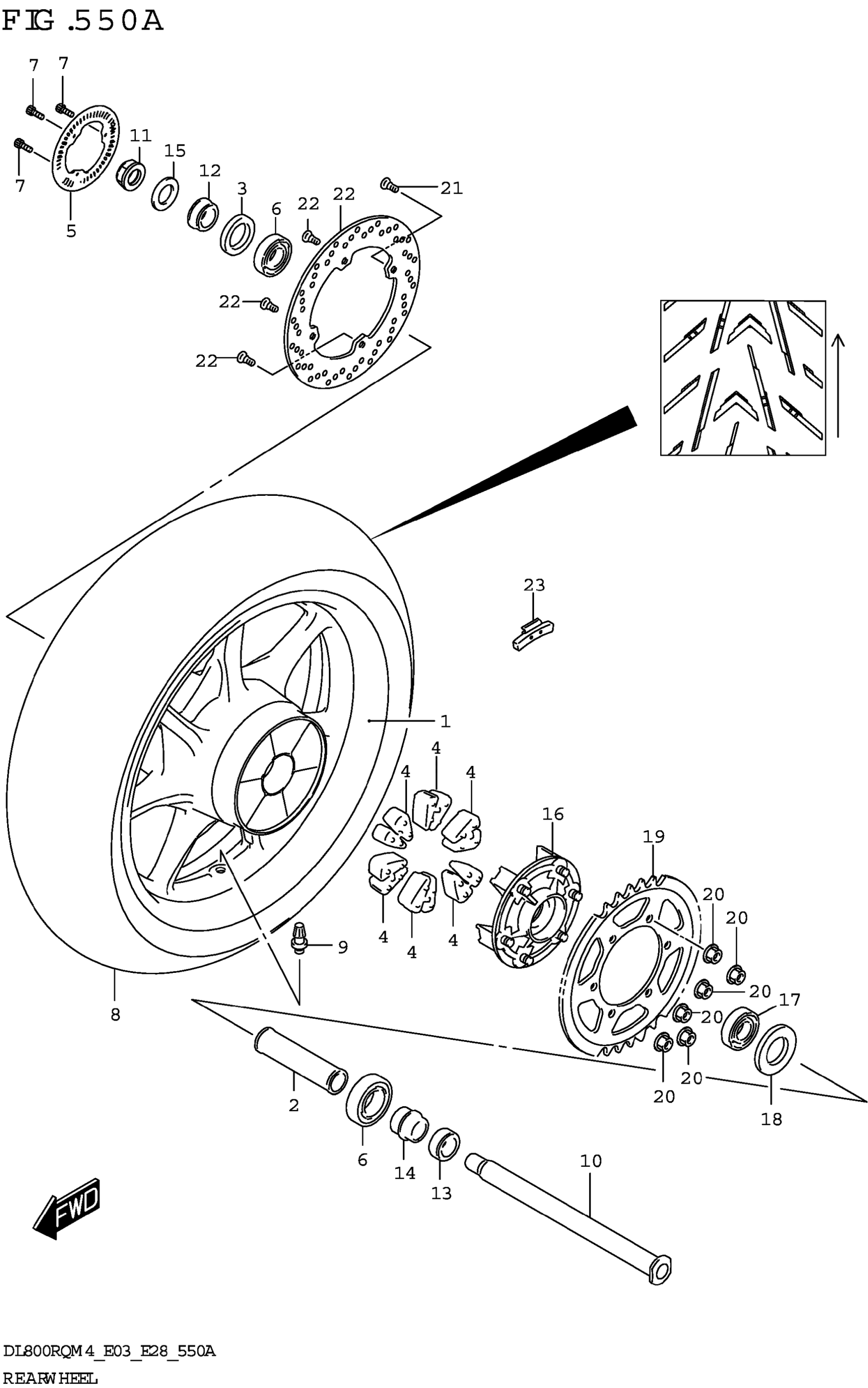

Suzuki DL800RQM4 (2024) REAR WHEEL Diagram
