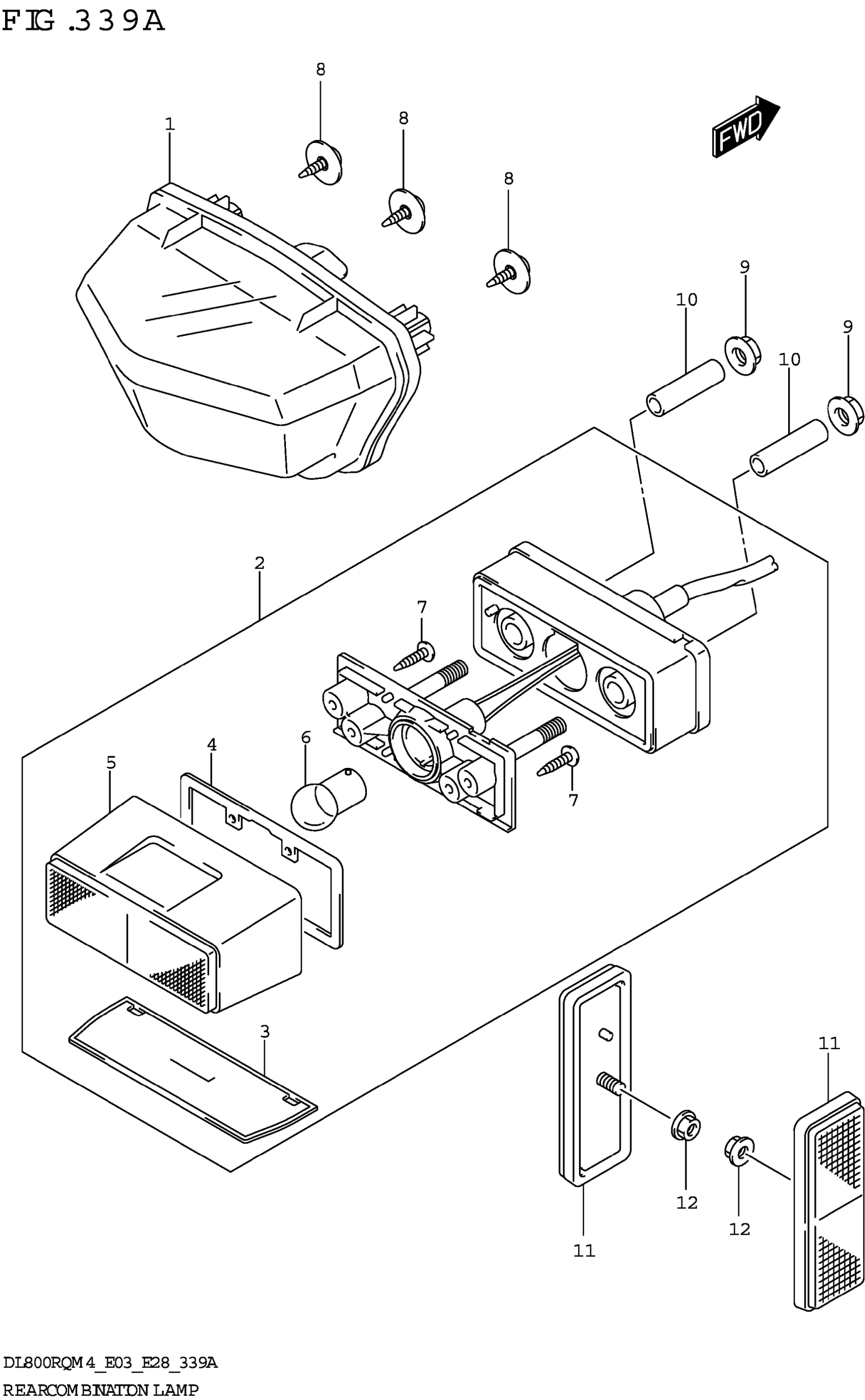

Suzuki DL800RQM4 (2024) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-31JA0

$217.90

2

LAMP ASSY,LICENSE

35910-41G70

$60.20

3

.LENS,LICENSE LAMP

35912-41G01

$14.98

4

.GASKET

35913-41G00

$16.07

5

.COVER,LICENSE LAMP

35917-41G00

$39.85

6

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

7

.SCREW

03211-0416A

$1.43

8

SCREW (5X15)

09136-05062

$2.19

9

NUT (M6)

09159-06096

$3.42

10

SPACER (6.5X9X33.3)

09180-06278

$4.92

11

REFLECTOR ASSY,RR

35970-07F01

$19.11

12

NUT

08319-3105A

$2.47
