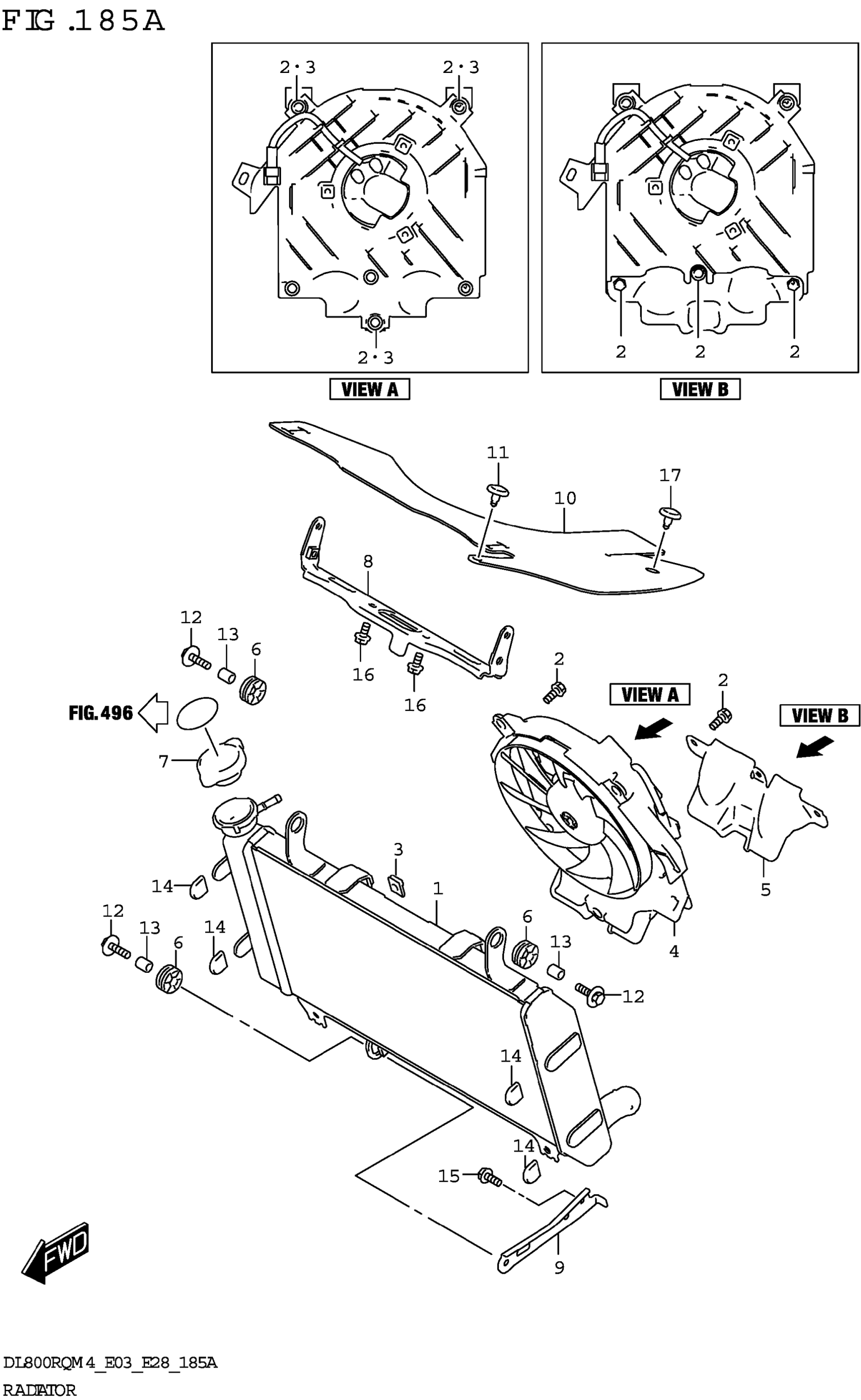

Suzuki DL800RQM4 (2024) RADIATOR Diagram

#

Description
Price

1

RADIATOR COMP

17700-25LB0

$485.87

2

BOLT,FAN ASSY

17711-14G00

$4.10

3

NUT,RADIATOR FAN

17802-14F00

$3.38

4

SHROUD FAN ASSY

17810-25L00

$203.75

5

PLATE

17812-25L00

$18.42

6

CUSHION

09320-10051

$2.99

7

CAP,RADIATOR (1.1)

17730-14G00

$42.83

8

BRACKET,RADIATOR UPPER

17740-25LA0

$24.83

9

BRACKET,RADIATOR LOWER

17750-25LA0

$10.08

10

SHIELD,RADIATOR HEAT

17771-25L10

$23.65

11

CLIP

94479-35F00

$5.62

12

BOLT (6X25)

09118-06097

$2.50

13

SPACER (6.5X10X12)

09180-06290

$2.35

14

CUSHION

09329-18001

$1.91

15

BOLT

01550-0616A

$1.97

16

SCREW

02162-0612A

$2.05

17

CLIP (BLACK)

09409-07317-5PK

Unavailable
