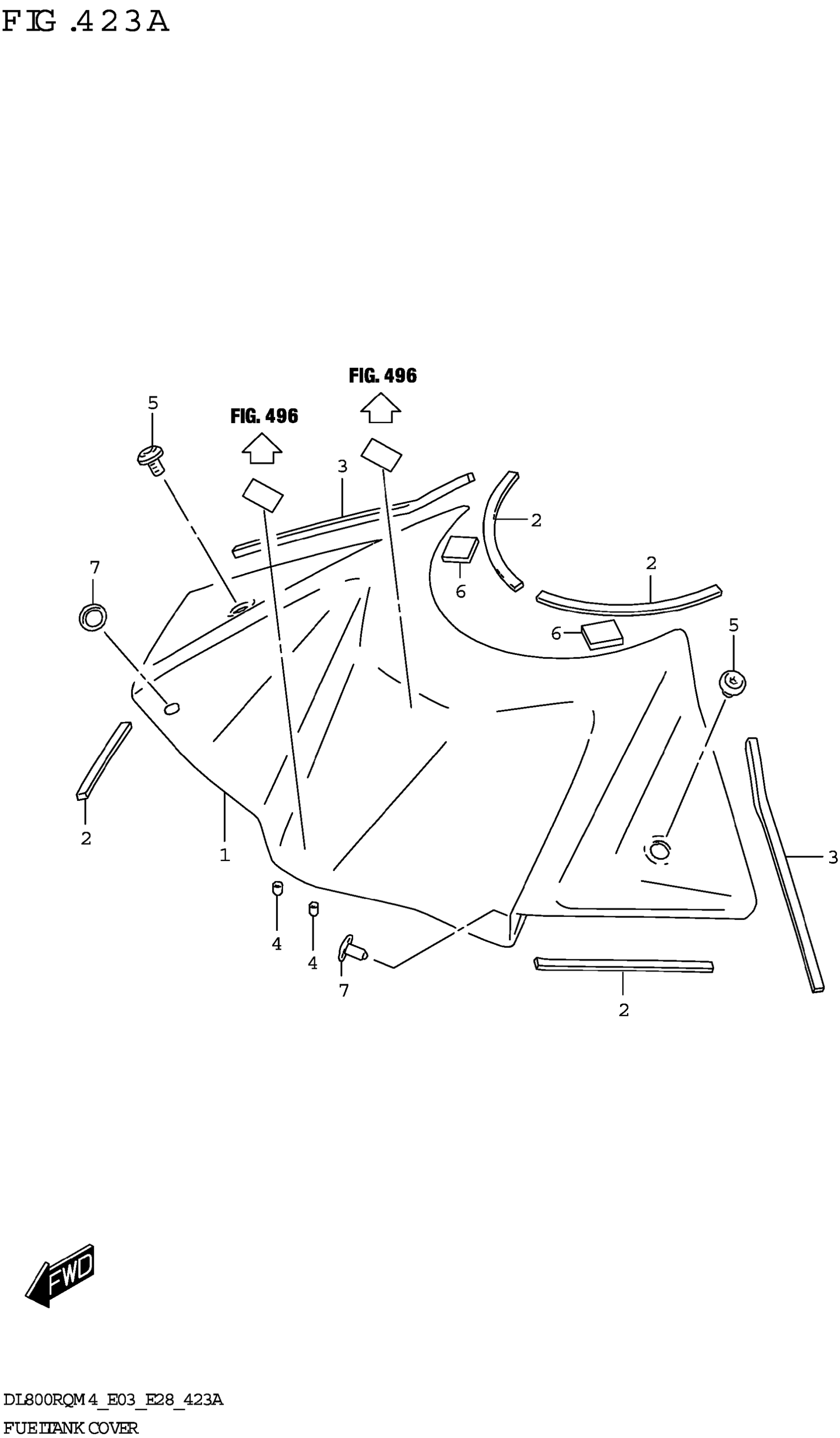

Suzuki DL800RQM4 (2024) FUEL TANK COVER Diagram

#

Description

Price

1-1

COVER,FUEL TANK FRONT (BLUE) | BODY COLOR:YKY

44291-25LA0-YKY

$111.88

1-2

COVER,FUEL TANK FRONT (BLACK) | BODY COLOR:YVB

44291-25LA0-YVB

$114.67

1-3

COVER,FUEL TANK FRONT (GREEN) | BODY COLOR:QVP

44291-25LA0-QVP

$111.88

2

CUSHION,FUEL TANK COVER NO.1

44292-25LA0

$1.49

3

CUSHION,FUEL TANK COVER NO.2

44293-25LA0

$1.49

4

CUSHION,FUEL TANK COVER NO.4

44294-43H20

$2.22

5

SCREW,FUEL TANK COVER

44513-07L10

$2.22

6

FASTENER (20X15X2.6)

44572-44G00

$10.18

7

CLIP

09409-06328

$3.23
