Description

Price

1

WHEEL,FRONT (BLACK)

54111-25L10-019

$546.55

2

SPACER,FR HUB BEARING

54731-14J00

$21.58

3

BEARING

09262-22049

$43.81

4

SEAL,OIL

09283-28028

$9.13

5

AXLE,FRONT

54711-25L10

$79.92

6

SPACER,FR AXLE,L

54751-14J00

$18.33

7

DISC,FR BRAKE

59210-44G11

$415.82

8

BOLT (8X21)

09106-08160

$3.57

9

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

10

BOLT

07130-0512A

$2.19

11

TIRE,FRONT (110/80R19M/C 59V)

55110-25L20

$217.62

12

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

13-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

13-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

13-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

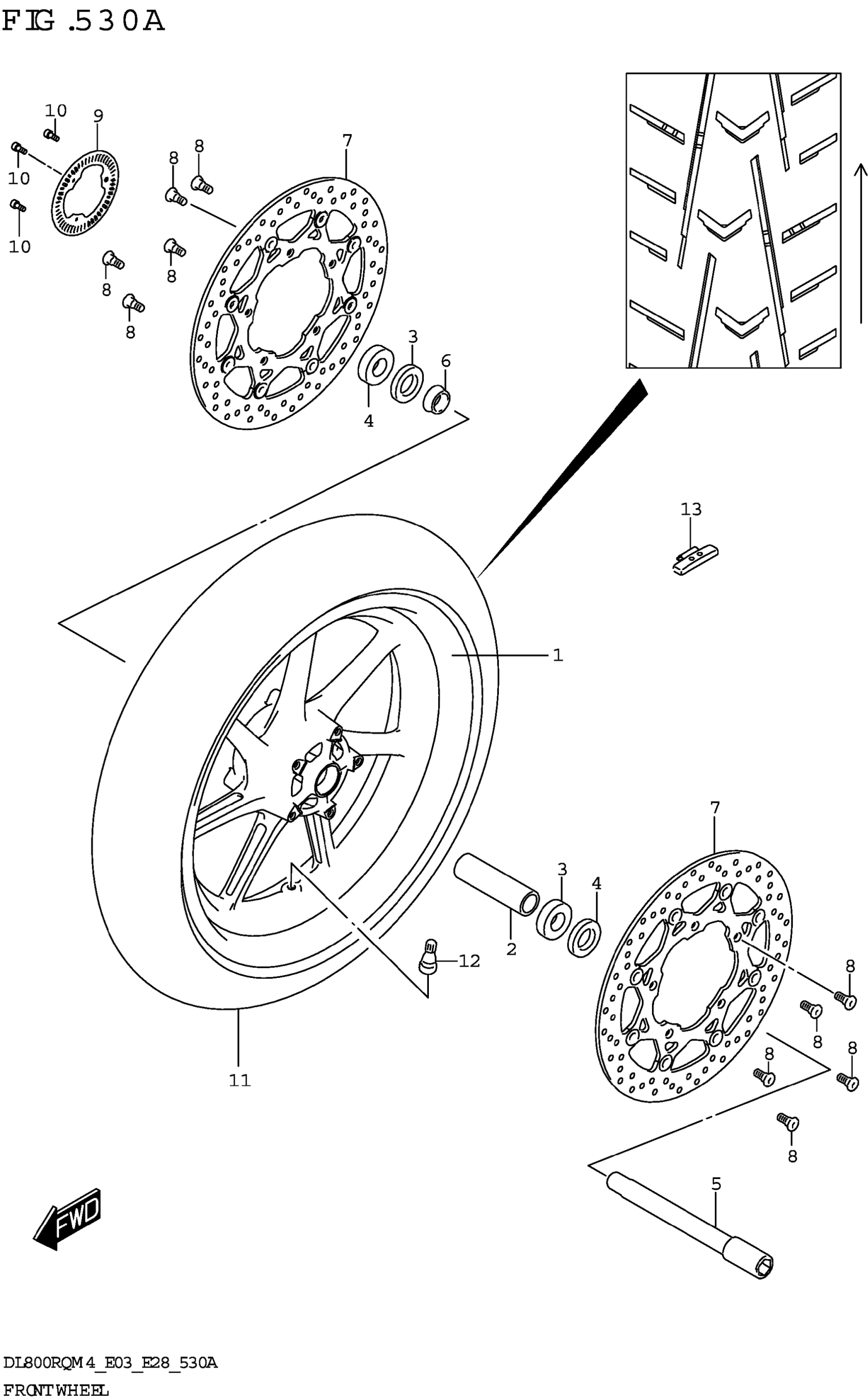

Suzuki DL800RQM4 (2024) FRONT WHEEL Diagram
