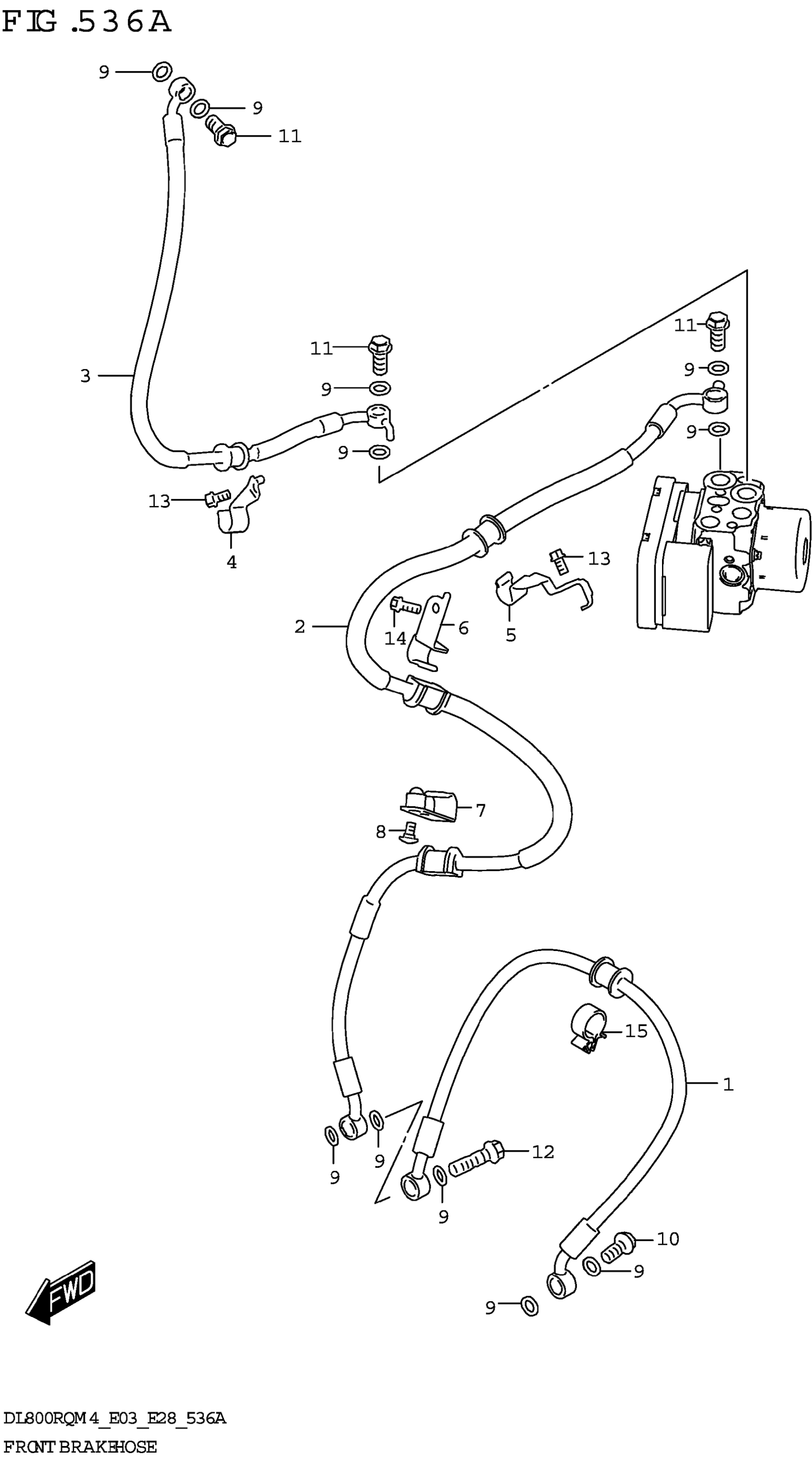

Suzuki DL800RQM4 (2024) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE,BK CLPR R TO CLPR L

59240-25L20

$44.68

2

HOSE,UNIT TO FR BK CLPR

59440-25L20

$82.07

3

HOSE,FR BK MASTER TO UNIT

59480-25L20

$50.50

4

CLAMP,BRAKE HOSE UPPER

59261-25L30

$10.12

5

CLAMP,FR BRAKE HOSE NO.1

59263-25L30

$11.88

6

CLAMP,FR BRAKE HOSE NO.2

59264-25L20

$10.17

7

CLAMP,BRAKE HOSE

59270-25L20

$11.78

8

SCREW (6X12)

09139-06144

$2.50

9

WASHER (10X15X1.5)

09161-10009

$1.84

10

UNION This part replaces 09360-10042.

09360-10062

$6.43

11

UNION (10X1.25X22)

09360-10062

$6.43

12

UNION (10X1.25X36)

09360-10064

$6.43

13

BOLT

01547-0616B

$2.45

14

BOLT

01547-0612A

$2.03

15

CLAMP

09403-16412

$3.37
