Description

Price

1

JET,PISTON COOLING

11390-25L00

$28.05

2

BOLT (6X12)

09106-06075

$2.48

3

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

4

GASKET (16X22X2)

09168-16002

$1.91

5

PLUG (14X12)

09248-14011

$2.98

6

PLUG (16X8)

09248-16012

$4.64

7

O-RING (D:1.2,ID:4)

09280-04004

$1.91

8

JET (#140)

09493-28012

$16.87

9

GASKET (10X14X3.6)

09168-10002

$2.13

10

PLUG (10X10)

09248-10010

$4.17

11

JET,AIR

09493-22010

Unavailable

12

BOLT (L:165)

09103-12143

$11.85

13

BOLT (L:145)

09103-12144

$9.45

14

NUT

09159-12072

Unavailable

15

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$13.10

16

UNION,OIL STAND

16591-06B01

$7.05

17

SWITCH ASSY,OIL PRESSURE

37820-33D11

$25.13

18

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.35

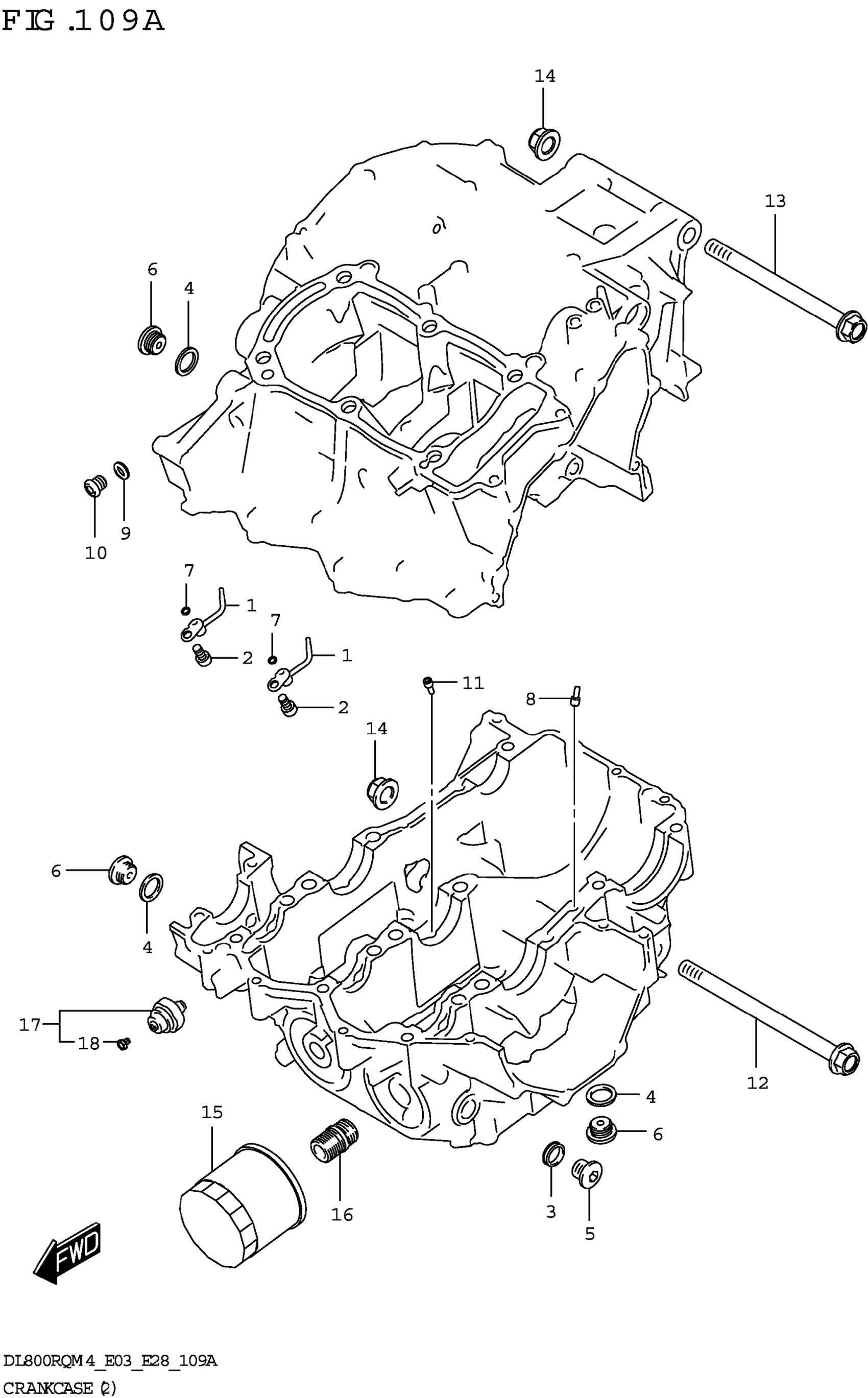

Suzuki DL800RQM4 (2024) CRANKCASE (2) Diagram
