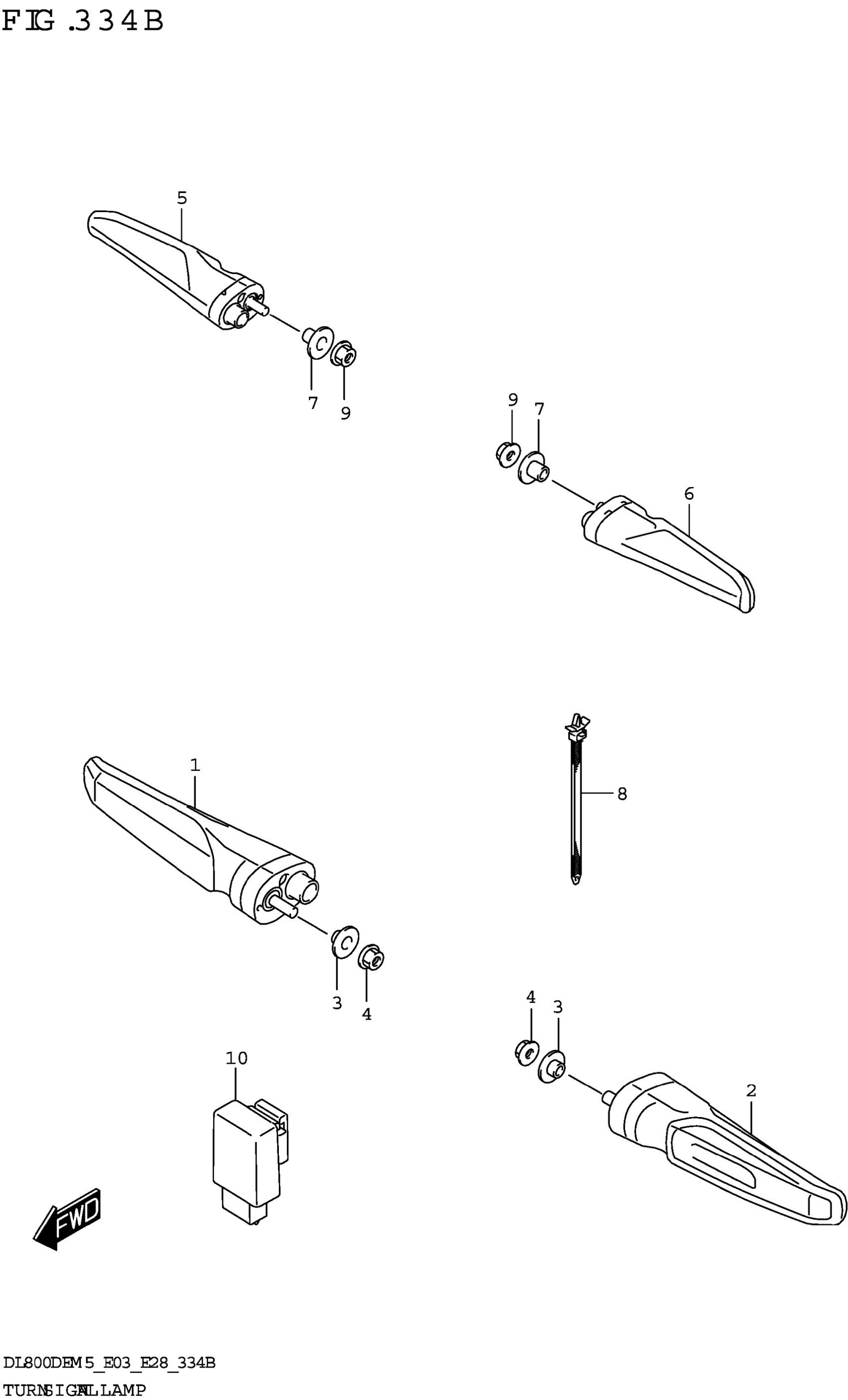

Suzuki DL800DERCM5 (2025) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R This part replaces 35601-06LD0.

35601-06LD1

$129.17

2

LAMP ASSY,FRONT TURNSIGNAL,L

35602-06LD0

$151.95

3

WASHER

09169-06100

$1.49

4

NUT (6X12)

08316-1006A

$2.19

5

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LE0

$125.73

6

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LE0

$125.73

7

WASHER

09169-06100

$1.49

8

CLAMP (L:90)

09407-11402

$1.80

9

NUT (6X12)

08316-1006A

$2.19

10

RELAY ASSY,TURNSIGNAL

38610-06L01

$72.60
