2025 Suzuki DL800DERCM5 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

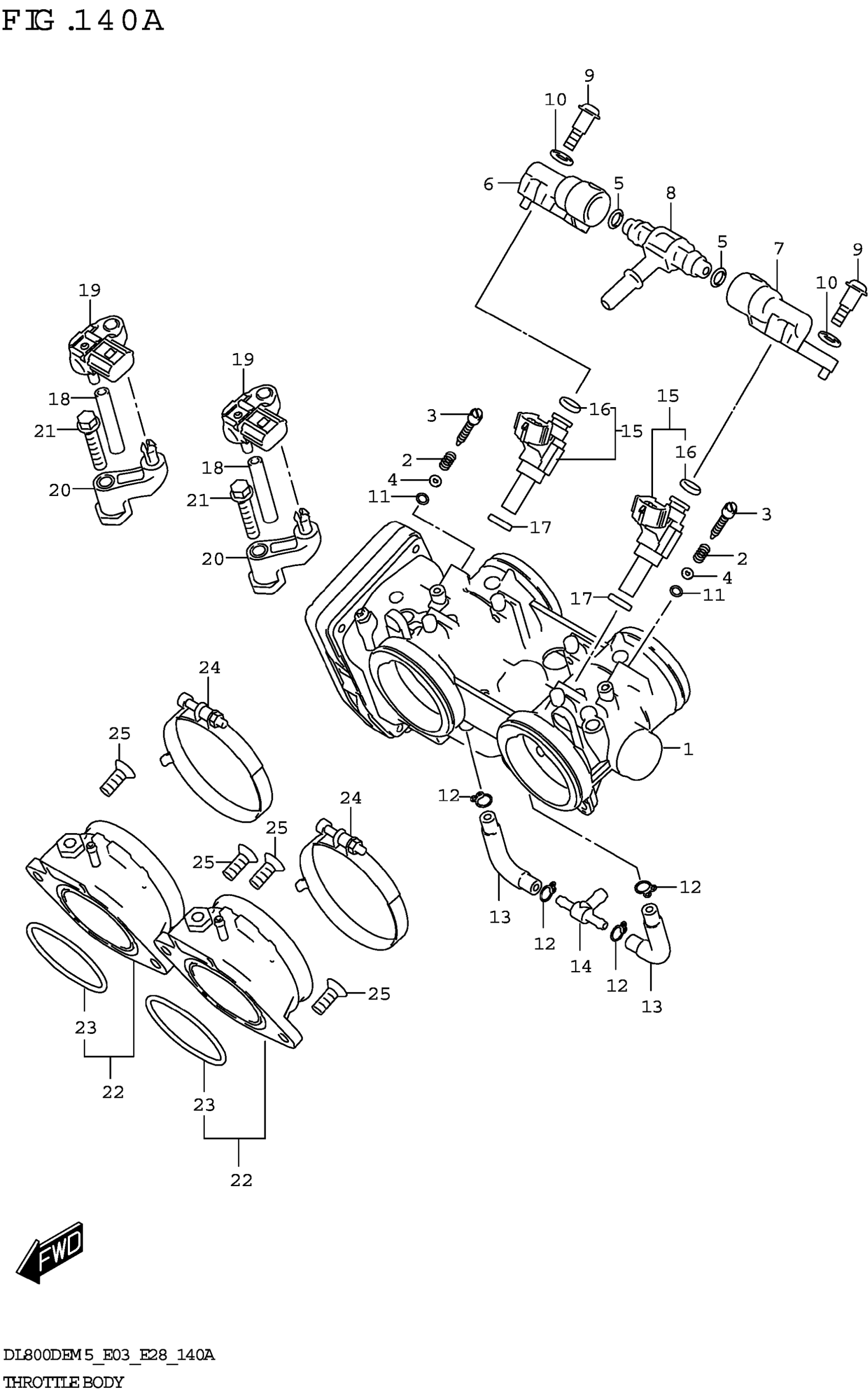

2025 Suzuki DL800DERCM5 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MIXER ASSY

13405-25L00

1

$457.90

In stock

2

SPRING,THROTTLE SCREW

13268-48700

2

$4.33

In stock

3

SCREW

13269-33E00

2
Out of stock

4

O-RING

13295-29901

2
Out of stock

5

O-RING

13374-32G00

2

$8.15

In stock

6

DELIVERY PIPE

13471-25L00

1

$28.25

In stock

7

DELIVERY PIPE

13472-25L00

1

$28.25

In stock

8

NIPPLE

13473-25L00

1

$33.87

In stock

9

SCREW

13601-11J00

2
Out of stock

10

PACKING

13602-29G01

2
Out of stock

11

WASHER

13606-47A00

2
Out of stock

12

4

$2.21

In stock

13

HOSE

13682-25L00

2

$24.00

In stock

14

NIPPLE

13685-04F10

1

$12.50

In stock

15

INJECTOR ASSY

15710-17K00

2

$195.72

In stock

16

.O-RING

15717-58B00

2
Out of stock

17

SEAL

15722-14J00

2
Out of stock

18

HOSE

09355-35007-030

2

$1.45

In stock

19

SENSOR,BOOST

18590-18K10

2

$234.95

In stock

20

2

$14.00

In stock

21

BOLT

01547-0630A

2

$2.48

In stock

22

PIPE ASSY,INTAKE

13101-25L00

2

$57.07

In stock

23

.O-RING,INTAKE PIPE

13127-25L00

2

$5.40

In stock

24

CLAMP,INTAKE PIPE

13170-25L00

2

$10.55

In stock

25

SCREW

02122-0616A

4

$1.52

In stock
