2025 Suzuki DL800DERCM5 Fuel Pump Diagram

← All diagrams

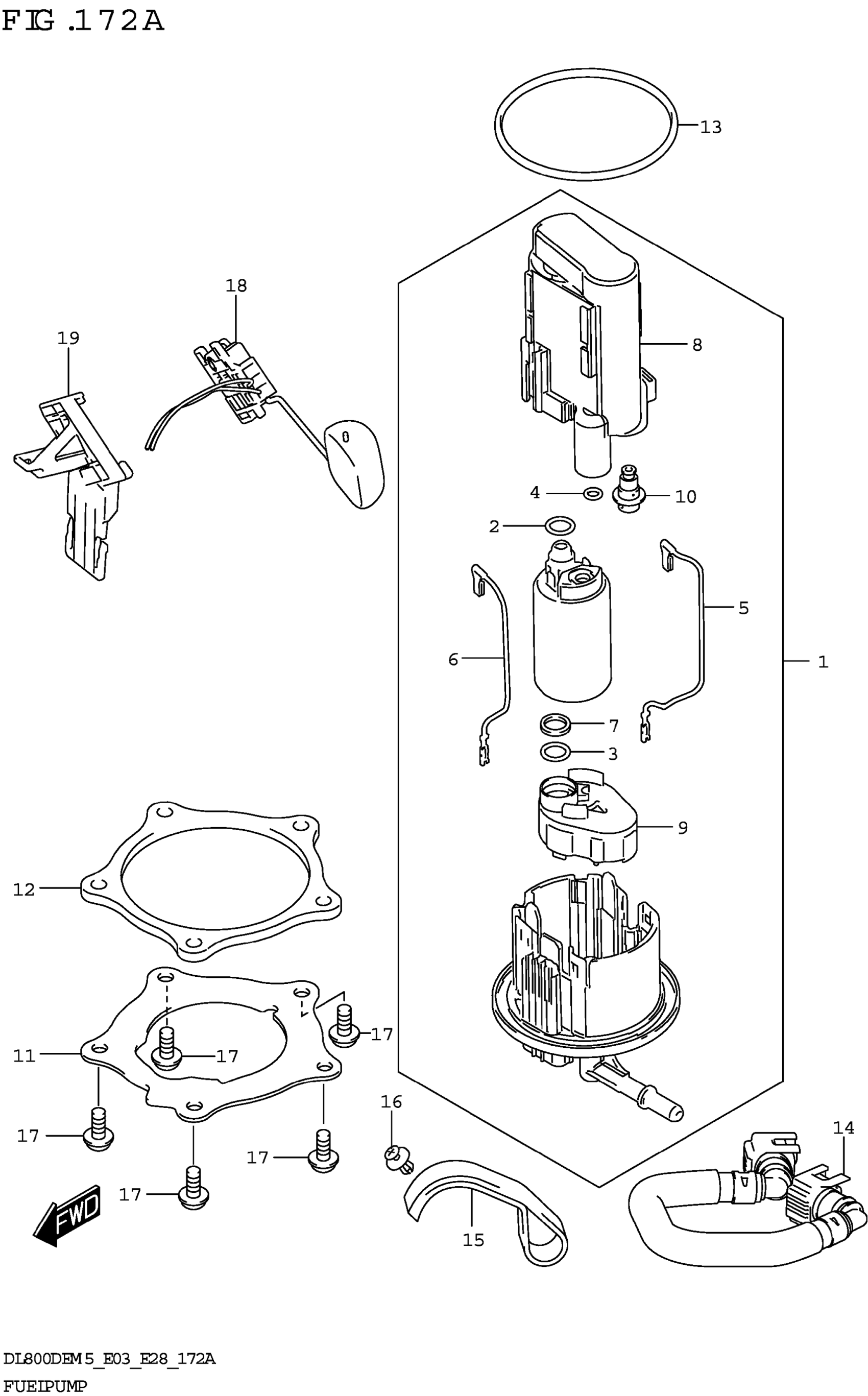

Find the part on the Fuel Pump diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL800DERCM5 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-25L10

1
Out of stock

2

.O-RING

15113-05H00

1
Out of stock

3

.O-RING

15113-17K00

1
Out of stock

4

.O-RING

15113-35F00

1
Out of stock

5

.WIRE,EARTH

15114-17K00

1
Out of stock

6

.WIRE,LEAD

15115-17K00

1
Out of stock

7

.COLLAR

15116-17K00

1
Out of stock

8

.FILTER

15310-17K10

1
Out of stock

9

.STRAINER

15420-17K00

1
Out of stock

10

.REGULATOR

15610-17K50

1
Out of stock

11

PLATE,FUEL PUMP OUTER

15121-25L00

1
Out of stock

12

PLATE,FUEL PUMP INNER

15122-17K00

1
Out of stock

13

O-RING,FUEL PUMP

15201-07L00

1
Out of stock

14

HOSE,FUEL

15810-25L00

1
Out of stock

15

CLAMP,FUEL HOSE

15821-25L00

1
Out of stock

16

CLIP

09409-06347

1
Out of stock

17

BOLT

07120-0616A

5
Out of stock

18

GAUGE ASSY,FUEL LEVEL SENDER

34810-25L00

1
Out of stock

19

ATTACHMENT,FUEL LEVEL SENDER

34815-25L00

1
Out of stock
