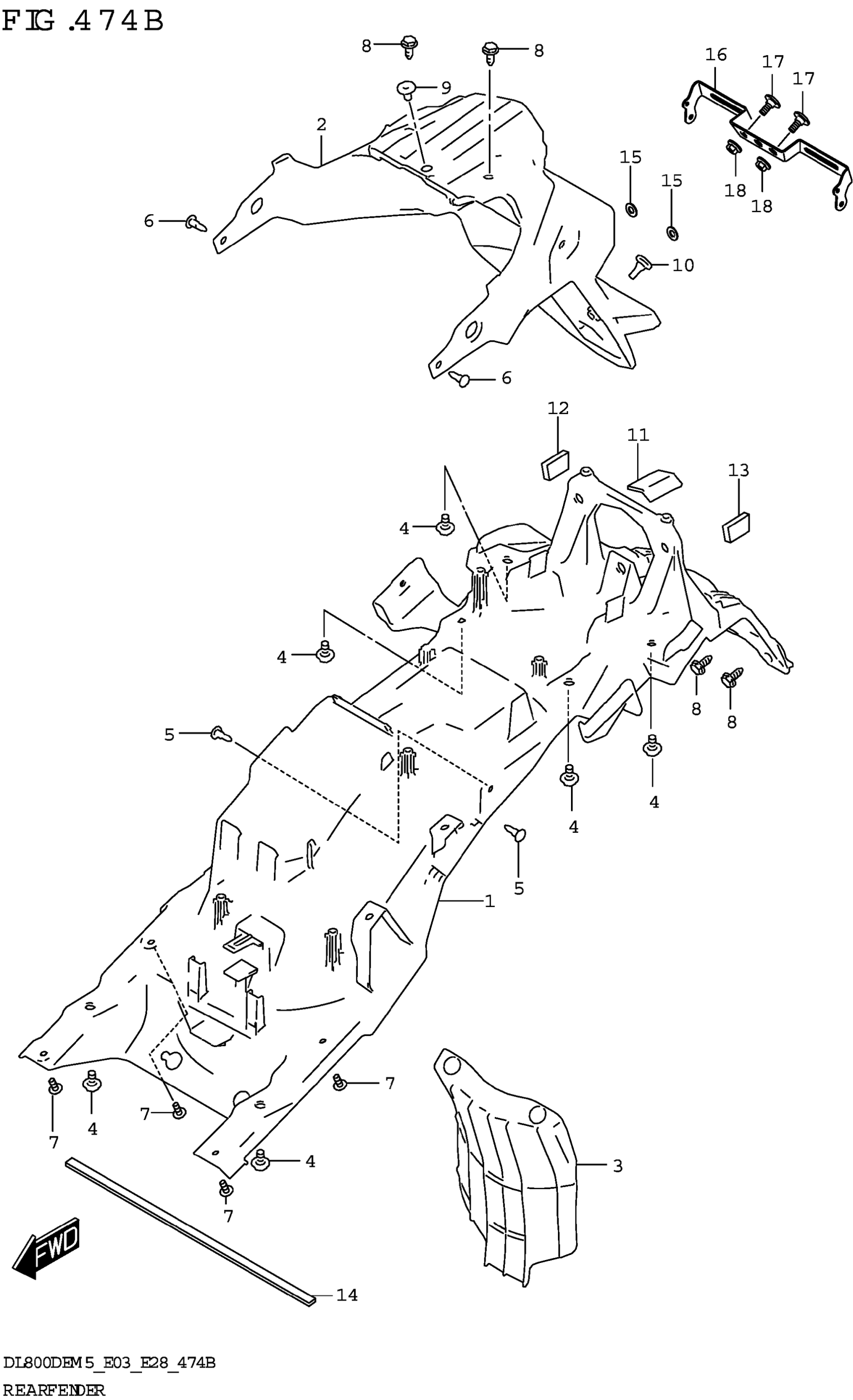

Suzuki DL800DERCM5 (2025) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR FRONT

63111-25LA0

$130.00

2

FENDER,REAR REAR

63112-25LA0

$62.25

3

EXTENSION,REAR FENDER

63311-25LA0

$22.08

4

BOLT (6X12)

09111-06106

$2.44

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

6

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

7

SCREW

03541-0512A

$1.49

8

SCREW,REAR FENDER REAR

63118-25LA0

$1.95

9

BOLT (6X12)

09139-06225

$2.92

10

CUSHION

09321-06026

$2.92

11

CUSHION,TANK COVER LWR NO.1

44555-33H00

$11.47

12

CUSHION,LAMP SIDE,R

63119-25LA0

$2.80

13

CUSHION,LAMP SIDE,L

63219-25LA0

$2.80

14

CUSHION,AIR CLEANER

63117-25LA0

$2.10

15

WASHER

08322-0106B

$2.26

16

BRACKET,REAR SIDE RR

47461-10L00

$12.12

17

SCREW (6X16)

09139-06137

$2.61

18

NUT (M6)

09159-06096

$3.15
