2025 Suzuki DL800DERCM5 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

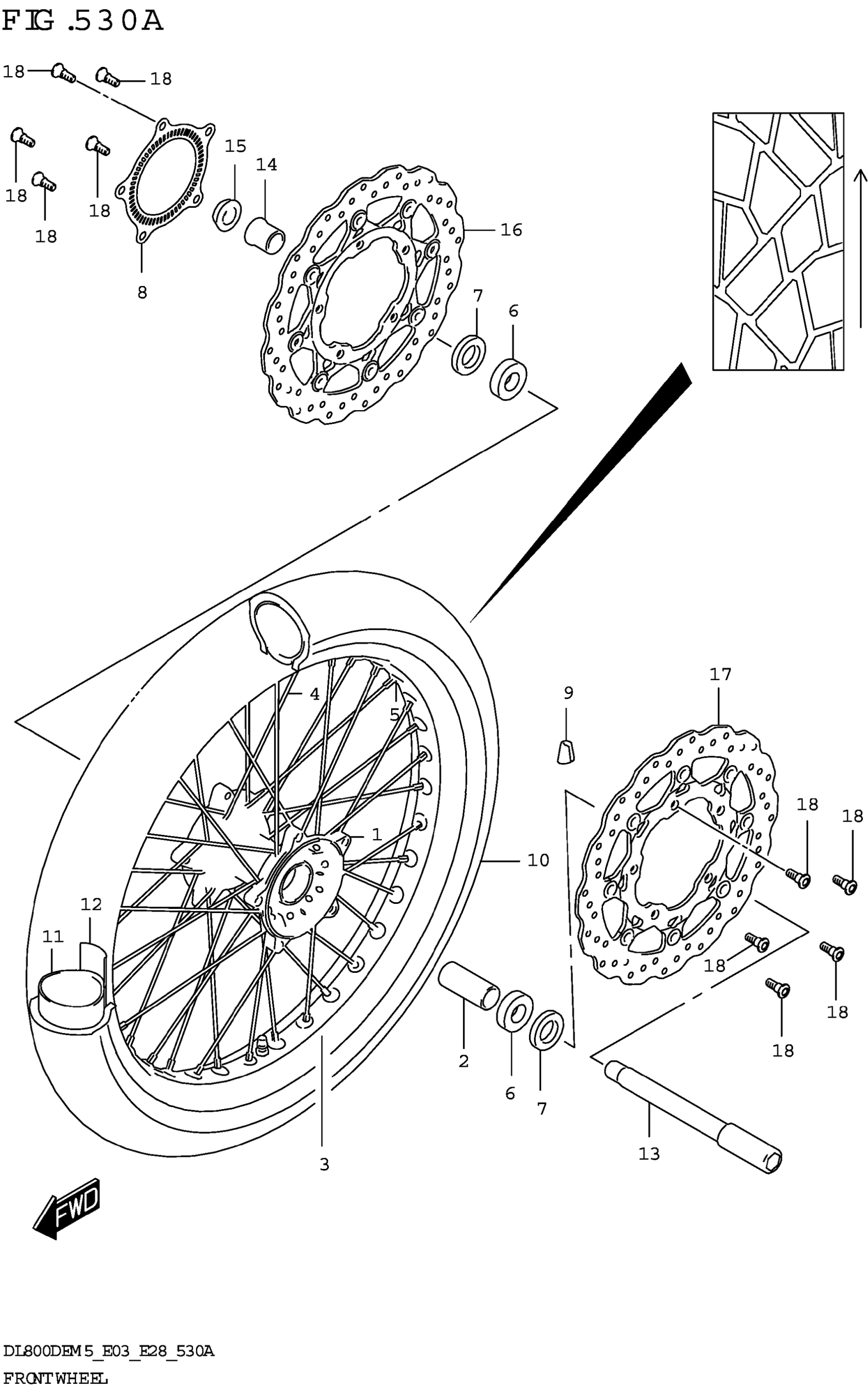

2025 Suzuki DL800DERCM5 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT

54111-25L20

1
Out of stock

2

.SPACER,FR HUB BEARING (20.5X | .3X50)

54731-35G00

1
Out of stock

3-1

RIM,FR WHEEL (BLUE) | BODY COLOR:YU1,QU2

55311-25L20-Q19

1
Out of stock

3-2

RIM,FR WHEEL (21M/CXMTX2.15,B | ACK) BODY COLOR:YVB

55311-25L20-Q17

1
Out of stock

4

SPOKE,FRONT WHEEL

55321-25L00

36
Out of stock

5

NIPPLE,WHEEL

55326-25L00

36
Out of stock

6

BEARING

09262-22049

2
Out of stock

7

SEAL,OIL

09283-28028

2
Out of stock

8

RING,SPEED SENSOR FR (58T)

54162-25L00

1
Out of stock

9

BALANCER,WHEEL (20G)

55412-41F00

1
Out of stock

10

TIRE,FRONT (90/90-21M/C 54H)

55110-25L30

1
Out of stock

11

TUBE ASSY,WHEEL INNER

55200-29F01

1
Out of stock

12

PROTECTOR,WHEEL INNER TUBE

55261-44AF0

1
Out of stock

13

AXLE,FRONT

54711-25L00

1
Out of stock

14

SPACER,FRONT AXLE,R

54741-25L00

1
Out of stock

15

NUT,RR SHOCK ABS BRACKET

62994-47H00

1
Out of stock

16

DISC,FRONT BRAKE,R

59210-13K00

1
Out of stock

17

DISC,FRONT BRAKE,L

59220-13K00

1
Out of stock

18

BOLT

09106-08212

10
Out of stock
