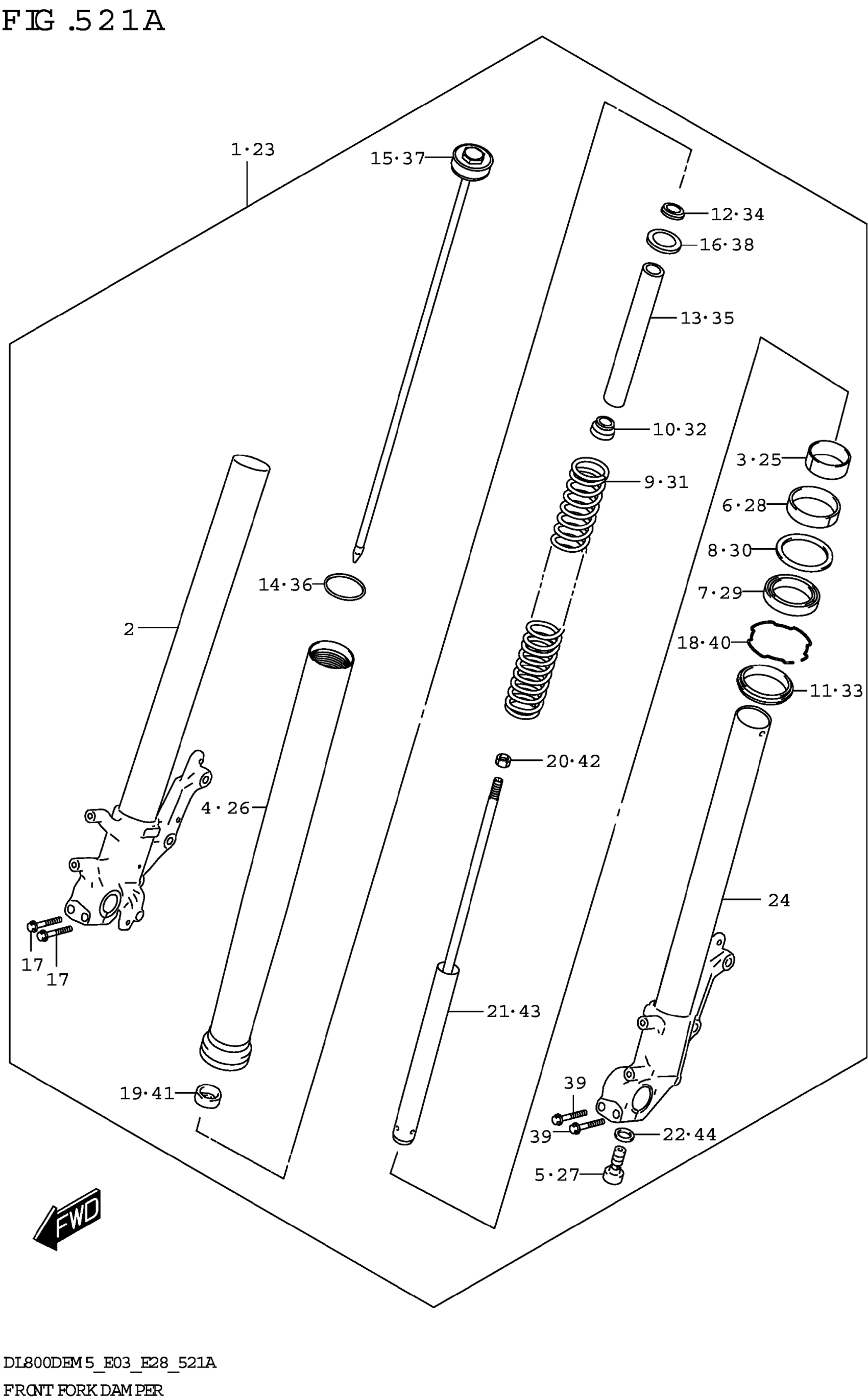

Suzuki DL800DERCM5 (2025) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,R

51103-25L30

$1,284.07

2

.TUBE,INNER,R

51110-25L30

$447.00

3

.BUSH,SLIDE

51121-07J00

$24.37

4

.TUBE,OUTER

51131-25L30

$333.35

5

.BOLT,CENTER

51147-25L30

$11.95

6

.BUSH, GUIDE

51152-47H00

$13.01

7

.SEAL,OIL

51153-47H00

$24.63

8

.SPACER, SEAL

51168-17C00

$5.91

9

.SPRING,FR

51171-25L30

$85.32

10

.JOINT,SPRING LWR

51172-22D00

$17.07

11

.SEAL,DUST

51173-25L30

$25.35

12

.GUIDE,SPRING UPR

51175-22D00

$22.95

13

.COLLAR SPRING

51176-25L30

$40.45

14

..O-RING

51187-47H00

$6.52

15

.BOLT,FORK

51189-25L30

$104.00

16

.SEAT,RUBBER

51193-25L30

$5.18

17

BOLT

51328-37F80

$6.64

18

.RING,STOPPER

51556-38B00

$6.61

19

.PLATE,CENTERING

51815-17D00

Unavailable

20

.NUT

51827-27E00

Unavailable

21

.PISTON ROD

52110-25L30

$208.93

22

WASHER (10X15X1.5)

09161-10009

$1.83

23

DAMPER ASSY,L

51104-25L30

$1,284.07

24

.TUBE,INNER,L

51120-25L30

$447.00

25

.BUSH,SLIDE

51121-07J00

$24.37

26

.TUBE,OUTER

51131-25L30

$333.35

27

.BOLT,CENTER

51147-25L30

$11.95

28

.BUSH, GUIDE

51152-47H00

$13.01

29

.SEAL,OIL

51153-47H00

$24.63

30

.SPACER, SEAL

51168-17C00

$5.91

31

.SPRING,FR

51171-25L30

$85.32

32

.JOINT,SPRING LWR

51172-22D00

$17.07

33

.SEAL,DUST

51173-25L30

$25.35

34

.GUIDE,SPRING UPR

51175-22D00

$22.95

35

.COLLAR SPRING

51176-25L30

$40.45

36

..O-RING

51187-47H00

$6.52

37

.BOLT,FORK

51189-25L30

$104.00

38

.SEAT,RUBBER

51193-25L30

$5.18

39

BOLT

51328-37F80

$6.64

40

.RING,STOPPER

51556-38B00

$6.61

41

.PLATE,CENTERING

51815-17D00

Unavailable

42

.NUT

51827-27E00

Unavailable

43

.PISTON ROD

52110-25L30

$208.93

44

WASHER (10X15X1.5)

09161-10009

$1.83
