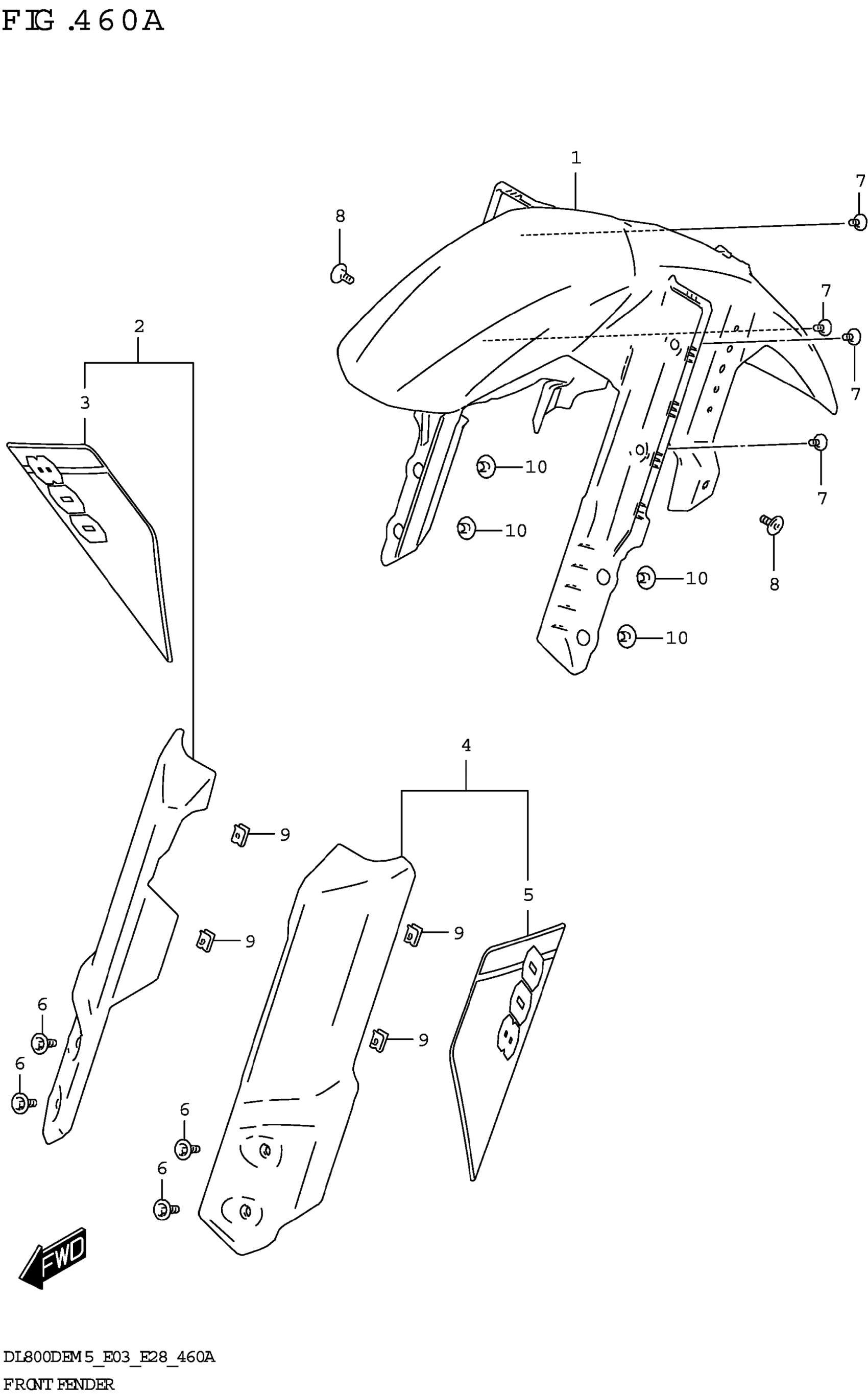

Suzuki DL800DERCM5 (2025) FRONT FENDER Diagram

#

Description
Price

1

FENDER,FRONT

53111-25LA0

$223.80

2-1

COVER,FRONT FENDER SIDE,R (YE | LOW) BODY COLOR:YU1

53120-25L10-ZFX

Unavailable

2-2

COVER,FRONT FENDER SIDE,R (BL | CK) BODY COLOR:YVB

53120-25L10-019

Unavailable

2-3

COVER,FRONT FENDER SIDE,R | BODY COLOR:QU2

53120-25L10-DHX

Unavailable

3-1

.TAPE,FRONT FENDER SIDE COVER | R BODY COLOR:YU1

68155-25L00-CL8

Unavailable

3-2

.TAPE,FRONT FENDER SIDE COVER | R BODY COLOR:YVB

68155-25L00-C07

Unavailable

3-3

.TAPE,FRONT FENDER SIDE COVER | R BODY COLOR:QU2

68155-25L00-C08

Unavailable

4-1

COVER,FRONT FENDER SIDE,L (YE | LOW) BODY COLOR:YU1

53130-25L10-ZFX

Unavailable

4-2

COVER,FRONT FENDER SIDE,L (BL | CK) BODY COLOR:YVB

53130-25L10-019

Unavailable

4-3

COVER,FRONT FENDER SIDE,L | BODY COLOR:QU2

53130-25L10-DHX

Unavailable

5-1

.TAPE,FRONT FENDER SIDE COVER | L BODY COLOR:YU1

68165-25L00-CL8

Unavailable

5-2

.TAPE,FRONT FENDER SIDE COVER | L BODY COLOR:YVB

68165-25L00-C07

Unavailable

5-3

.TAPE,FRONT FENDER SIDE COVER | L BODY COLOR:QU2

68165-25L00-C08

Unavailable

6

BOLT (6X20)

09116-06188

$2.16

7

SCREW (5X13)

09139-05091

$2.03

8

SCREW (6X16)

09139-06221

$2.92

9

NUT (M5)

09148-05052

$3.37

10

SPACER

09180-06349

Unavailable
