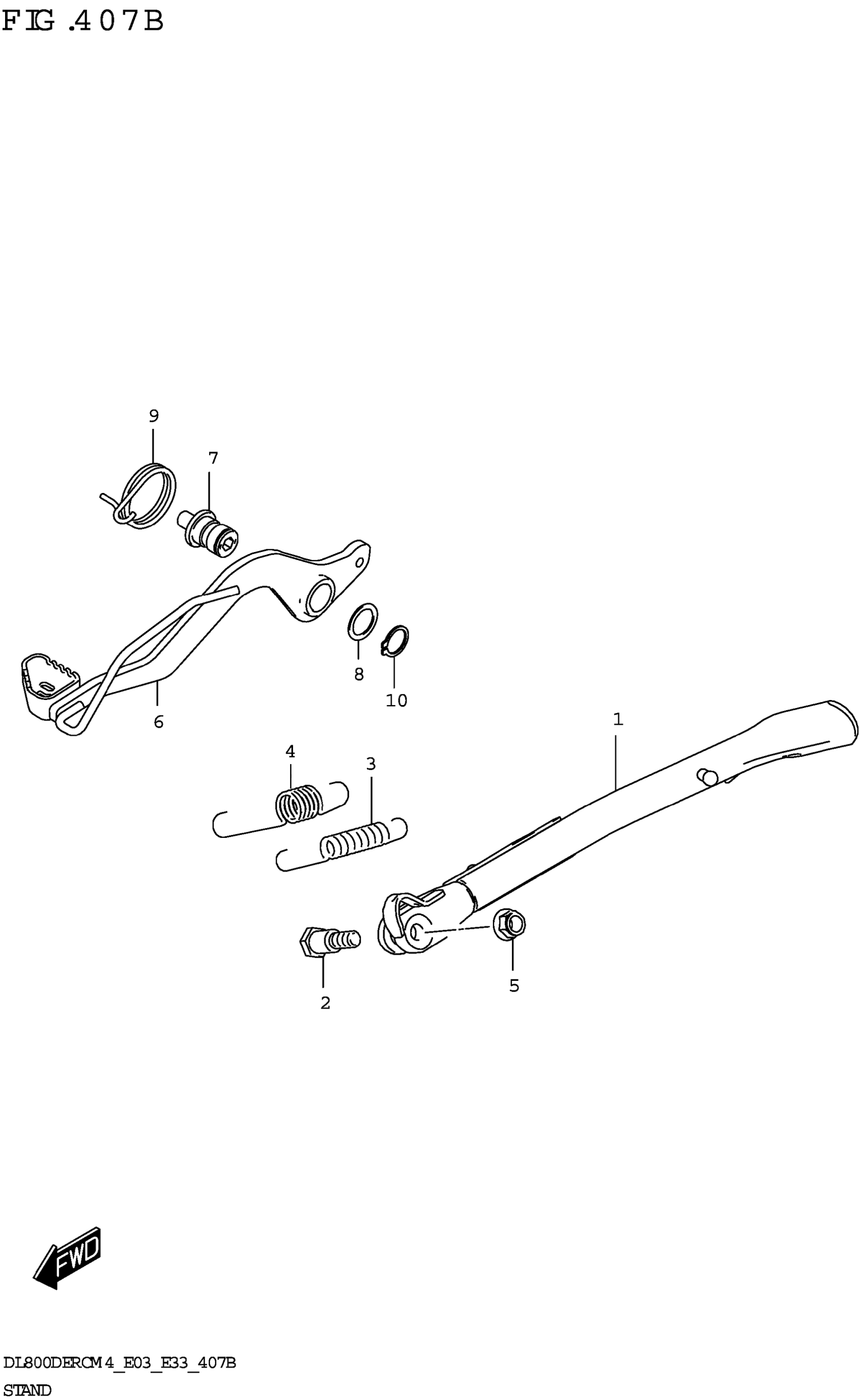

Suzuki DL800DERCM4 (2024) STAND Diagram

#

Description
Price

1

STAND,PROP This part replaces 42310-25LD0.

42310-25LH1

$85.77

2

BOLT (10X21)

09111-10059

$6.95

3

SPRING

09443-14080

$8.93

4

SPRING

09443-20007

$8.68

5

NUT

08319-3110A

$2.73

6

PEDAL,BRAKE This part replaces 43110-25LA0.

43110-25LA2

$107.10

7

SHAFT,BRAKE PEDAL

43142-25L00

$22.62

8

WASHER (18X24X1.0)

09160-18022

$2.92

9

SPRING

09448-41006

$4.87

10

CIRCLIP

08331-3118A

$2.13
