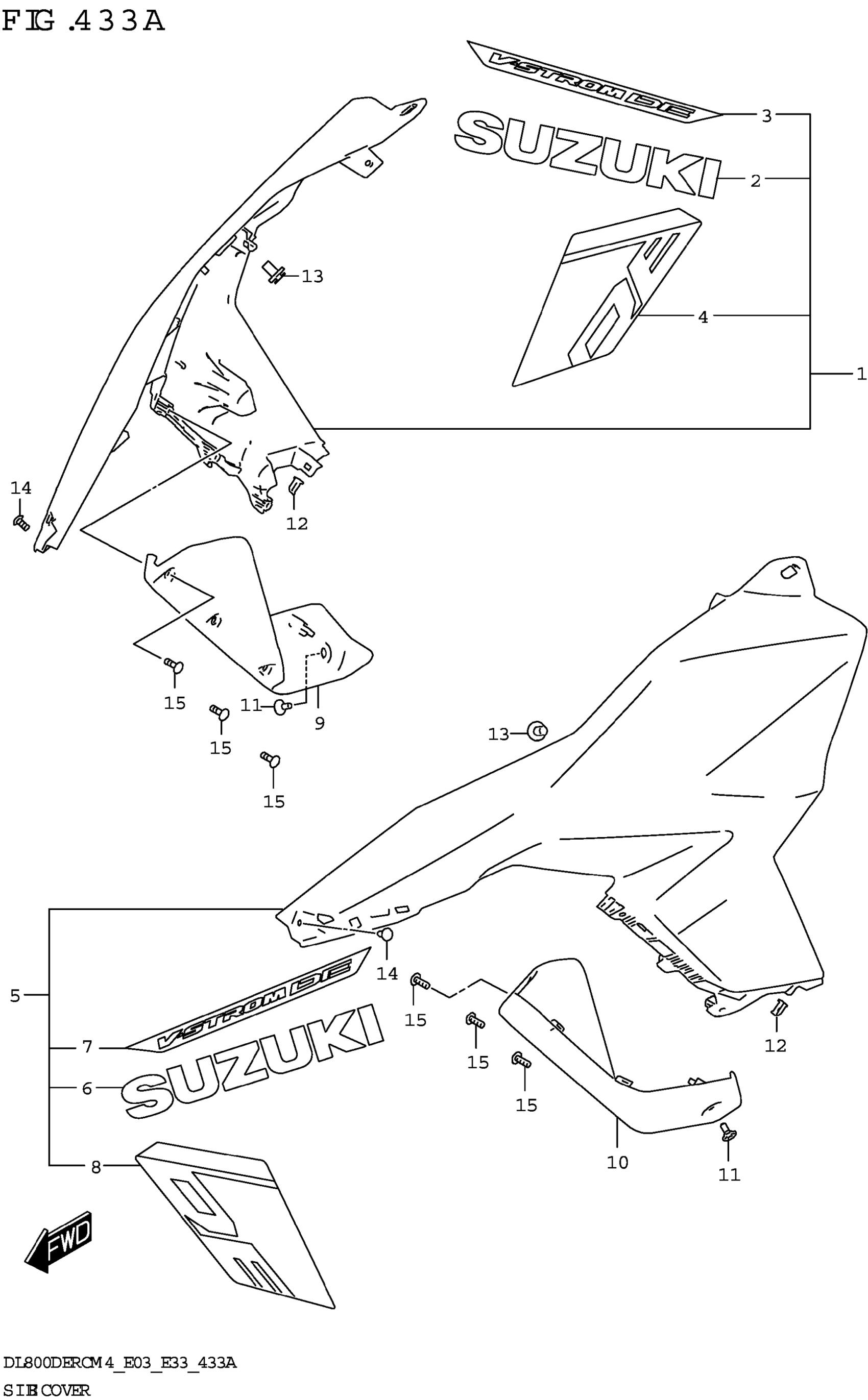

Suzuki DL800DERCM4 (2024) SIDE COVER Diagram

#

Description
Price

1-1

COVER,SIDE,R (YELLOW) | BODY COLOR:YU1

94420-25L01-YU1

$137.53

1-2

COVER,SIDE,R (WHITE) | BODY COLOR:QU2

94420-25L01-QU2

$137.53

1-3

COVER,SIDE,R (GREEN) | BODY COLOR:QVP

94420-25L01-QVP

$137.53

2-1

.EMBLEM,"SUZUKI" (BLACK) | BODY COLOR:YU1,QU2

68111-47C10-YKV

$13.88

2-2

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:QVP

68111-47C10-YVB

$14.95

3-1

.EMBLEM,SIDE COVER,R | BODY COLOR:YU1

68271-25L00-CJ6

$8.83

3-2

.EMBLEM,SIDE COVER,R | BODY COLOR:QU2

68271-25L00-CKD

$8.60

3-3

.EMBLEM,SIDE COVER,R | BODY COLOR:QVP

68271-25L00-CKE

$8.60

4-1

.TAPE,SIDE COVER,R | BODY COLOR:YU1

68275-25L00-CJ6

$14.32

4-2

.TAPE,SIDE COVER,R | BODY COLOR:QU2

68275-25L00-CKD

$13.97

4-3

.TAPE,SIDE COVER,R | BODY COLOR:QVP

68275-25L00-CKE

$13.97

5-1

COVER COMP,SIDE | BODY COLOR:YU1 This part replaces 94430-25L01-YU1.

94430-25L02-YU1

$124.41

5-2

COVER,SIDE,L (WHITE) | BODY COLOR:QU2

94430-25L01-QU2

$140.12

5-3

COVER,SIDE,L (GREEN) | BODY COLOR:QVP

94430-25L01-QVP

$119.11

6-1

.EMBLEM,"SUZUKI" (BLACK) | BODY COLOR:YU1,QU2

68111-47C10-YKV

$13.88

6-2

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:QVP

68111-47C10-YVB

$14.95

7-1

.EMBLEM,SIDE COVER,L | BODY COLOR:YU1

68281-25L00-CJ6

$8.83

7-2

.EMBLEM,SIDE COVER,L | BODY COLOR:QU2

68281-25L00-CKD

$8.60

7-3

.EMBLEM,SIDE COVER,L | BODY COLOR:QVP

68281-25L00-CKE

$8.60

8-1

.TAPE,SIDE COVER,L | BODY COLOR:YU1

68285-25L00-CJ6

$14.32

8-2

.TAPE,SIDE COVER,L | BODY COLOR:QU2

68285-25L00-CKD

$13.97

8-3

.TAPE,SIDE COVER,L | BODY COLOR:QVP

68285-25L00-CKE

$13.97

9-1

GARNISH,SIDE COVER,R (BLUE) | BODY COLOR:YU1,QU2

94442-25LA0-Y2W

$59.22

9-2

GARNISH,SIDE COVER,R (YELLOW) | BODY COLOR:QVP

94442-25LA0-YU1

$59.22

10-1

GARNISH,SIDE COVER,L (BLUE) | BODY COLOR:YU1,QU2

94452-25LA0-Y2W

$59.22

10-2

GARNISH,SIDE COVER,L (YELLOW) | BODY COLOR:QVP

94452-25LA0-YU1

$59.22

11

SCREW (5X13)

09139-05091

$2.03

12

CLIP

09409-08012

$2.82

13

CLIP

09409-10314

$1.97

14

SCREW

03541-0512A

$1.49

15

SCREW

03541-0516A

$1.49
