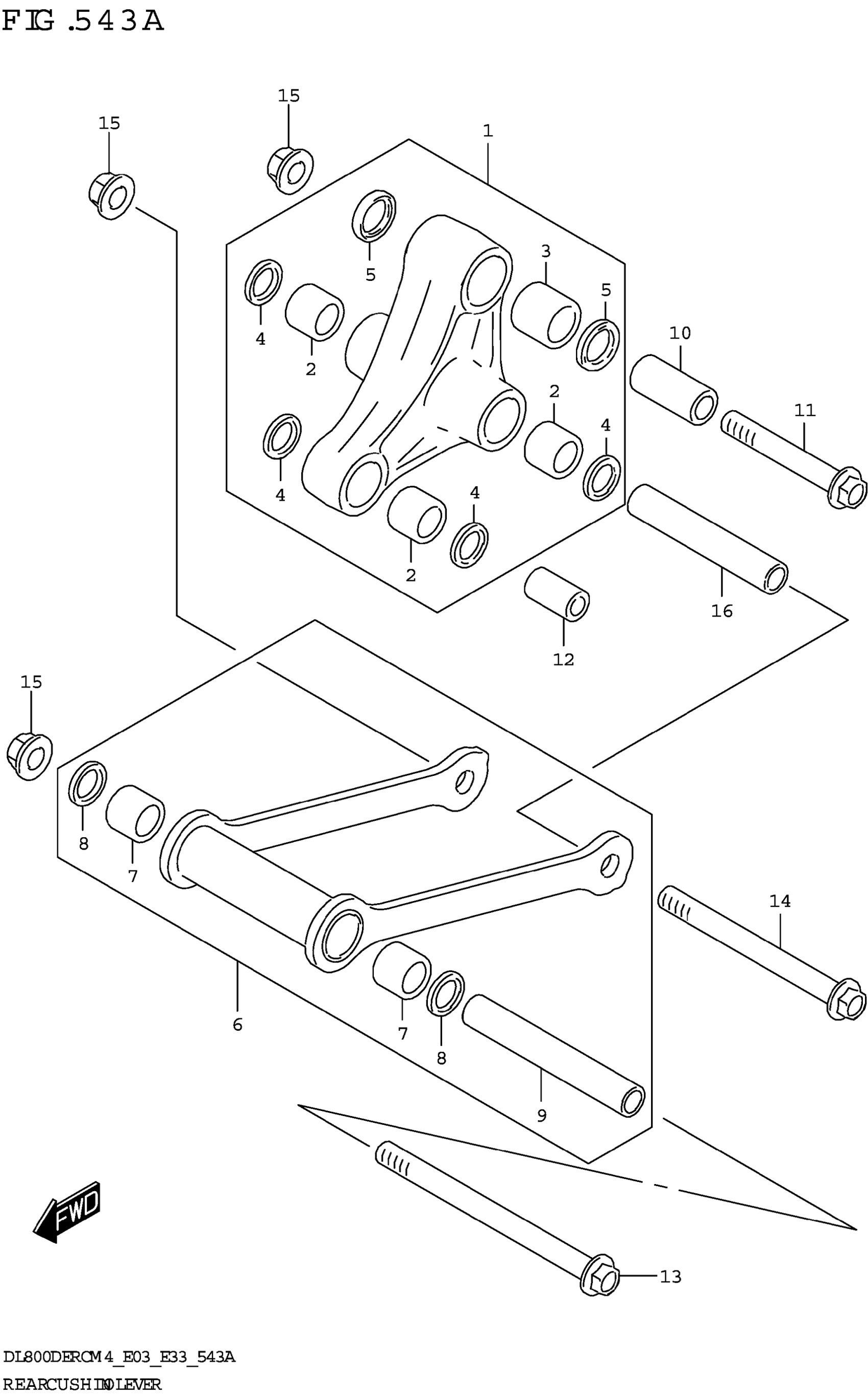

Suzuki DL800DERCM4 (2024) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,REAR CUSHION

62600-25810

$321.07

2

.BEARING

09263-17059

$18.07

3

.BEARING (20X27X25)

09263-20053

$27.58

4

.SEAL,OIL (17X24X3)

09285-17007

$3.76

5

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

6

ROD SET,RR CUSHION

62600-25820

$194.20

7

.BEARING

09263-17059

$18.07

8

.SEAL,OIL (17X24X3)

09285-17007

$3.76

9

.SPACER

09180-12163

$20.77

10

SPACER,RR CUSHION LEVER LWR

62646-37F10

$26.93

11

BOLT,RR CUSHION LEVER UPR

62658-37F10

$10.37

12

SPACER,RR CUSHION LEVER (10X1 | X30)

62684-40A10

$12.15

13

BOLT (L:155)

09103-12031

Unavailable

14

BOLT

09103-12142

$9.58

15

NUT

09159-12056

$7.37

16

SPACER

09180-12162

$22.92
