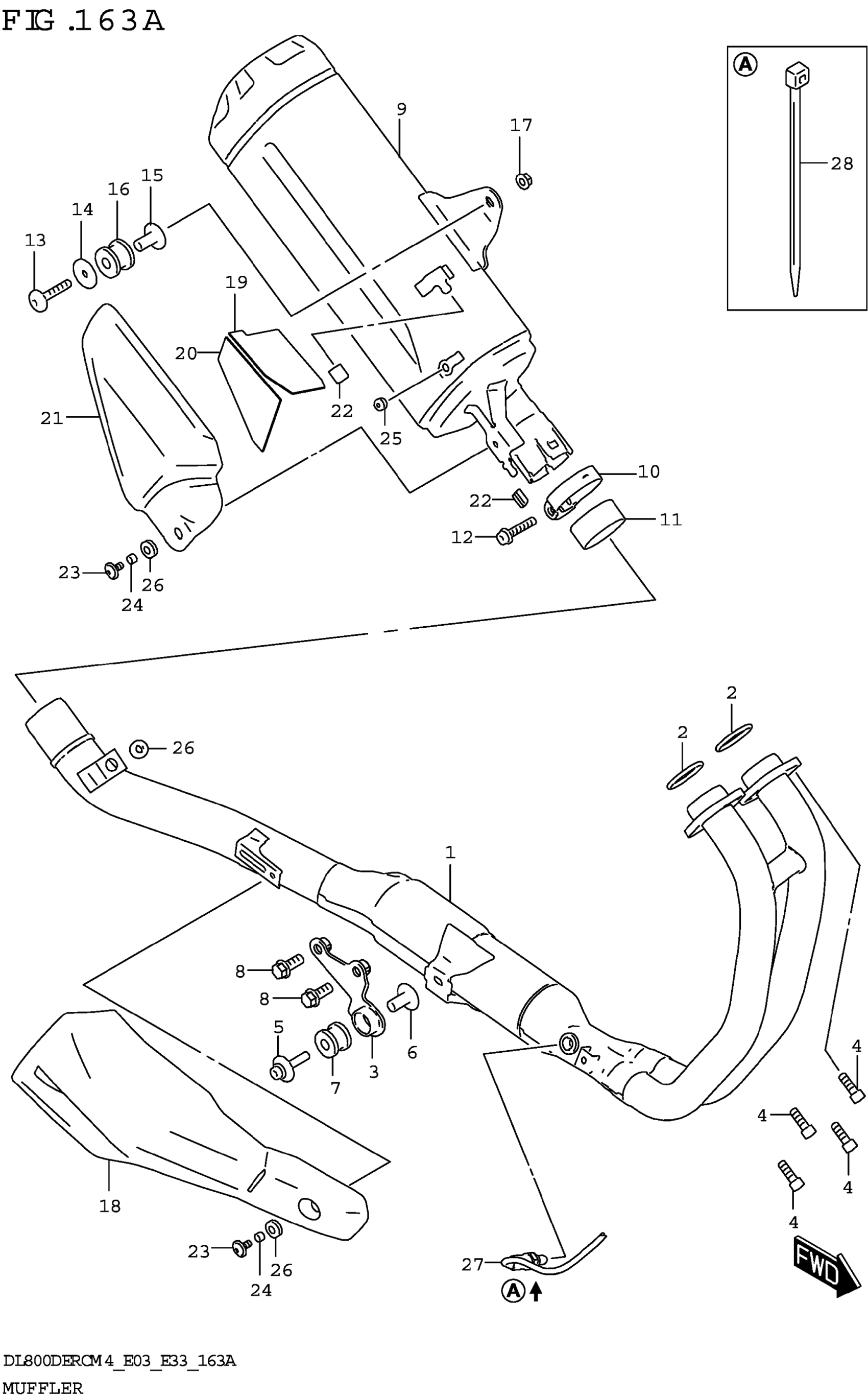

Suzuki DL800DERCM4 (2024) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-25LG0

$1,621.58

2

.GASKET,EXHAUST PIPE

14181-04K00

$8.29

3

BRACKET,EXH SPRT

14770-25LG0

$23.28

4

BOLT (8X25)

09106-08178

$3.24

5

BOLT

09116-08176

$7.27

6

SPACER (8.6X12X24.2)

09180-08152

$5.83

7

CUSHION (12X30X24)

09320-12077

$11.78

8

BOLT

01550-1025B

$4.10

9

BODY,MUFFLER

14310-25LG0

$619.20

10

CLAMP,MUFFLER CONNECTOR

14459-47H00

$24.37

11

CONNECTOR,MUFFLER

14771-24F10

$30.70

12

BOLT (8X40)

09106-08162

$4.77

13

BOLT (8X45)

09106-08195

$6.17

14

WASHER (8.5X33X1.6)

09160-08162

$1.87

15

SPACER (8.6X12X24.2)

09180-08152

$5.83

16

CUSHION

09320-12049

$10.68

17

NUT

08316-1008B

$2.66

18

COVER,MUFFLER FR

14761-25LG0

$35.42

19

SHIELD,MUF COV HEAT

14765-25LG0

$3.33

20

SHIELD,MUF COV FR HEAT NO.2

14766-25LG0

$3.67

21

COVER,MUFFLER

14780-25LG0

$112.35

22

GROMMET

14795-10FA0

$5.58

23

SCREW

09139-06240

$3.15

24

SPACER (6.5X9X5.7)

09180-06256

$2.09

25

CUSHION (4X12X8)

09320-04013

$1.85

26

CUSHION (8.4X18X6)

09320-08066

$8.24

27

SENSOR,OXYGEN

18213-25L40

$212.98

28

CLAMP (L:145)

09407-14407

$3.57
