2024 Suzuki DL800DERCM4 Knuckle Cover Diagram

← All diagrams

Find the part on the Knuckle Cover diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

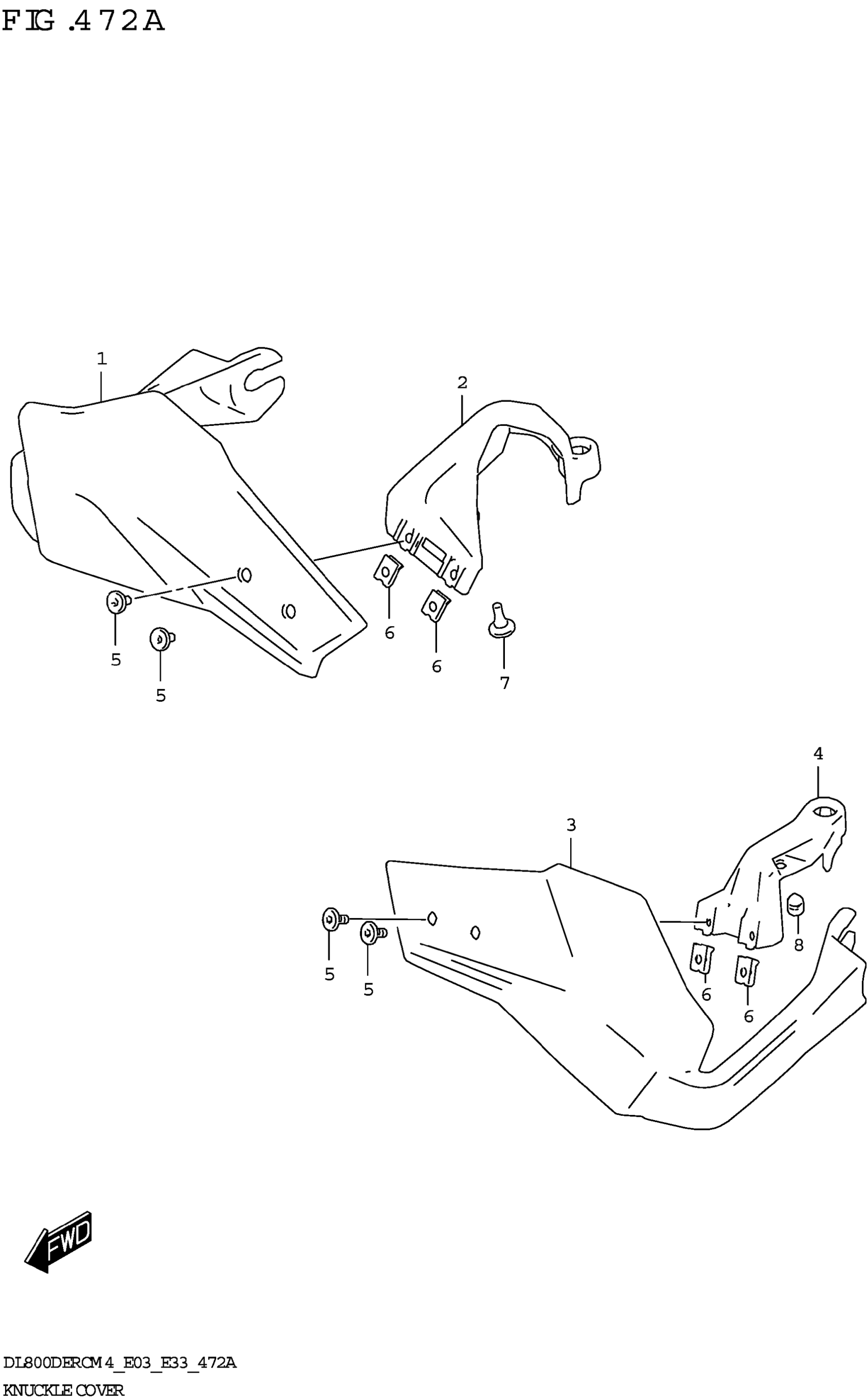

2024 Suzuki DL800DERCM4 Knuckle Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,KNUCKLE RH

57341-06L01

1
Out of stock

2

BRACKET,KNUCKLE COVER,R

57342-06L00

1
Out of stock

3

COVER,KNUCKLE LH

57541-06L01

1
Out of stock

4

BRACKET,KNUCKLE COVER,L

57542-48K30

1
Out of stock

5

SCREW (5X13)

09139-05092

4
Out of stock

6

NUT (M5)

09148-05052

4
Out of stock

7

CUSHION

09321-06026

1
Out of stock

8

CUSHION

09321-06036

1
Out of stock
