2024 Suzuki DL800DERCM4 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

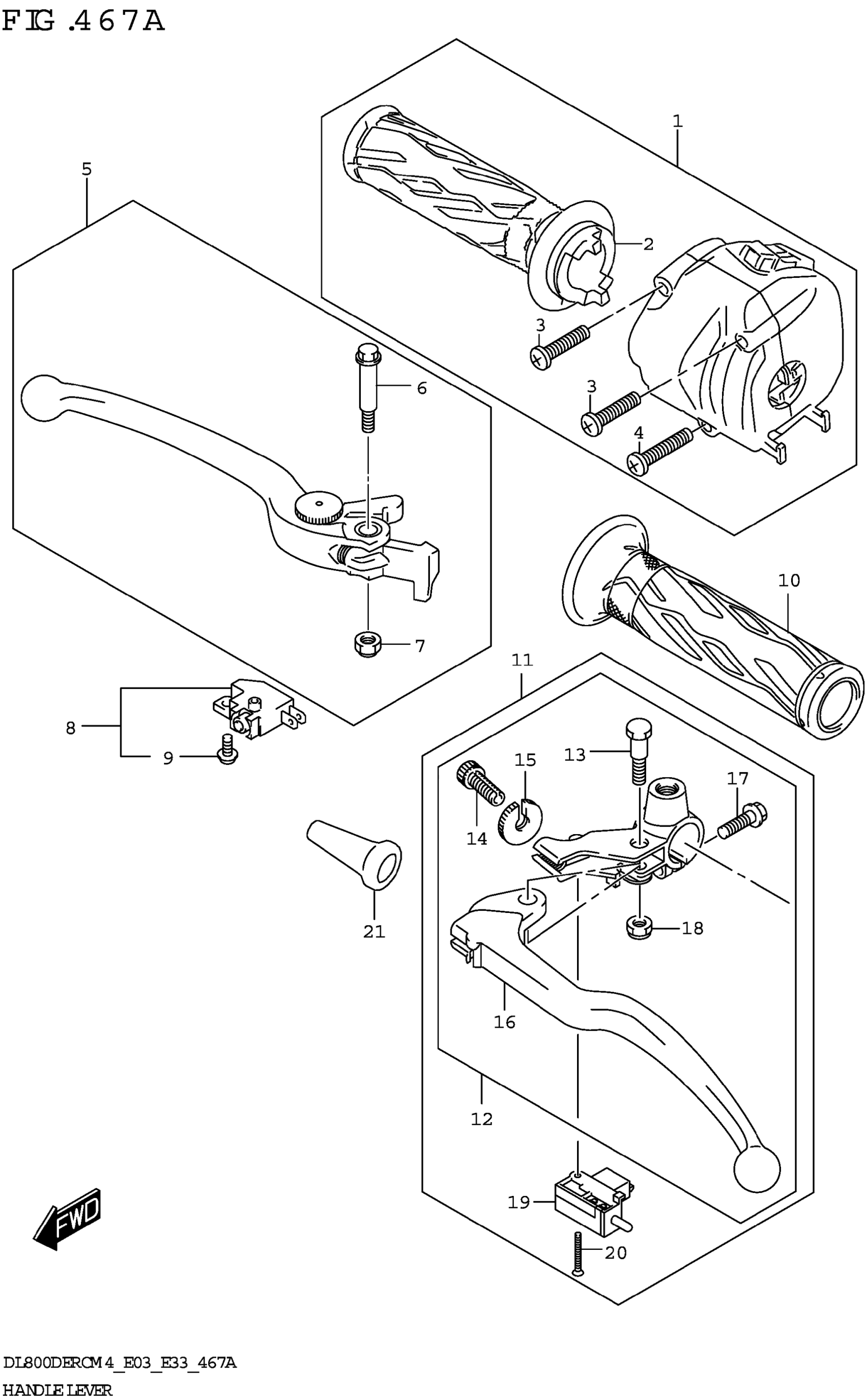

2024 Suzuki DL800DERCM4 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP ASSY,THROTTLE

57100-06L70

1
Out of stock

2

.GRIP,THROTTLE This part replaces 57110-06L00.

57110-06L10

1
Out of stock

3

.SCREW

02112-0530B

2
Out of stock

4

.SCREW

02112-0540B

1
Out of stock

5

LEVER ASSY,BRAKE

57300-14G40

1
Out of stock

6

.BOLT,LEVER PIVOT

57431-17H02

1
Out of stock

7

.NUT

08319-2106A

1
Out of stock

8

SWITCH ASSY,FR BRAKE

57460-14J02

1
Out of stock

9

.SCREW,WITH WASHER (4X12)

57465-17C00

1
Out of stock

10

GRIP,L

57211-21H01

1
Out of stock

11

LEVER SET,CLUTCH

57059-25D50

1
Out of stock

12

.LEVER ASSY,CLUTCH

57500-25D50

1
Out of stock

13

..BOLT,LEVER PIVOT

57431-21D11

1
Out of stock

14

..ADJUSTER,WIRE

57441-25L00

1
Out of stock

15

..NUT,LOCK

57442-08C01

1
Out of stock

16

..LEVER,CLUTCH

57621-25D10

1
Out of stock

17

..BOLT

01547-0620B

1
Out of stock

18

.NUT

08319-2106A

1
Out of stock

19

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

20

.SCREW,CLUTCH SWITCH

57562-41G01

1
Out of stock

21

BOOT, CLUTCH CABLE

58273-31001

1
Out of stock
