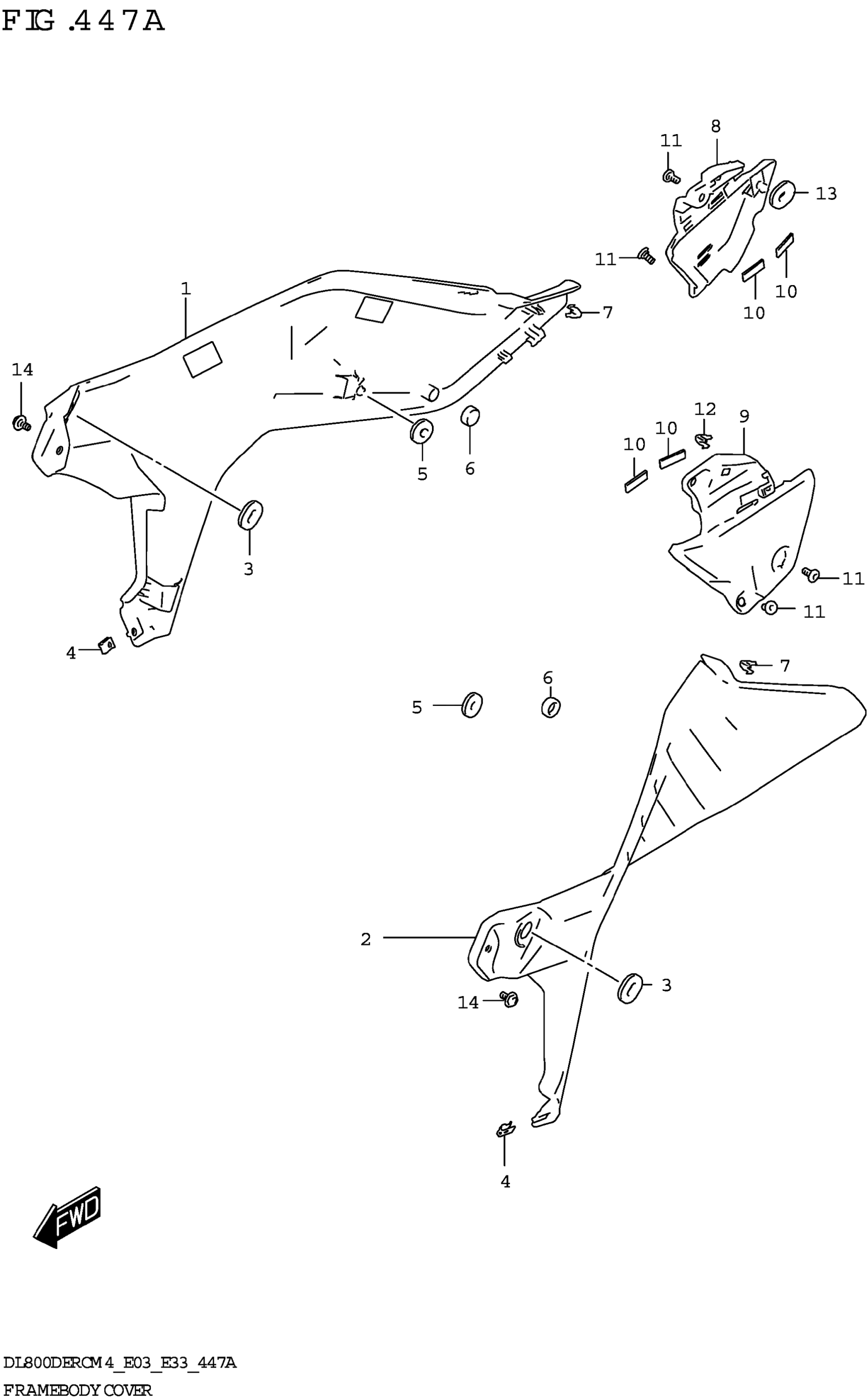

Suzuki DL800DERCM4 (2024) FRAME BODY COVER Diagram

#

Description
Price

1-1

COVER,FRAME,R (BLUE) | BODY COLOR:YU1,QU2

47110-25LA0-Y2W

$69.90

1-2

COVER,FRAME,R (BLACK) | BODY COLOR:QVP

47110-25LA0-019

$68.70

2-1

COVER,FRAME,L (BLUE) | BODY COLOR:YU1,QU2

47210-25LA0-Y2W

$70.68

2-2

COVER,FRAME,L (BLACK) | BODY COLOR:QVP

47210-25LA0-019

$59.06

3

CUSHION

94478-14J00

$5.92

4

NUT (M5)

09148-05052

$3.37

5

CUSHION (8x26x7)

09320-08018

$3.04

6

CUSHION (14X20X9)

09329-14003

$2.72

7

CLIP (10.5X14.3)

09409-08326

$2.48

8

COVER,FRAME LOWER,R

47121-25LA0

$16.13

9

COVER,FRAME LOWER,L

47221-25LA0

$16.13

10

CUSHION (10X30X2)

94429-21E00

$3.07

11

SCREW

09139-06245

$2.17

12

CLIP (10.5X14.3)

09409-08326

$2.48

13

CUSHION

09320-08029

$2.41

14

BOLT (6X12)

09111-06106

$2.44
