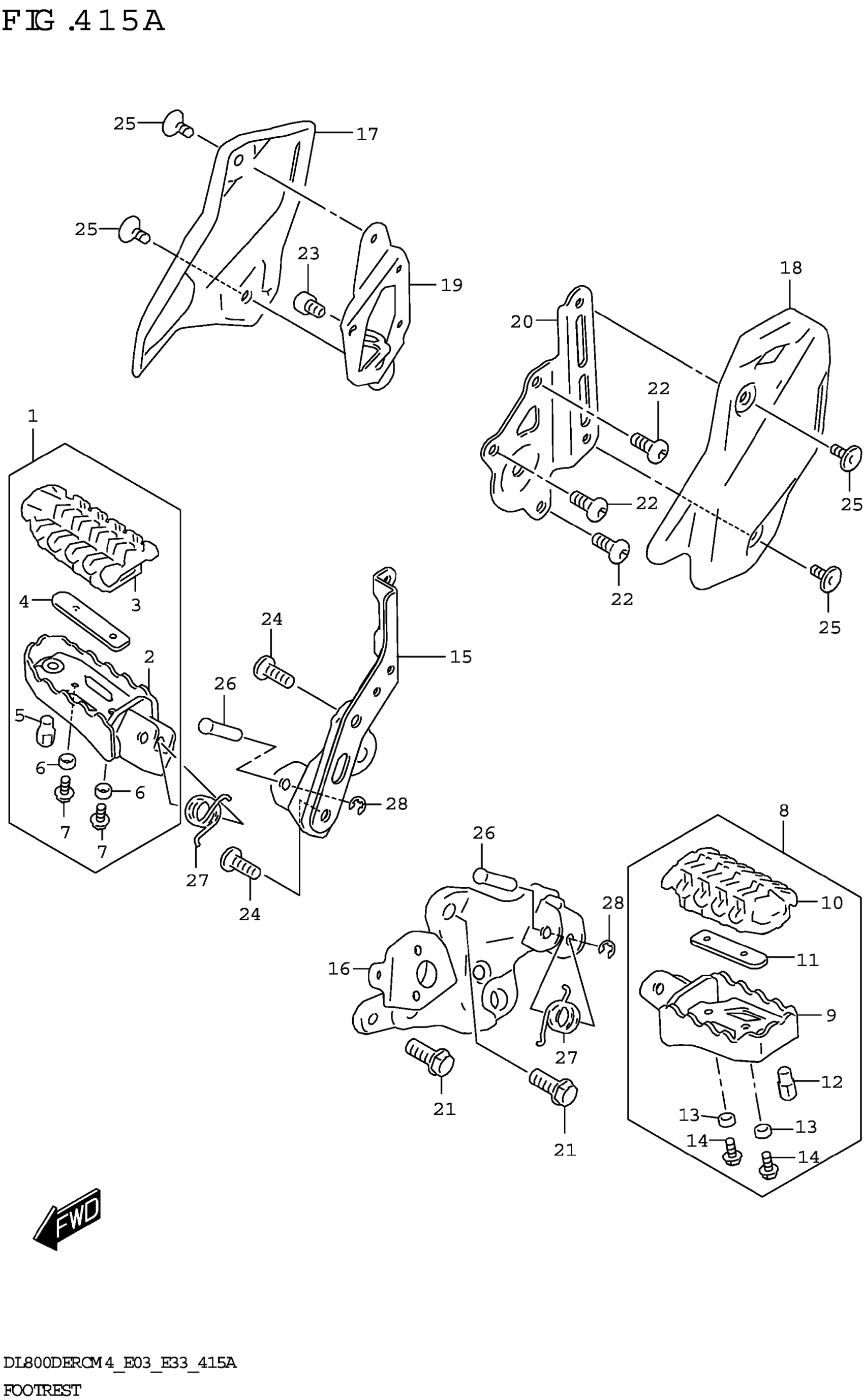

Suzuki DL800DERCM4 (2024) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,FRONT,R

43501-25LA0

$120.00

2

.BAR,FRONT FOOTREST RH

43530-06L00

$129.63

3

.RUBBER,FR FOOTREST

43551-06L00

$20.57

4

.PLATE,FR FOOTREST RUBBER

43552-06L00

$10.50

5

.BOLT,BANK SENSOR

43576-07D01

$8.85

6

.SPACER,FR FOOTREST RUBBER

47512-28K00

$3.68

7

.BOLT

01550-0512A

Unavailable

8

FOOTREST ASSY,FRONT,L

43502-25LA0

$120.00

9

.BAR,FRONT FOOTREST LH

43540-06L00

$129.63

10

.RUBBER,FR FOOTREST

43551-06L00

$20.57

11

.PLATE,FR FOOTREST RUBBER

43552-06L00

$10.50

12

.BOLT,BANK SENSOR

43576-07D01

$8.85

13

.SPACER,FR FOOTREST RUBBER

47512-28K00

$3.68

14

.BOLT

01550-0512A

Unavailable

15

BRACKET,FR FOOTREST,R

43510-25LB0

$114.67

16

BRACKET,FR FOOTREST,L This part replaces 43520-25LB0.

43520-25LB1

$99.46

17

GUARD,FR FOOTREST,R

43571-25LB0

$12.15

18

GUARD,FR FOOTREST,L

43572-25LB0

$12.15

19

BRACKET,GUARD FOOTREST,R

43580-25LB0

$14.72

20

BRACKET,GUARD FOOTREST,L

43590-25LB0

$35.83

21

BOLT (10X25)

09103-10415

$4.52

22

BOLT (8X20)

09106-08167

$3.35

23

BOLT (8X12)

09106-08171

Unavailable

24

BOLT

09106-08206

$2.33

25

SCREW (6X16)

09139-06221

$2.92

26

PIN (8X33.2)

09208-08010

$2.91

27

SPRING

09448-20012

$5.17

28

E-RING

08332-1106B

$2.00
