Description

Price

1

RING, SPEED SENSOR (50T)

54162-28K00

$57.53

2

BALANCER,WHEEL (20G)

55412-41F00

$8.12

3

NIPPLE,WHEEL

55326-25L00

$4.47

4

HUB,REAR

64111-25L20

$560.22

5

SPACER,REAR WHEEL BEARING

64731-25L00

$22.62

6-1

RIM,RR WHEEL(17 | GOLD BODY COLOR:YU1,YVB This part replaces 65311-25L00.

65311-25L20-Q18

Unavailable

6-2

RIM,RR WHEEL | BLACK BODY COLOR:QT7

65311-25L10

$351.43

7

SPOKE,REAR WHEEL,R

65321-25L00

$5.45

8

SPOKE,REAR WHEEL INNER,L

65323-25L00

$5.55

9

SPOKE,REAR WHEEL OUTER,L

65324-25L00

$5.63

10

SEAL,OIL (37X52X8)

09284-37002

$7.85

11

BEARING

08123-6205B

$25.93

12

ABSORBER,RR HUB SHOCK

64651-47H10

$25.52

13

BOLT

07130-0512A

$2.19

14

TIRE,REAR (150/70R17M/C 69H) This part replaces 65110-25L30.

65110-25L31

$254.74

15

TUBE ASSY,WHEEL INNER This part replaces 65200-25L00.

65200-25L01

$60.90

16

PROTECTOR,WHEEL INNER TUBE

65261-25L00

$5.08

17

AXLE,REAR

64711-25L00

$75.23

18

NUT

64721-13K00

$12.61

19

WASHER,REAR AXLE

64723-25L00

$8.03

20

RETAINER,RR SPROCKET DRUM

64733-44G00

$29.15

21

SPACER,REAR AXLE,R

64741-25L00

$26.22

22

SPACER,RR AXLE,L

64751-44G00

$35.17

23

SPROCKET,REAR

64511-25L20

$97.12

24

DRUM,RR SPROCKET

64610-47H00

$313.78

25

BEARING (32X65X17)

09262-32024

$39.40

26

SEAL,OIL (39X65X7)

09285-39001

$10.62

27

NUT

08319-3110A

$2.73

28

DISC,REAR BRAKE

69211-06L10

$146.22

29

BOLT (8X21)

09106-08160

$3.57

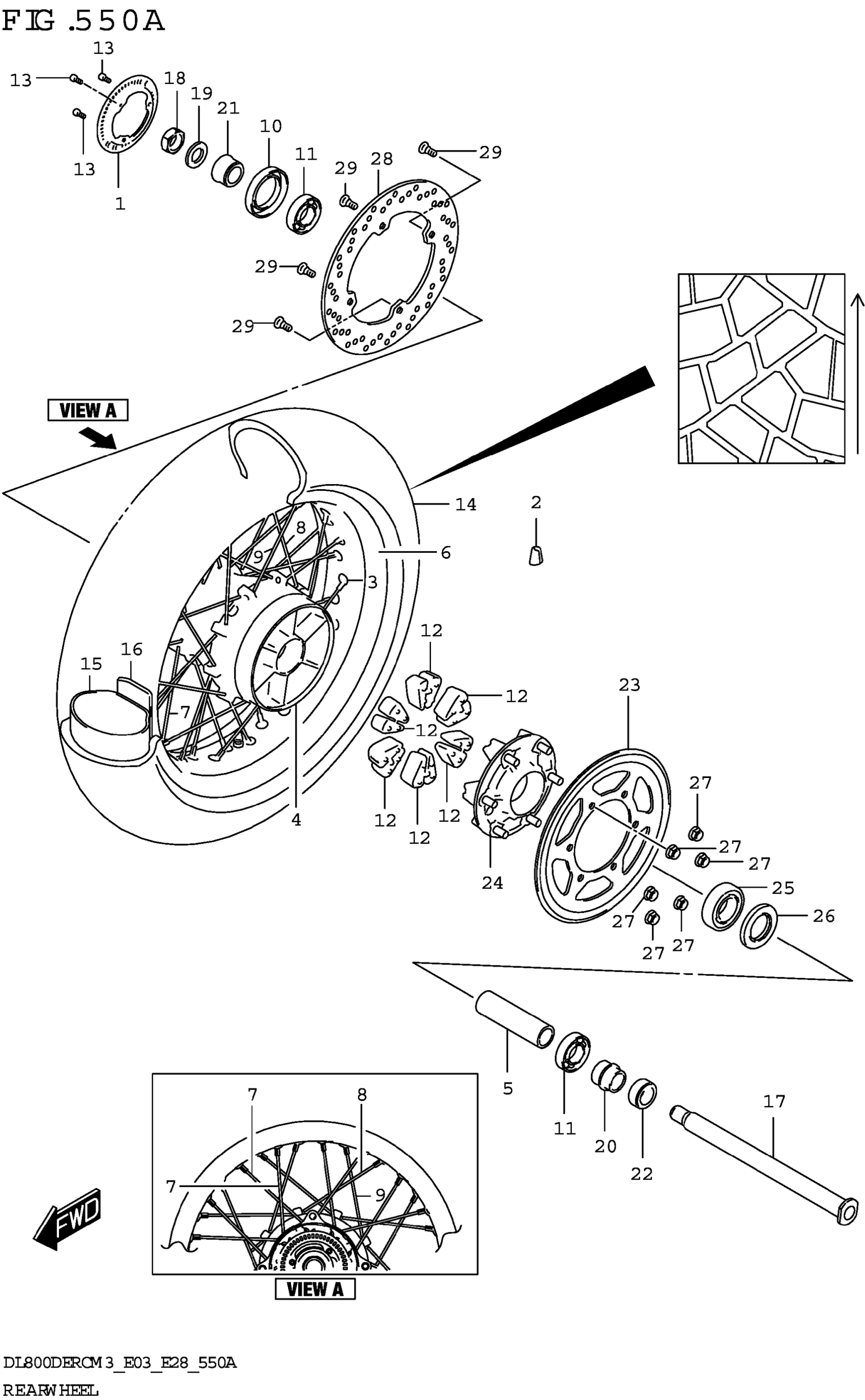

Suzuki DL800DERCM3 (2023) REAR WHEEL Diagram
