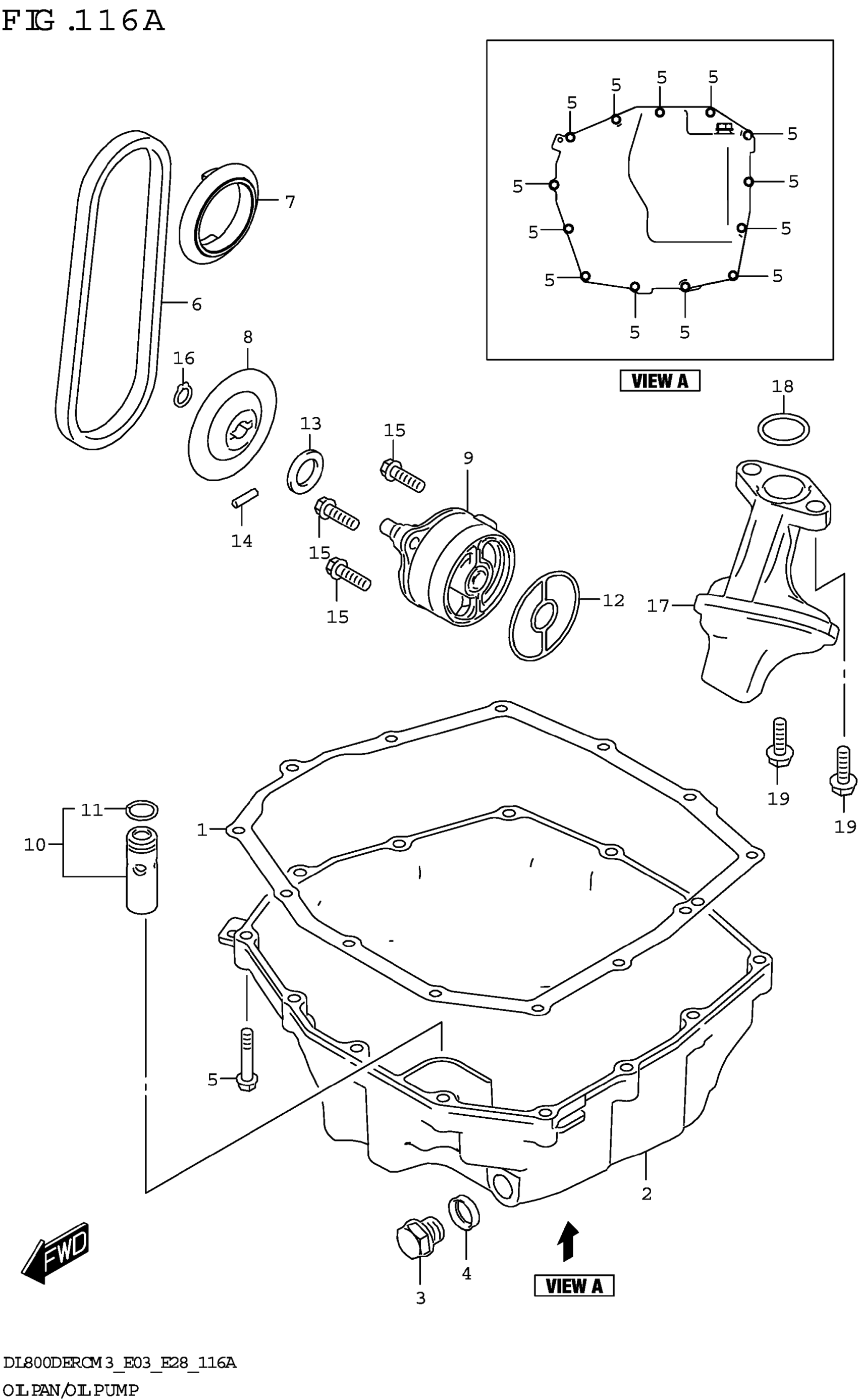

Suzuki DL800DERCM3 (2023) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

.GASKET,OIL PAN

11489-25L00

$15.98

2

PAN,OIL

11511-25L00

$142.07

3

PLUG (14X20) | OIL DRAIN

09247-14036

$6.17

4

GASKET (13.8X18.8X4.8) | OIL DRAIN

09168-14002

$2.26

5

BOLT

01547-0630A

$2.32

6

CHAIN ASSY,OIL PUMP DRIVE

16310-25L00

$16.53

7

SPROCKET,OIL PUMP DRIVE (NT:2 | )

16321-01H00

$76.88

8

SPROCKET,OIL PUMP DRIVEN

16331-25L00

$47.45

9

PUMP ASSY,ENG OIL

16400-25L00

$122.63

10

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$50.04

11

.O-RING (D:1.9,ID:13)

09280-13004

$2.17

12

O-RING

16491-33E00

$6.70

13

SHIM (10X18X0.5)

09181-10158

$1.97

14

PIN (4X15.8)

09261-04009

$1.56

15

BOLT

01547-0620A

$2.03

16

CIRCLIP

08331-31109

$1.78

17

STRAINER,ENG OIL

16520-25L00

$35.22

18

O-RING

09280-22024

$2.90

19

BOLT (6X20)

01550-0620A

$1.97
