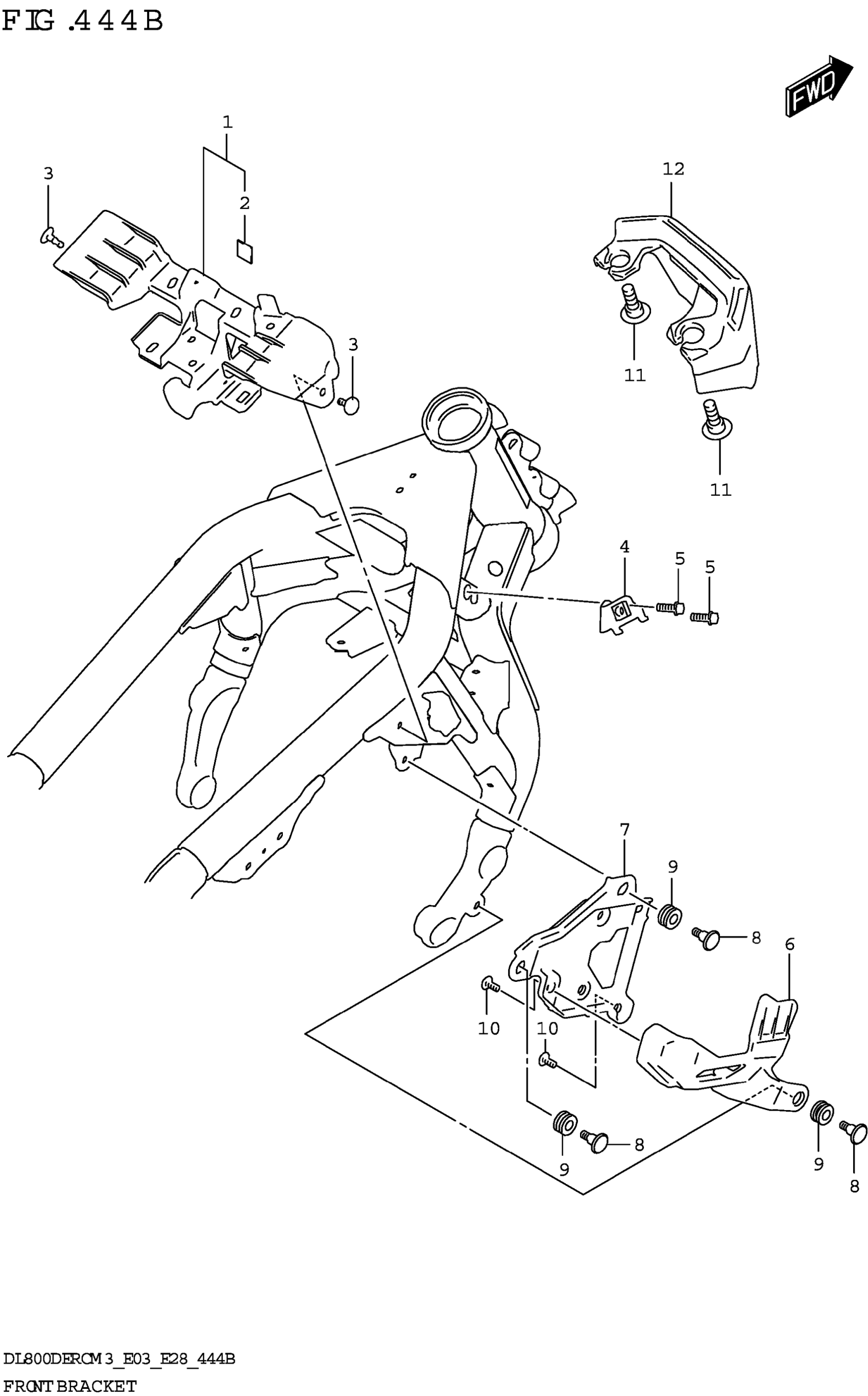

Suzuki DL800DERCM3 (2023) FRONT BRACKET Diagram

#

Description
Price

1

BRACKET,COUPLER

47430-25L00

$19.97

2

.CUSHION (15X15X1)

94429-20K00

$2.48

3

CLIP

94479-35F00

$5.62

4

BRACKET,HORN

46420-25L00

$7.70

5

BOLT

01547-0616B

$2.45

6

GUARD,RECTIFIER

47436-25L00

$12.88

7

HOLDER,RECTIFIER

47437-25L00

$13.73

8

SCREW (6X20)

09139-06211

$3.44

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

SCREW

03541-0512A

$1.49

11

BOLT (5X16)

09139-05073

$3.85

12

GUARD,KEY CYLINDER

94415-25LA0

$8.83
