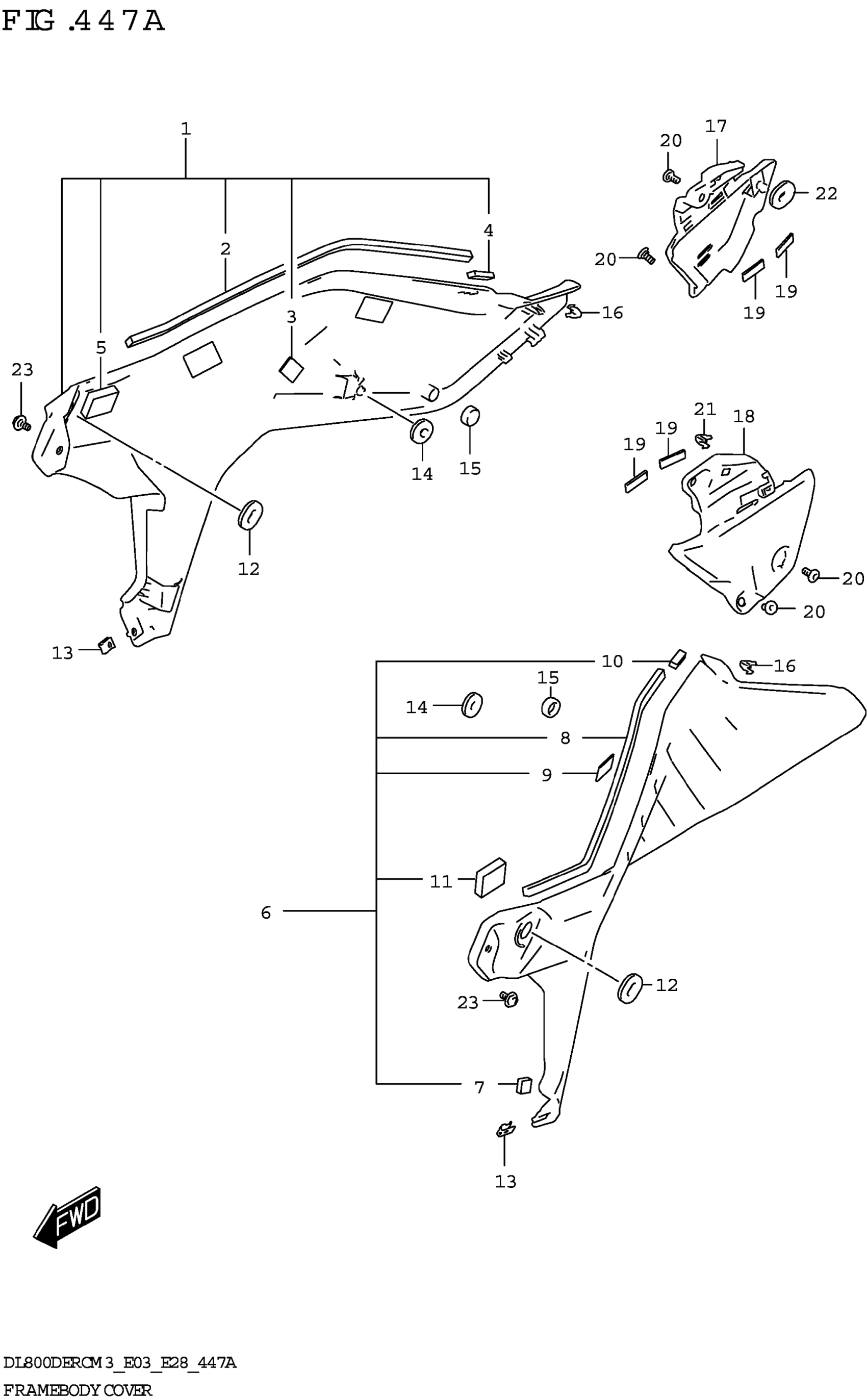

Suzuki DL800DERCM3 (2023) FRAME BODY COVER Diagram

#

Description
Price

1-1

COVER,FRAME,R (BLACK) | BODY COLOR:QT7

47110-25LA0-019

$77.17

1-2

COVER,FRAME,R (BLUE) | BODY COLOR:YU1,YVB

47110-25LA0-Y2W

$78.52

2

.CUSHION,FRAME COVER

47118-25LA0

$1.67

3

.CUSHION (20X20X1)

47123-17K00

$3.92

4

CUSHION,METER COVER (10X30X5)

51827-18K00

$5.60

5

.CUSHION,FRAME COVER

47119-25LA0

$1.67

6-1

COVER,FRAME,L (BLACK) | BODY COLOR:QT7

47210-25LA0-019

$78.03

6-2

COVER,FRAME,L (BLUE) | BODY COLOR:YU1,YVB

47210-25LA0-Y2W

$79.38

7

.CUSHION,REAR COMB

33652-48E00

$2.00

8

.CUSHION,FRAME COVER

47118-25LA0

$1.67

9

.CUSHION (20X20X1)

47123-17K00

$3.92

10

CUSHION,METER COVER (10X30X5)

51827-18K00

$5.60

11

.CUSHION,FRAME COVER

47119-25LA0

$1.67

12

CUSHION

94478-14J00

$5.42

13

NUT (M5)

09148-05052

$3.04

14

CUSHION (8x26x7)

09320-08018

$2.80

15

CUSHION (14X20X9)

09329-14003

$2.74

16

CLIP (10.5X14.3)

09409-08326

$2.45

17

COVER,FRAME LOWER,R

47121-25LA0

$18.22

18

COVER,FRAME LOWER,L

47221-25LA0

$18.22

19

CUSHION (10X30X2) | 0X2)

94429-21E00

$3.47

20

SCREW

09139-06245

$2.37

21

CLIP (10.5X14.3)

09409-08326

$2.45

22

CUSHION

09320-08029

$2.51

23

BOLT (6X12)

09111-06106

$2.28
