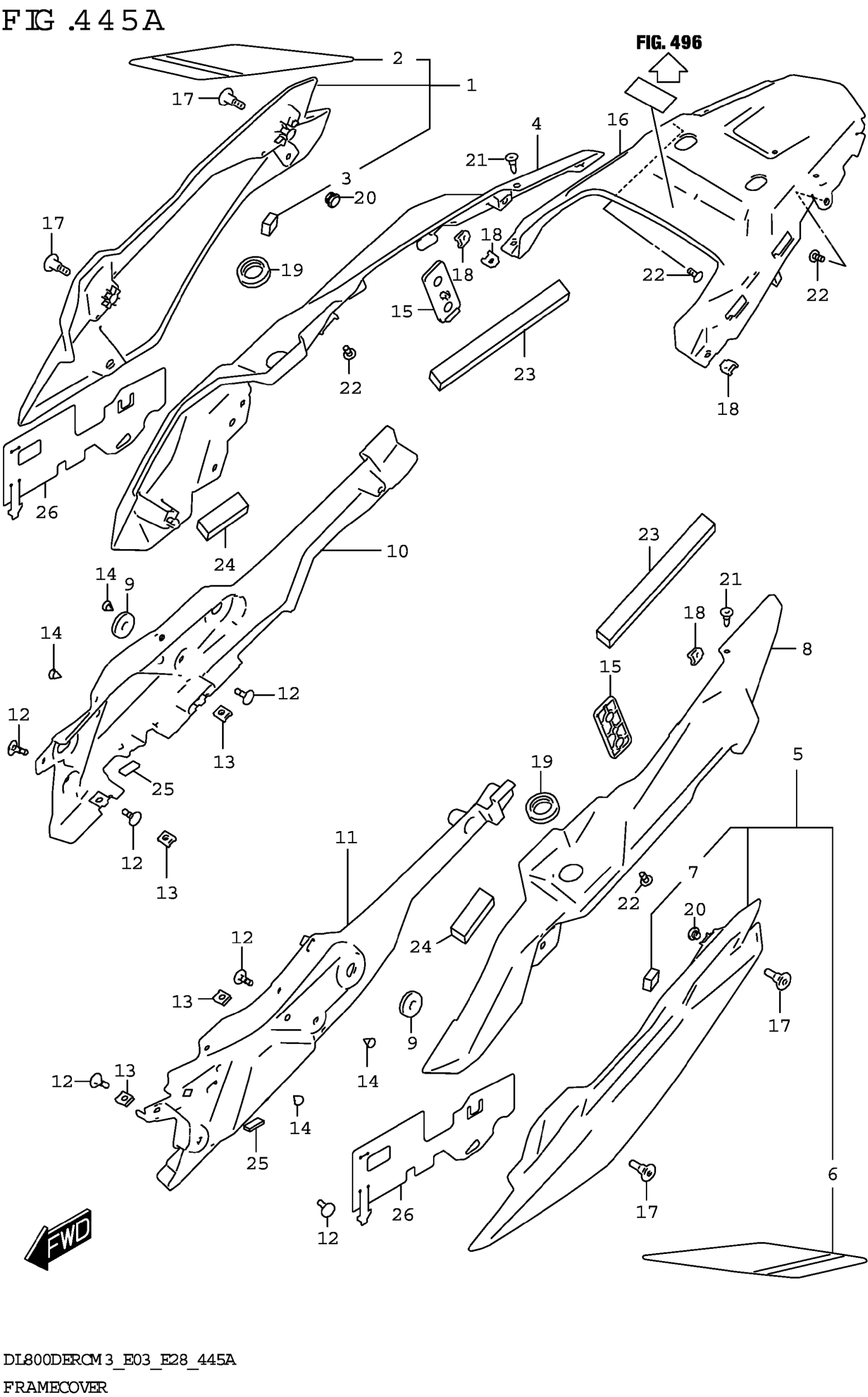

Suzuki DL800DERCM3 (2023) FRAME COVER Diagram

#

Description
Price

1-1

COVER,FRAME SIDE,R (BLACK) | BODY COLOR:QT7

47410-25L00-019

$33.42

1-2

COVER,FRAME SIDE,R (BLUE) | BODY COLOR:YU1

47410-25L00-Y2W

$33.10

1-3

COVER,FRAME SIDE,R | BODY COLOR:YVB

47410-25L00-CTX

$34.07

2-1

.TAPE,FRAME COVER SIDE,R | BODY COLOR:QT7

68135-25L00-CJ2

$11.62

2-2

.TAPE,FRAME COVER SIDE,R | BODY COLOR:YU1

68135-25L00-CJ3

$11.62

2-3

.TAPE,FRAME COVER SIDE,R | BODY COLOR:YVB

68135-25L00-CJ4

$11.62

3

.CUSHION

47117-25LA0

$0.63

4-1

COVER,FRAME REAR,R (GRAY) | BODY COLOR:QT7

47411-25LA0-QT7

$58.52

4-2

COVER,FRAME REAR,R (YELLOW) | BODY COLOR:YU1

47411-25LA0-YU1

$58.52

4-3

COVER,FRAME REAR,R (BLACK) | BODY COLOR:YVB

47411-25LA0-YVB

$58.52

5-1

COVER,FRAME SIDE,L (BLACK) | BODY COLOR:QT7

47510-25L00-019

$33.42

5-2

COVER,FRAME SIDE,L (BLUE) | BODY COLOR:YU1

47510-25L00-Y2W

$33.10

5-3

COVER,FRAME SIDE,L | BODY COLOR:YVB

47510-25L00-CTX

$34.07

6-1

.TAPE,FRAME COVER SIDE,L | BODY COLOR:QT7

68145-25L00-CJ2

$11.62

6-2

.TAPE,FRAME COVER SIDE,L | BODY COLOR:YU1

68145-25L00-CJ3

$11.62

6-3

.TAPE,FRAME COVER SIDE,L | BODY COLOR:YVB

68145-25L00-CJ4

$11.62

7

.CUSHION

47117-25LA0

$0.63

8-1

COVER,FRAME REAR,L (GRAY) | BODY COLOR:QT7

47511-25LA0-QT7

$58.52

8-2

COVER,FRAME REAR,L (YELLOW) | BODY COLOR:YU1

47511-25LA0-YU1

$58.52

8-3

COVER,FRAME REAR,L (BLACK) | BODY COLOR:YVB

47511-25LA0-YVB

$58.52

9

CUSHION (8x26x7)

09320-08018

$2.80

10

COVER,FRAME INNER,R

47311-25LA0

$10.97

11

COVER,FRAME INNER,L

47321-25LA0

$10.97

12

CLIP

94479-35F00

$5.14

13

NUT (M5)

09148-05038

$1.97

14

PLUG (OD:10)

09250-06017

$2.74

15

SPACER,FRAME COVER

47510-28K00

$20.00

16-1

COVER,FRAME REAR CTR (YELLOW) | BODY COLOR:QT7

47711-25LA0-YU1

$40.32

16-2

COVER,FRAME REAR CTR (BLUE) | BODY COLOR:YU1,YVB

47711-25LA0-Y2W

$36.85

17

SCREW

47913-06L00

$1.80

18

NUT (M5)

09148-05045

$2.51

19

CUSHION (20X32X9)

09320-20011

$2.71

20

CUSHION

09321-05023

$2.20

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

22

SCREW

03541-0512A

$1.37

23

CUSHION,FRAME COVER REAR

47213-25LA0

$1.67

24

CUSHION,FRAME COVER REAR

47215-25LA0

$1.08

25

CUSHION,CTR PANEL UPR

94413-08F00

$5.02

26

SHIELD,FRAME COVER

47166-25LA0

$12.38
