2023 Suzuki DL800DERCM3 CAM Chain Diagram

← All diagrams

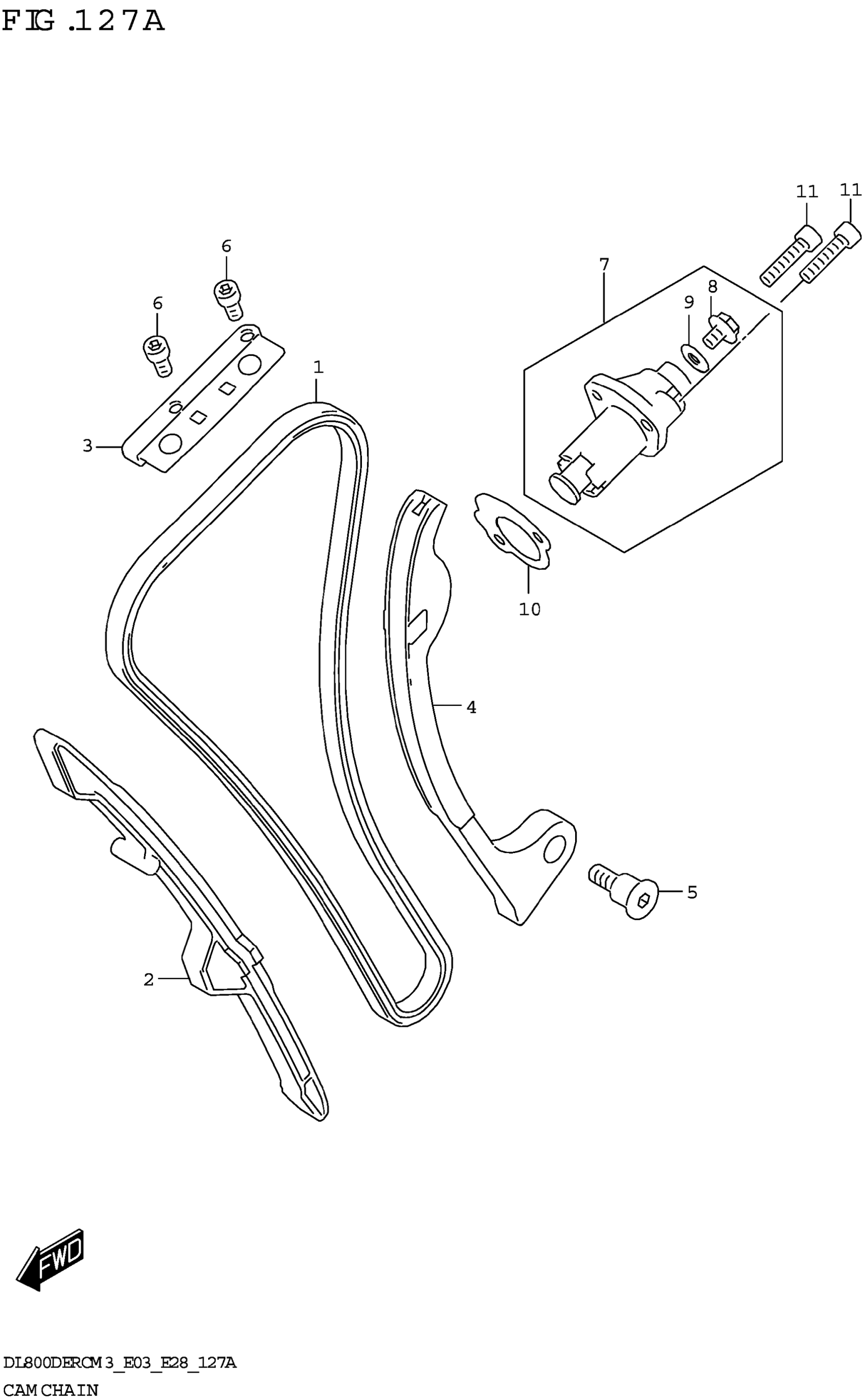

Find the part on the CAM Chain diagram for your 2023 Suzuki DL800DERCM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki DL800DERCM3 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-25L00

1
Out of stock

2

GUIDE,CAM CHAIN NO.1

12771-25L00

1
Out of stock

3

GUIDE,CAM CHAIN NO.2

12782-25L00

1
Out of stock

4

TENSIONER,CAM CHAIN

12811-25L00

1
Out of stock

5

BOLT,CAM CHAIN TENSIONER

12812-31G00

1
Out of stock

6

BOLT

07130-0612A

2
Out of stock

7

ADJUSTER ASSY,TENSIONER

12830-25L00

1
Out of stock

8

.PLUG,TENSIONER ADJUSTER

12833-25L00

1
Out of stock

9

.GASKET,TENSIONER ADJUSTER

12837-49H00

1
Out of stock

10

.GASKET,TENSIONER ADJUSTER

12837-25L00

1
Out of stock

11

BOLT

07130-0625B

2
Out of stock
