Description

Price

1

JET,PISTON COOLING

11390-25L00

$31.65

2

BOLT (6X12)

09106-06075

$2.50

3

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

4

GASKET (16X22X2)

09168-16002

$1.89

5

PLUG (14X12)

09248-14011

$2.80

6

PLUG (16X8)

09248-16012

$4.19

7

O-RING (D:1.2,ID:4)

09280-04004

$1.76

8

JET (#140)

09493-28012

$18.33

9

GASKET (10X14X3.6)

09168-10002

$1.96

10

PLUG (10X10)

09248-10010

$3.82

11

JET,AIR

09493-22010

Unavailable

12

BOLT (L:165)

09103-12143

$12.88

13

BOLT (L:145)

09103-12144

$10.27

14

NUT

09159-12072

Unavailable

15

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99

16

UNION,OIL STAND

16591-06B01

$6.45

17

SWITCH ASSY,OIL PRESSURE

37820-33D11

$27.58

18

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.92

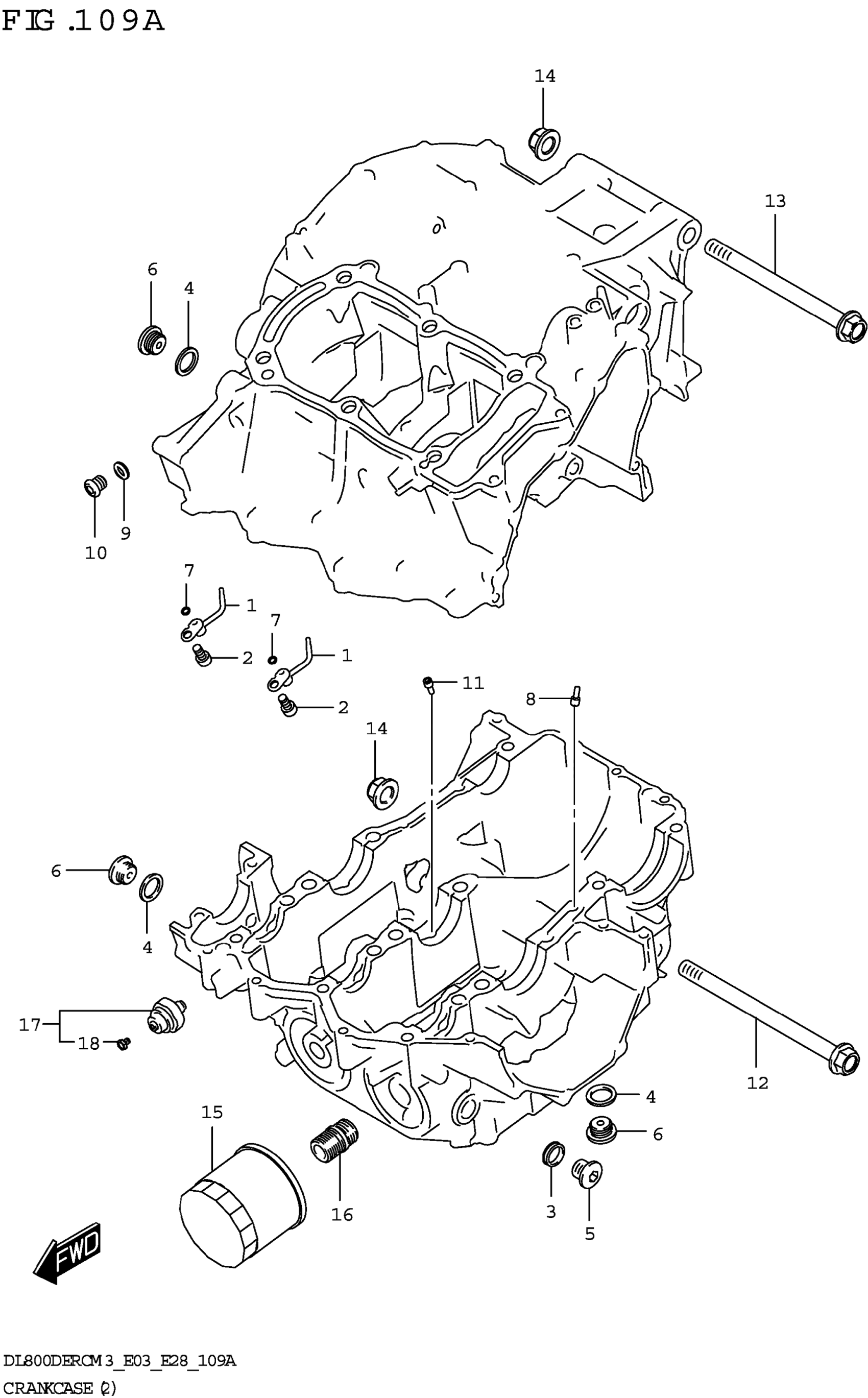

Suzuki DL800DERCM3 (2023) CRANKCASE (2) Diagram
