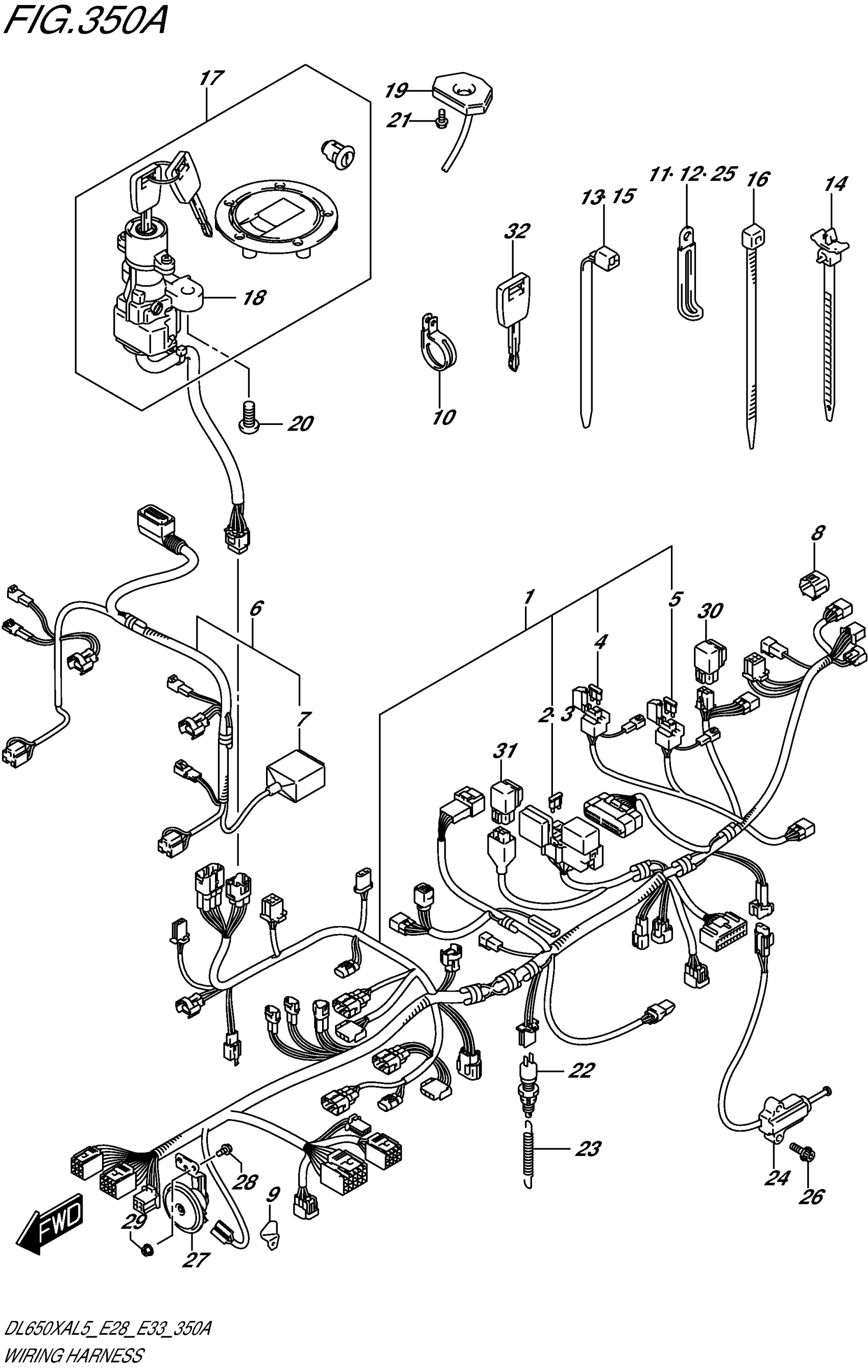

Suzuki DL650XAL5 (2015) WIRING HARNESS (DL650XAL5 E28) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-11JH0

$929.87

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

FUSE (15A)

09481-15101

$2.53

5

FUSE (25A)

09481-25103

Unavailable

6

HARNESS, WIRING NO.2 This part replaces 36620-11J01.

36620-11J02

$267.20

7

CAP

36618-47H00

$22.23

8

CAP,TS This part replaces 36654-06J00.

36654-06J01

$13.85

9

GUIDE, WIRING HARNESS

36711-11J00

Unavailable

10

CLAMP

09403-26401

Unavailable

11

CLAMP (L:45)

09404-06429

$1.83

12

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

13

CLAMP (L:125)

09407-14403

$2.26

14

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

15

CLAMP (L:165)

09407-18402

$2.19

16

CLAMP (L:145)

09407-14407

$3.57

17

LOCK SET This part replaces 37000-11851.

37000-11853

$416.93

18

LOCK ASSY,STEER This part replaces 37100-11J11.

37100-11J12

$184.15

19

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.74

20

BOLT (8X20)

09139-08016

$3.37

21

BOLT

01547-0512B

$3.05

22

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

23

SPRING

09443-06012

$3.16

24

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$60.37

25

CLAMP (L:45)

09404-06429

$1.83

26

BOLT

01550-0616B

$2.48

27

HORN ASSY

38500-11J00

$83.55

28

BOLT (6X16)

09118-06017

$2.12

29

NUT

08316-1006B

$2.50

30

RELAY ASSY

38740-24X50

$45.20

31

RELAY ASSY

38740-24X50

$45.20

32

KEY, BLANK | OPT

37146-11J00

$51.62
