2015 Suzuki DL650XAL5 Under Cowling SET Diagram

← All diagrams

Find the part on the Under Cowling SET diagram for your 2015 Suzuki DL650XAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

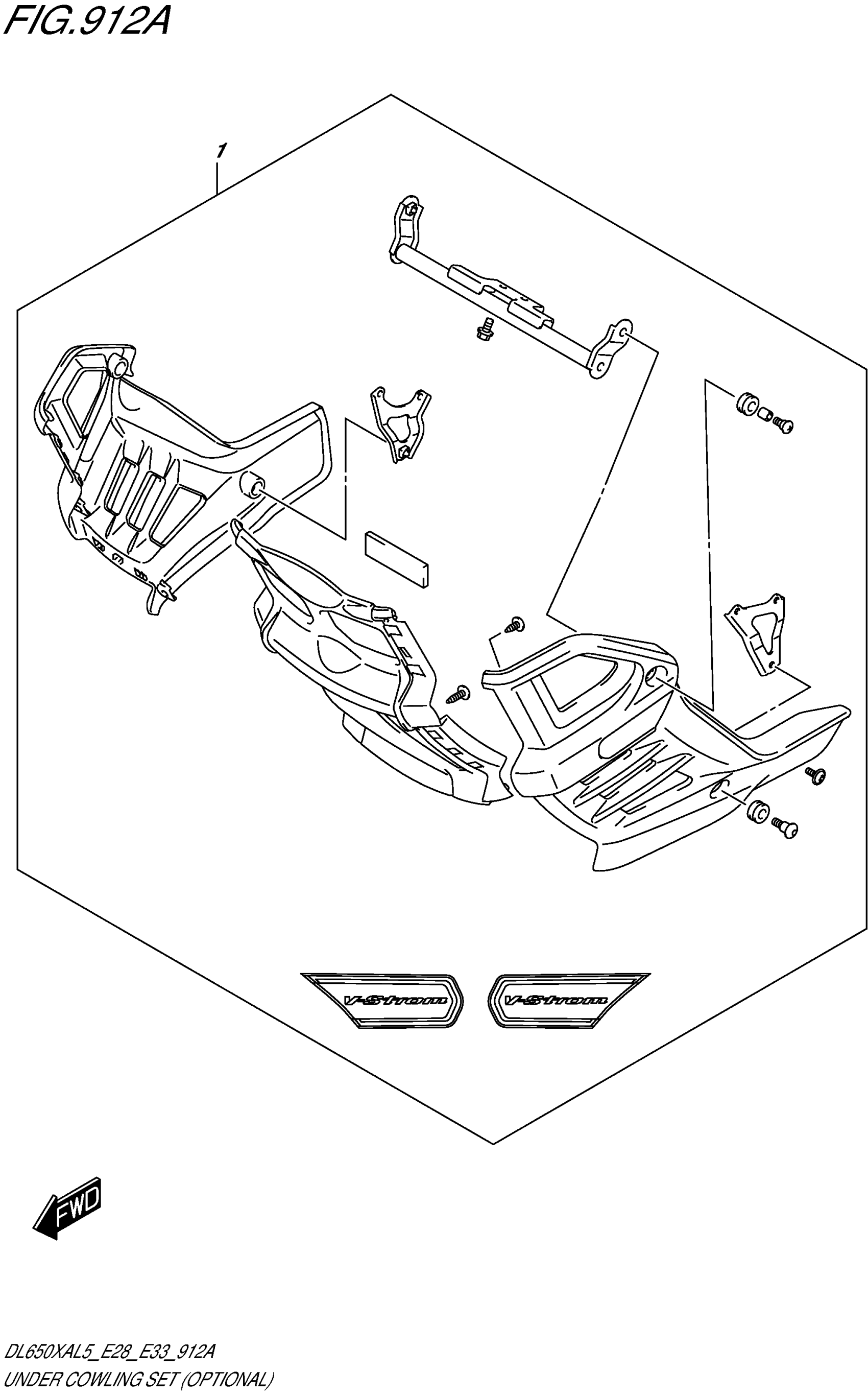

2015 Suzuki DL650XAL5 Under Cowling SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING SET, UNDER This part replaces 94400-11820-291.

94400-11830-291

1
Out of stock
← Stand Optional →
