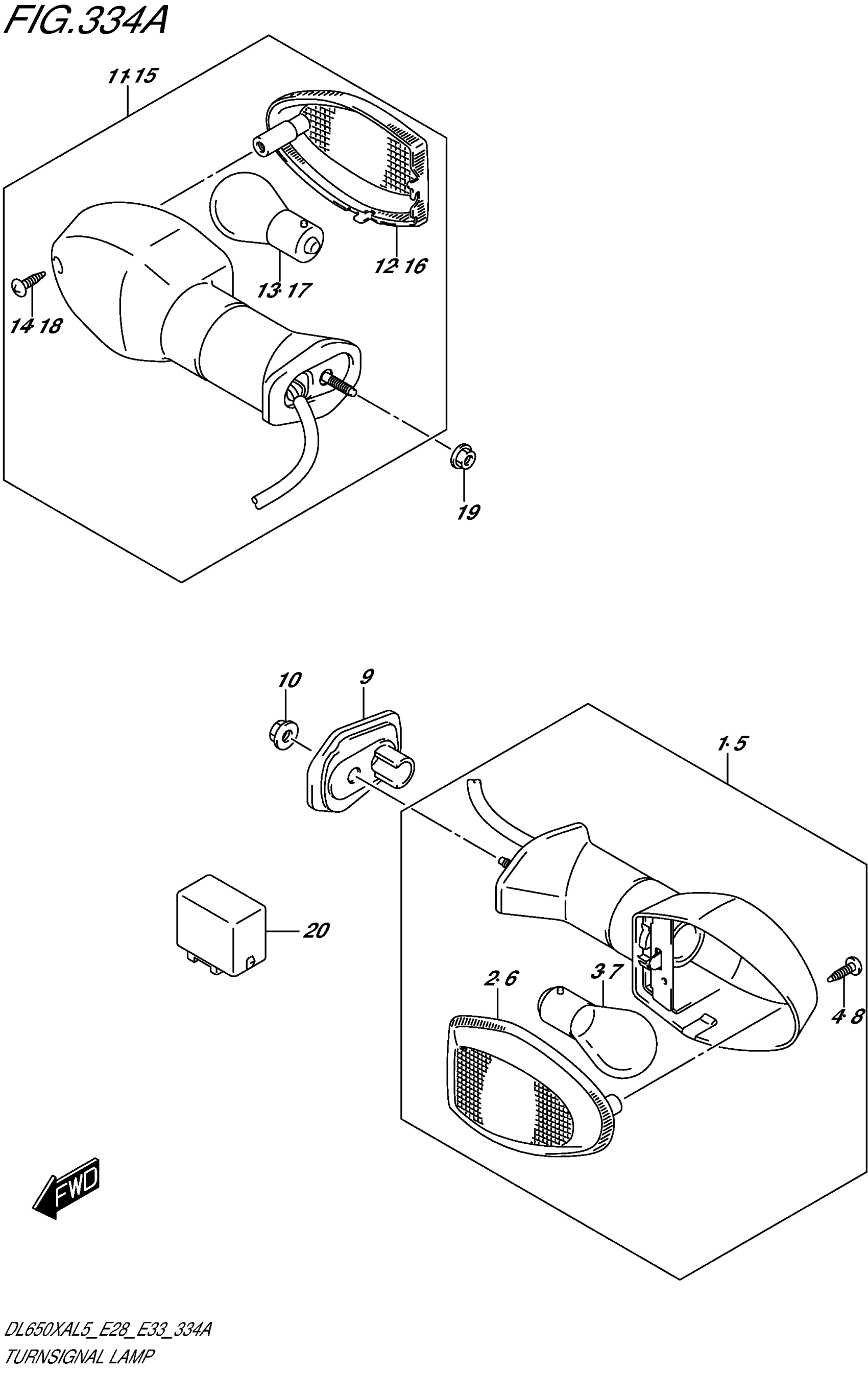

Suzuki DL650XAL5 (2015) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURNSIGNAL RH

35601-08J01

$95.40

2

LENS

35612-08J01

$12.23

3

BULB (12V,21W)

09471-12045

$3.27

4

SCREW

03211-0414B

$1.77

5

LAMP ASSY, FR TURNSIGNAL LH

35602-08J01

$93.60

6

LENS

35632-08J01

$12.10

7

BULB (12V,21W)

09471-12045

$3.27

8

SCREW

03211-0414B

$1.77

9

PLATE, FR TURNSIGNAL

35629-18G00

$2.42

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, RR TURNSIGNAL RH

35603-08J11

$185.10

12

LENS

35632-08J01

$12.10

13

BULB (12V,21W)

09471-12045

$3.27

14

SCREW

03211-0414B

$1.77

15

LAMP ASSY, RR TURNSIGNAL LH

35604-08J11

$137.12

16

LENS

35612-08J01

$12.23

17

BULB (12V,21W)

09471-12045

$3.27

18

SCREW

03211-0414B

$1.77

19

NUT

08319-3105A

$2.27

20

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
