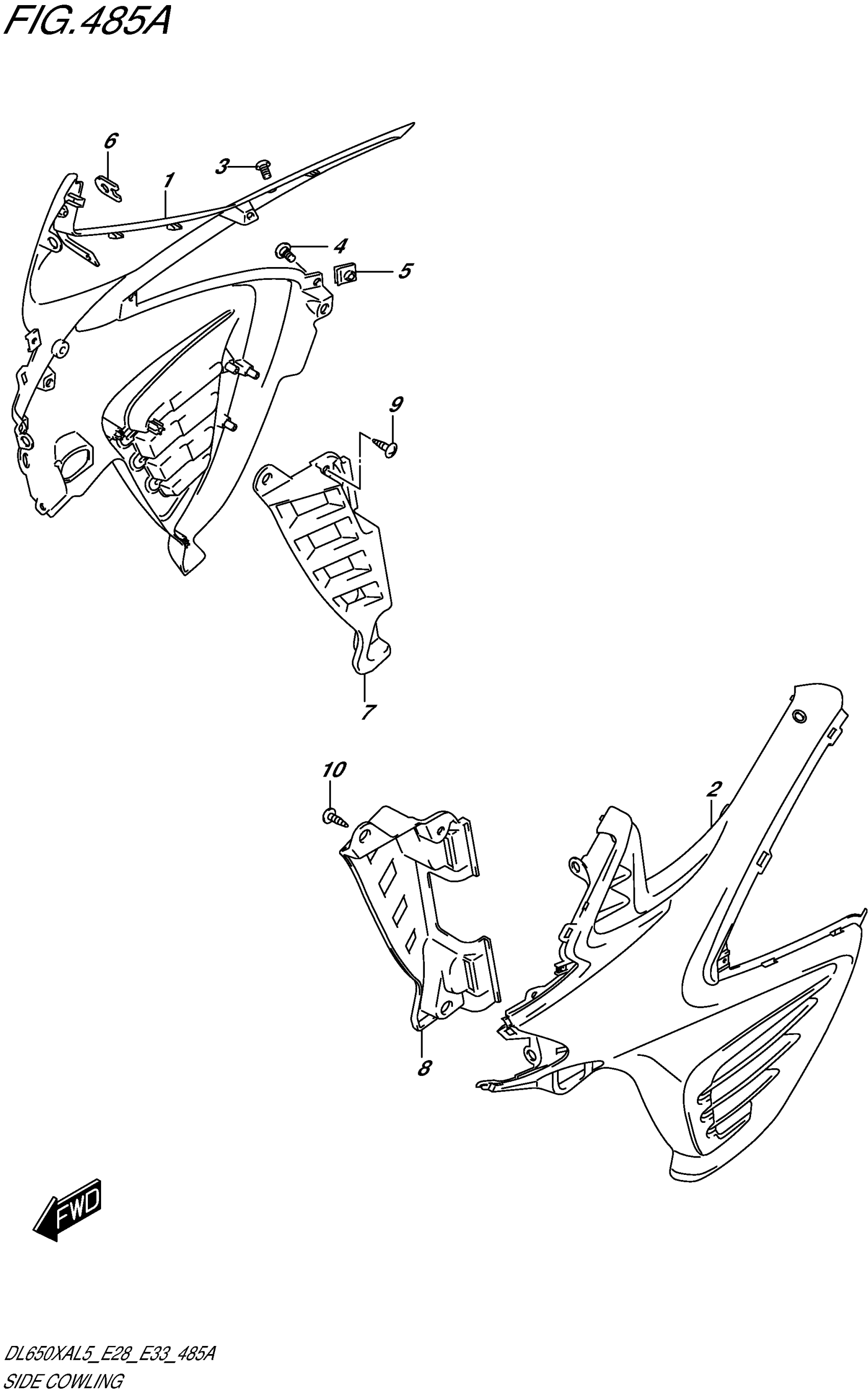

Find the part on the Side Cowling diagram for your 2015 Suzuki DL650XAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DL650XAL5 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, SIDE RH

94421-11J00

1
Out of stock

2

COWLING, SIDE LH

94431-11J00

1
Out of stock

3

SCREW (6X10)

09139-06051

2
Out of stock

4

SCREW (6X12)

09139-06144

2
Out of stock

5

NUT

09148-05052

6
Out of stock

6

NUT

09148-06020

2
Out of stock

7

COVER, INNER RH

94462-11J01

1
Out of stock

8

COVER, INNER LH

94463-11J01

1
Out of stock

9

SCREW | RH

03241-0512B

3
Out of stock

10

SCREW | LH

03541-0516A

3
Out of stock
