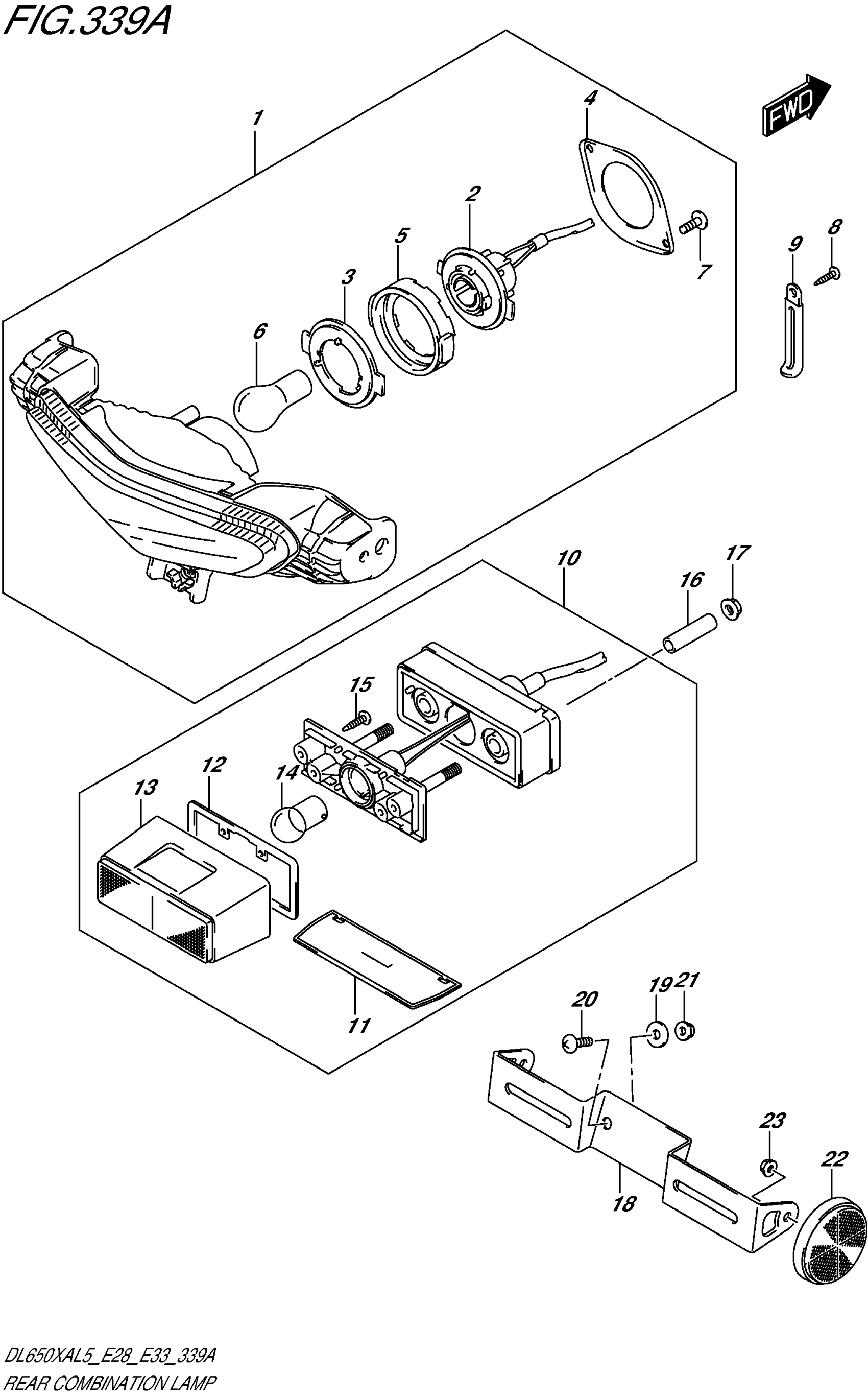

Suzuki DL650XAL5 (2015) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-11J01

$227.08

2

SOCKET & CORD

35718-11J01

$67.17

3

PLATE, NO.1

35716-48B21

$22.82

4

PLATE, NO.2

35736-48B21

$24.73

5

CUSHION This part replaces 35765-42E00.

35765-48B21

$14.63

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.26

7

SCREW

03211-0412A

$0.73

8

SCREW

03541-0616A

$2.07

9

CLAMP (L:45)

09404-06429

$1.88

10

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

$99.83

11

LENS

35912-41G01

$14.98

12

GASKET

35913-41G00

$16.07

13

COVER

35917-41G00

$39.85

14

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

15

SCREW

03211-0416A

$1.48

16

SPACER (6.5X9X33.3)

09180-06278

$4.92

17

NUT

09159-06096

$3.42

18

BRACKET,LICENSE PLATE

35927-14J30

$17.72

19

WASHER (6.5X20X1.2)

09160-06077

$1.97

20

SCREW

02142-0616A

$1.41

21

NUT

08316-1006A

$2.25

22

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

23

NUT

08316-1005A

$2.25
