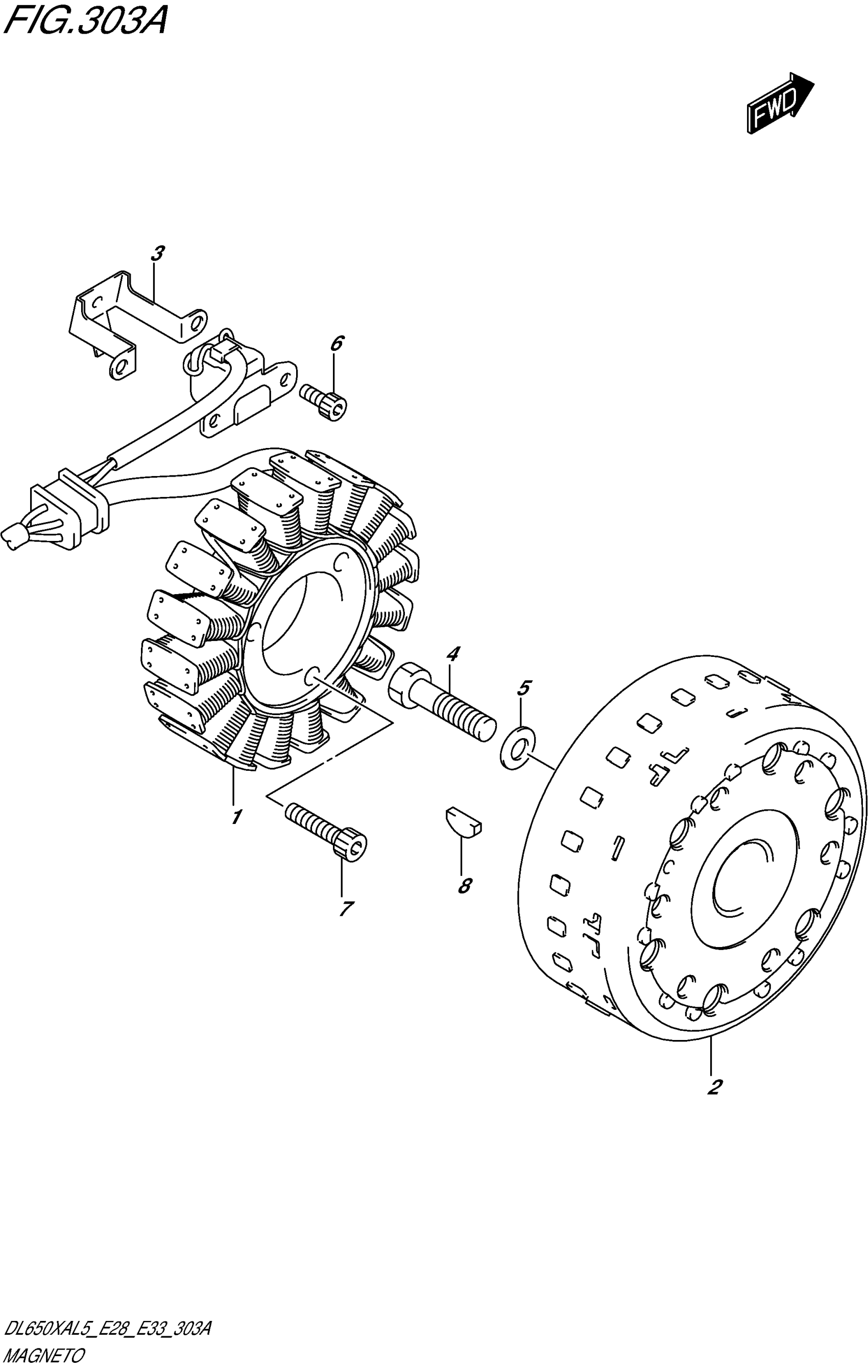

Suzuki DL650XAL5 (2015) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-17G11.

32101-17G13

$444.02

2

ROTOR ASSY

32102-17G10

Unavailable

3

CLAMP,MAGNETO LEAD

32371-19F10

Unavailable

4

BOLT (12X40)

09103-12004

$4.35

5

WASHER (12X30X3.0)

09160-12036

$4.28

6

BOLT

07130-0512A

$2.19

7

BOLT

07130-0635A

$2.90

8

KEY

09420-04008

$3.08
