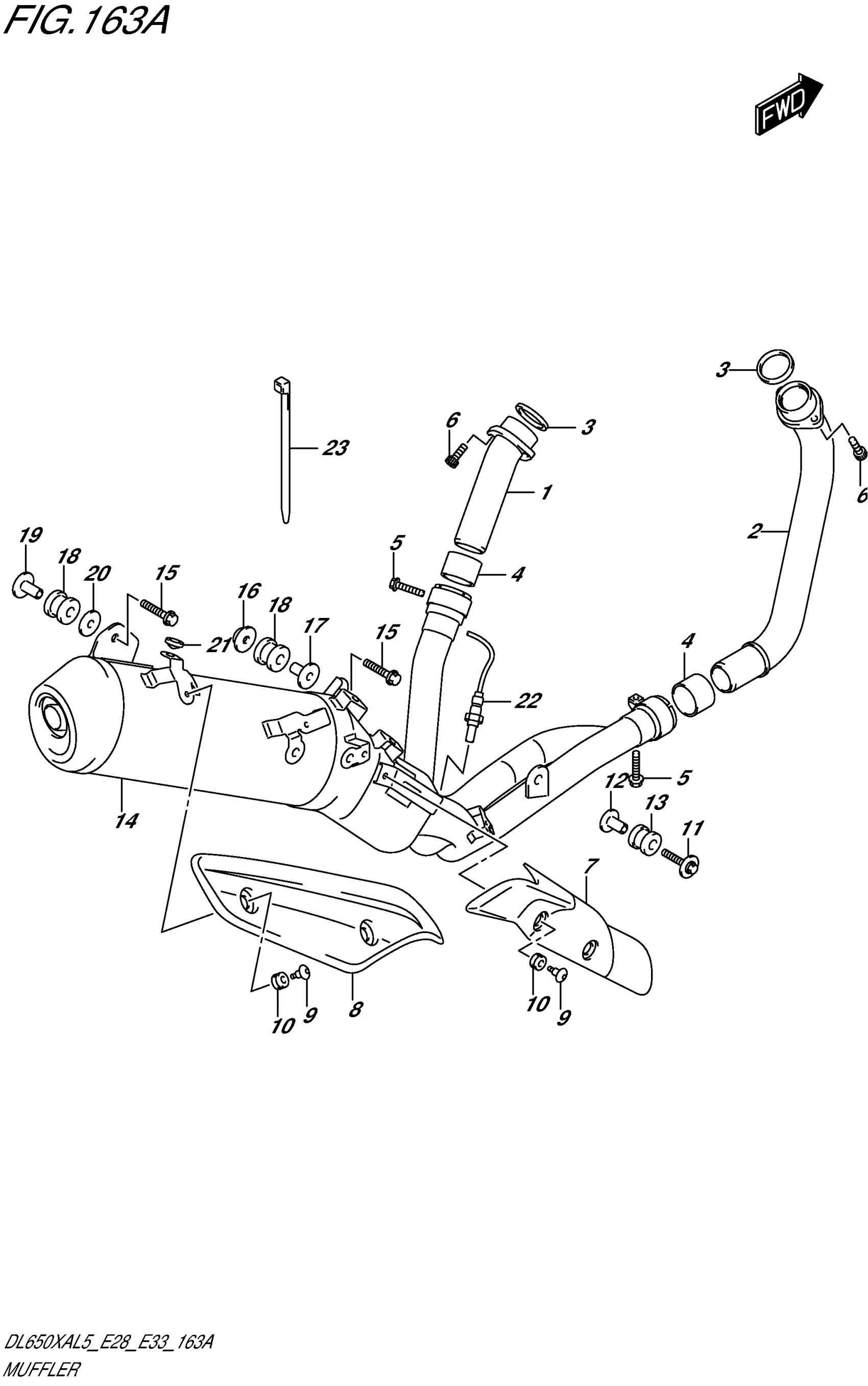

Suzuki DL650XAL5 (2015) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RR

14150-27G10

Unavailable

2

PIPE, EXHAUST FR

14160-17G10

$232.50

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

CONNECTOR,EXHAUST

14771-32E10

$26.20

5

BOLT (8X35)

09103-08365

$3.91

6

BOLT (8X25)

09106-08165

$4.03

7

COVER, MUFFLER FRONT

14771-11J00

$48.38

8

COVER, MUFFLER (SILVER)

14781-11J00-YUS

$116.65

9

SCREW (6X20)

09139-06126

$4.04

10

CUSHION

09320-08070

$11.57

11

BOLT (8X45)

09118-08152-A05

$5.24

12

SPACER (8.6X12X24.2)

09180-08152

$5.83

13

CUSHION

09320-12048

$5.11

14

MUFFLER

14305-11J00-H01

Unavailable

15

BOLT (8X45)

09103-08358

$3.42

16

NUT, MUFFLER SPRT

14414-27G00

Unavailable

17

SPACER (8.6X12X27.1)

09180-08156

$6.70

18

CUSHION

09320-12049

$10.68

19

NUT, MUFFLER SPRT

14414-06G00

Unavailable

20

WASHER (8.5X33X1.5)

09160-08146

$2.60

21

CUSHION

09321-10018

$5.45

22

SENSOR, OXYGEN

18213-17G10

$391.63

23

CLAMP (L:145)

09407-14407

$3.57
