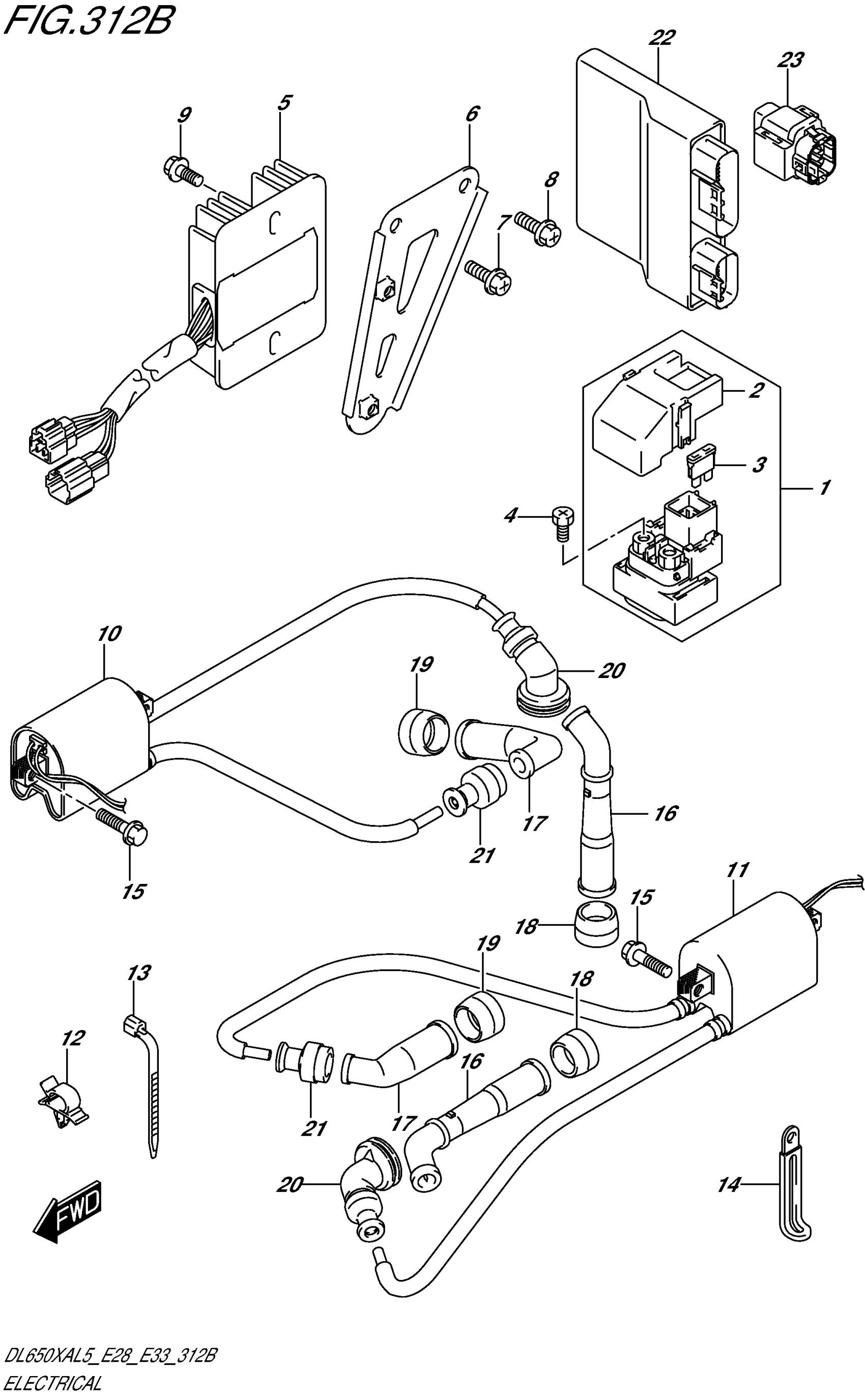

Suzuki DL650XAL5 (2015) ELECTRICAL (DL650XAL5 E33) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

COVER, RELAY ASSY

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

BRACKET, RECT FTG

32830-11J00

Unavailable

7

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

8

SCREW

02162-0610A

Unavailable

9

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

10

COIL ASSY, IGNITION This part replaces 33410-27G00.

33410-27G02

$126.03

11

COIL ASSY, IGNITION REAR This part replaces 33420-27G00.

33420-27G03

$132.52

12

CLAMP

09403-10319

Unavailable

13

CLAMP (L:165)

09407-18402

$2.19

14

CLAMP (L:45)

09404-06429

$1.83

15

BOLT

01547-0625A

$2.01

16

CAP ASSY,SPARK PLUG | FOR CENTER

33510-17G00

$33.46

17

CAP, SPARK PLUG | FOR SIDE

33510-20E00

$34.60

18

SEAL, SPARK PLUG CAP | FOR CENTER

33541-23E10

$6.54

19

SEAL, SPARK PLUG CAP | FOR SIDE

33541-47D00

$7.83

20

SEAL,HIGH TENSION CORD CTR | FOR CENTER

33542-17G01

$8.12

21

SEAL,HIGH TENSION CORD (SIDE) | FOR SIDE

33542-38B00

$4.34

22

CONTROL UNIT, FI

32920-11J20

Unavailable

23

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88
