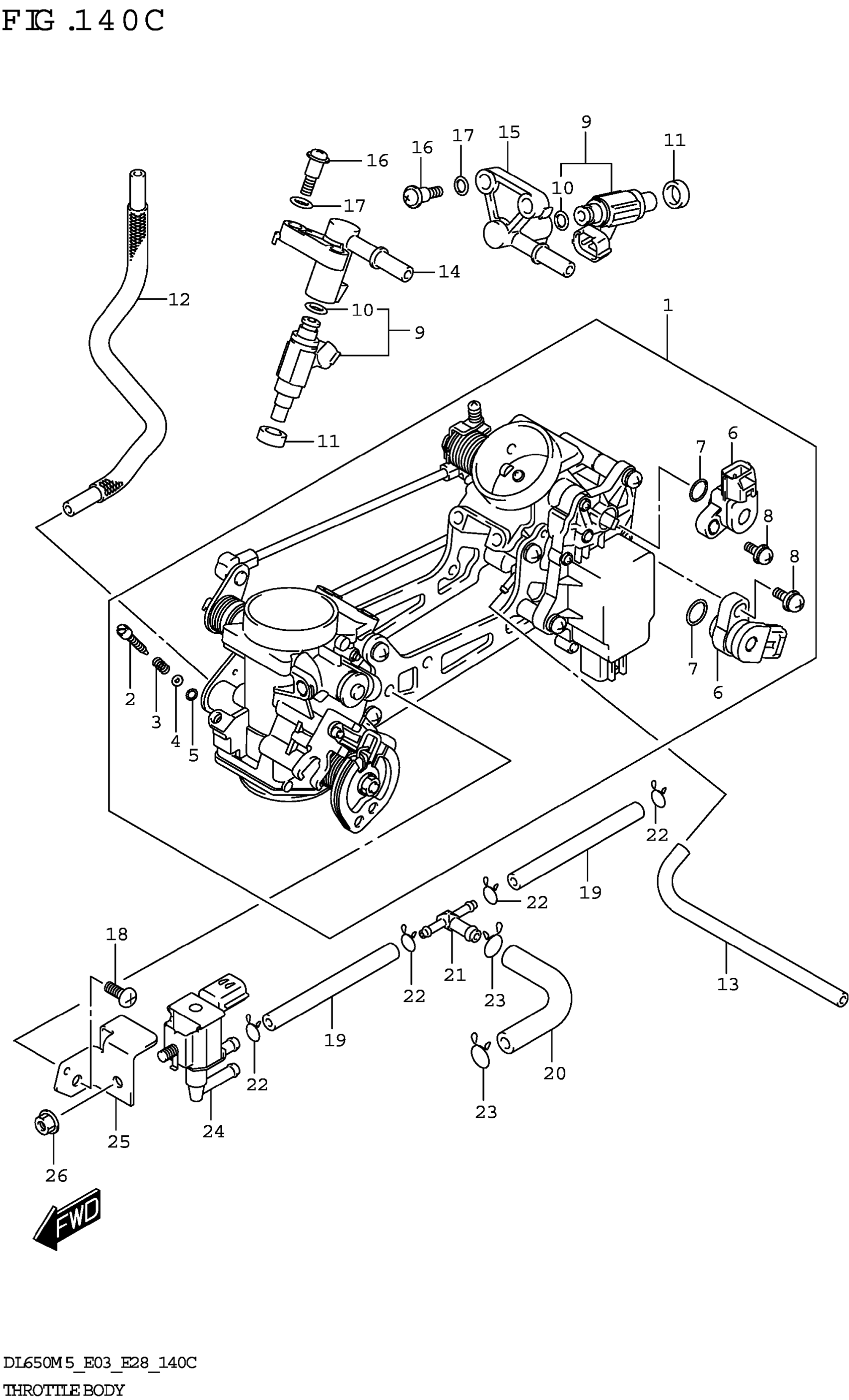

Suzuki DL650AM5 (2025) THROTTLE BODY (E33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-28K10

Unavailable

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING

13295-29901

$4.34

6

.SENSOR

13580-27G21

$145.53

7

.O-RING

13575-29G01

$3.15

8

.SCREW

13605-02F00

$3.71

9

INJECTOR ASSY

15710-11J00

$271.53

10

.O-RING

15717-58B00

$9.95

11

SEAL

15722-29G00

$10.93

12

HOSE

13683-28K01

$26.05

13

HOSE

13683-44H11

$18.20

14

DELIVERY PIPE

15731-11J00

Unavailable

15

DELIVERY PIPE

15732-11J00

Unavailable

16

SCREW

13601-11J00

$4.79

17

PACKING

13602-29G01

$2.43

18

SCREW

13602-06128

$2.96

19

HOSE

13681-06G40

Unavailable

20

HOSE

13683-44H30

Unavailable

21

NIPPLE

13685-04F10

$11.07

22

CLIP This part replaces 13671-12C00.

09401-06101

$2.03

23

CLIP

09401-10401

$1.49

24

VALVE,CANISTER PURGE

18117-52G10

$151.17

25

BRACKET

18119-44H00

Unavailable

26

NUT (6X12)

08316-1006A

$2.19
